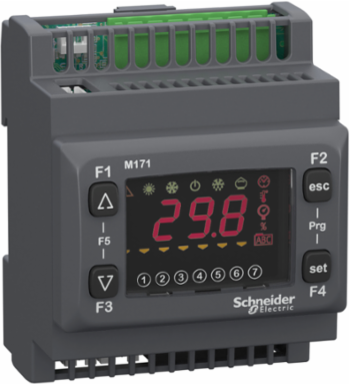

Schneider Electric TM171ODM22R Modicon M171/M172 HVAC Controller, 22 I/O, IP20, 0.164 kg
- MPN: TM171ODM22R
- PPN: SCH-TM171ODM22R
CAD
$287.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 74mm (width) x 76mm (depth) x 32mm (height). It weighs 0.164kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy, Sweden
Depth76 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- 6 LEDs (red), 5 LEDs (green), 7 LEDs (amber) for programmable
- Sensor Power Supply
- 12-12 V DC 85 mA, 5-5 V DC 20 mA
- [Us] Rated Supply Voltage
- 12...24 V +/- 10 % AC, 24 V +/- 10 % DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1115051918043258, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.004696289541949586, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 166 kg CO2 eq., 165.7967990445545
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Contacts Usage
- volt-free contacts
- Mounting Support
- flush mounting
- Power Consumption In W
- 4 W
- Product Or Component Type
- controller
- Range Of Product
- Modicon M171/M172
- Returnability
- No
- Sustainable Packaging
- Yes
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 350.4
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 74 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Number Of Port1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link)
Certificate AgencyCSA, EAC, CE, cURus
Input/Output Number5 analog output, 6 digital input, 5 analog input, 6 digital output
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.5216254315182522
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.41812723959728
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1710004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Display Typefour 7-segment display units
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock at -20-55 °C
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint177 kg CO2 eq.
UpgradeabilityYes
Pep CodeENVPEP1710004EN
Pep Verification Date2025-11-25
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]Electricity origin
Height Nominal32 mm
Number Of Inputs/Outputs22
Package Weight(Lbs)236.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C UL 60730-1, -20-55 °C UL 60730-1-20-55 °C UL 60730-1, -20-55 °C UL 60730-1
- Directives
- 2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1710004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2025-11-25
- Psr Version
- No PSR
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint176.8527531970163
Environmental DisclosureENVPEP1710004EN
Ip Degree Of ProtectionIP20
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1710004EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- controller
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 2 PWM/PPM, 3 voltage 0...10 V
- Discrete Output Current
- 2 A relay
Discrete Output Number1 open collector, 3 relay outputs SPST with same common, 2 relay outputs SPST with independent common
Input Attributes
- Analogue Input Number
- 2 configurable, 3 analog input NTC
- Discrete Input Logic
- sink or source (positive/negative)
Analogue Input Typevoltage 0...5 V ratiometric), voltage 0...10 V, NTC temperature probe - 50...100 °C 0.1 °C, current 0...20 mA/4...20 mA, voltage 0...1 V
Discrete Input Number6
