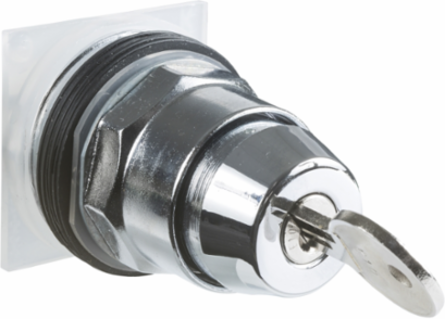

Schneider Electric 9001KS11K1H5 Harmony Selector Switch, 30mm Key E10, 2 Positions, Metal, Stay Put
- MPN: 9001KS11K1H5
- UPC: 785901909446
- PPN: SCH-9001KS11K1H5
CAD
$117.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This key operated selector switch provides a versatile interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes Tha package dimensions are 5.33 cm (width) x 16.51 cm (length) x 5.84 cm (height) High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Mexico, United States
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operator Profile
- key switch, black key operated knob
- Certificate Agency
- CE, CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- metal
- Contacts Type And Composition
- 1 NO
- Key Number
- E10
- Mechanical Durability
- 0.5 Mcycles
- Operator Position Information
- 2 positions
- Product Or Component Type
- selector switch
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Connections - Terminals
- screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Package Weight(Lbs)
- 205 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Type Of Operatorstay put, maintained
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cam Profile5
Device Short NameK
Key Withdrawal Positionleft
Mounting Diameter30 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony 9001K
Sustainable PackagingYes
Pep CodeENVPEP2503027EN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/6/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
