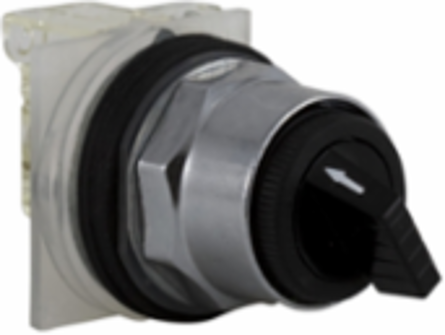

Schneider Electric 9001KS11BH1 Harmony Selector Switch, 30mm, Metal, Black, 2 Positions, Maintained
- MPN: 9001KS11BH1
- UPC: 785901384380
- PPN: SCH-9001KS11BH1
CAD
$123.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black standard handle knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions maintained operator and uses screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Type Of Operator
- stay put, maintained
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08097046505983335, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0011046677460343924, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- metal
- Contacts Type And Composition
- 1 C/O
- Mechanical Durability
- 0.5 Mcycles
- Operator Position Information
- 2 positions
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony 9001K
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Pep Code
- ENVPEP2503027EN
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Cap/Operator Or Lens Colour
- black
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509025
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3288435929098725
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.8168889954896263
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Cam Profile5
Device Short NameK
Mounting Diameter30 mm
Operator Profilestandard handleblack standard knob
Product Or Component Typeselector switch
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %49
Connections - Terminalsscrew-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Package Weight(Lbs)149.686 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.2278077212053664
- Environmental Disclosure
- ENVPEP2503027EN
- Nema Degree Of Protection
- NEMA 3R/6/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-03-26
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
