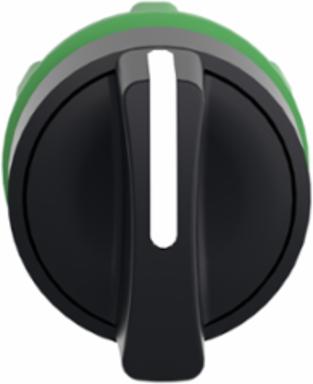

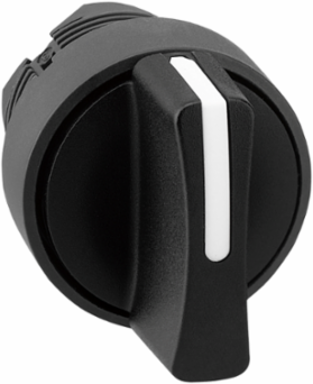

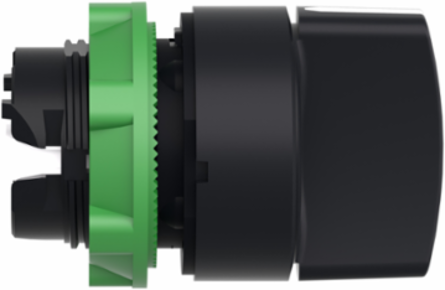

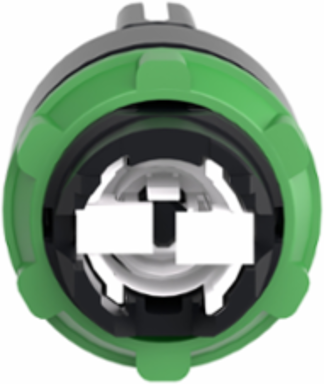

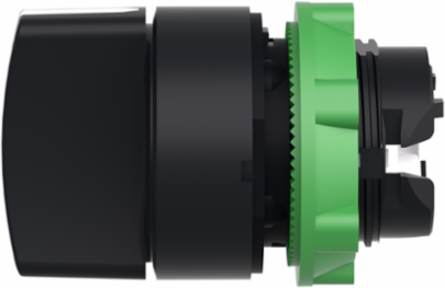

Schneider Electric ZB5AD8 Harmony XB5 Selector Switch Head, 22mm, 3 Positions, IP69K
- MPN: ZB5AD8
- PPN: SCH-ZB5AD8
CAD
$31.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This switch head with black standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
Features
- This switch head features a standard 22mm mounting diameter designed specifically for the Schneider Harmony XB5 plastic range, ensuring seamless retrofitting or new panel integration. It provides a strict mechanical fit into existing control stations without requiring custom punch-outs or specialized layout tools.
- The ZB5AD8 is a 3-position operator built with a momentary spring return that snaps back automatically from the right position to the center. This specialized configuration is ideal for manual override sequences, jog controls, or step-by-step state changes where an operator must deliberately hold the right-hand state to prevent accidental continuous machine cycles.
- The ZB5AD8 is an isolated configurable switch body (operator head only), meaning it requires a matching Harmony XB5 mounting collar (such as the ZB5AZ009) and specific electrical contact blocks (like the ZBE101 series) to form a fully functioning unit. This modular framework allows you to customize the underlying open or closed circuit combinations to fit complex automated logic loops while minimizing total inventory replacement costs.
- Constructed from dark gray industrial-grade plastic, the bezel provides exceptional structural stability, electrical insulation, and chemical resilience over a massive operational span of 1,000,000 mechanical durability cycles. This specialized polymer resists cracking and degradation when exposed to common industrial solvents, heavy vibrations up to 5 gn, and severe thermal environments ranging from -40C to 70C (-40F to 158F).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico, United States |
|---|
Physical Attributes
| Cad Overall Depth | 46 mm |
|---|---|
| Cad Overall Width | 29 mm |
| Cad Overall Height | 29 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Operator Pos Information | 3 positions +/- 45° |
| Certificate Agency | DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0298632279 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.1157624926 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308008EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 60 % |
| Bezel Material | dark grey plastic |
| Device Short Name | ZB5 |
| Head Type | standard |
| Mechanical Durability | 1000000 cycles |
| Operator Position Information | 3 positions +/- 45° |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Or Component Type | head for selector switch |
| Range Of Product | Harmony XB5 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Type Of Operator | right to centre spring return |
| Type Of Operator 3 Type Of Operator | spring return |
| Pep Code | ENVPEP2308008EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Cap/Operator Or Lens Colour | black |
| Package Weight(Lbs) | 24.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Composition Code | C3 6 single front mountingC4 6 single and double front mountingC5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting |
| Operator Profile 1 Cap Operator Or Lens Color | black |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0022230087, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0057890891, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 28 % |
| Compatibility Code | ZB5 |
| Group Of Product | non illuminated |
| Main Group | selector switch |
| Mounting Diameter | 22 mm |
| Operator Profile | black standard handle |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Station Name | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| Total Lifecycle Carbon Footprint | 0.2 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Type Of Operator 3 Return | right to centre |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Recyclability Potential In % | 23 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP67 IEC 60529, IP69 IEC 60529, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 60 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.1536378183 |
| Environmental Disclosure | ENVPEP2308008EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308008EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | head for selector switch |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC000222 |
|---|
| ETIM 9 | EC000222 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
