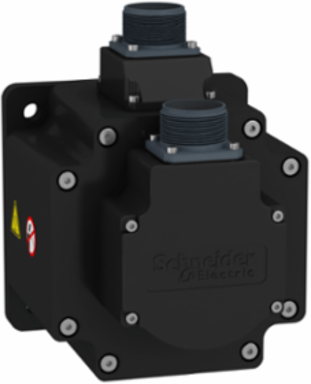

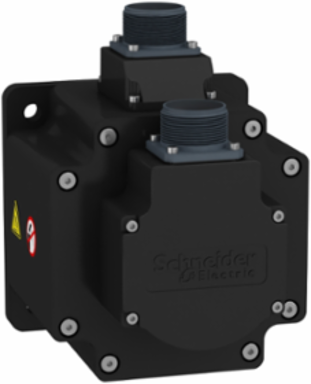

Schneider Electric BCH2MM1023CF6C Servo Motor, 130mm, 1000W, 8.2kg, Brake and Key Included

MPN: BCH2MM1023CF6C
PPN: SCH-BCH2MM1023CF6C

$2235.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric BCH2MM1023CF6C Servo Motor is engineered for high-performance applications in automation and motion control, offering robust functionality within a compact 130mm design. With a powerful output of 1000W, this motor is capable of handling demanding tasks while ensuring reliability and precision. It comes equipped with both a brake and key, facilitating easy integration into various systems. Perfect for enhancing efficiency in automated environments, this servo motor stands out as a dependable choice for professionals seeking quality and performance in their motion control solutions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Switzerland, China, France, Mexico, Sweden

Physical Attributes

Key Width	8 mm
Shaft Length	55 mm

Motor Flange Size	130 mm

Complementary Attributes

Maximum Current Irms	19.64 A LXM28... 1 kW, 220 V, 20.0 A
Maximum Ambient Air Temperature For Operation	40.0 °C
Maximum Mechanical Speed	3000 rpm
Maximum Permanent Current	6.29 A
Minimum Ambient Air Temperature For Operation	0.0 °C

Line Rated Current	6.29 A
Maximum Axial Force Fa	200 N
Maximum Operational Altitude	1000.0 m
Maximum Radial Force Fr	670 N 2000 rpm
Minimum Operational Altitude	0.0 m

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Coefficient 1 1	-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5	-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal Speed	LXM28... 7 A, 220 V, three phase LXM26D 7 A, 220 V, single phase, LXM26D 7 A, 220 V, three phase, LXM28... 7 A, 220 V, single phase, 2000 rpm
Peak Stall Torque	14.3 N.m LXM28... 7 A, 220 V, three phase14.3 N.m LXM26D 7 A, 220 V, single phase, 14.3 N.m LXM26D 7 A, 220 V, three phase, 14.3 N.m LXM28... 7 A, 220 V, single phase
Saturation Coefficient	-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1 kg CO2 eq., 1.0052870852
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	54 kg CO2 eq., 53.6458116592
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1504002EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2444
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Centring Collar Diameter	110 mm
Coefficient 1 2	5.62440546E-19 N.m/rpm²
Coefficient 1 6	3.2E-34 N.m/rpm6
Coefficient 2 1	8.75000000000026E-06 N.m/rpm
Continuous Stall Current	5.77 A
Derating Temperature Scale	40.0 °C
Device Short Name	BCH2
Feedback Type	20 bits single turn absolute encoder
Holding Torque	9.6 N.m built-in
Maximum Operational Altitude	1000.0 m
Minimum Operational Altitude	0.0 m
Motor Voltage Drop Coefficient	1
Mounting Support	asian standard flange
Number Of Motor Poles	5.0
Number Of Mounting Holes	4
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium 28
Rotor Inertia	6.91 kg.cm²
Shaft End	keyed
Software Version	EIME v5.6.0.1
Stator Inductance	7.14 mH 20 °C
Sustainable Packaging	No
Temperature Magnet Hot	100 °C
Torque Constant	0.83 N.m/A 20 °C
Type Of Cooling	natural convection
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Length Total	183 mm
Accuracy Error [Angular]	0.044 °
Distance Shaft Shoulder-flange	8 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8501524000

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3	-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque	4.77 N.m LXM28 7 A, 220 V, three phase4.77 N.m LXM26D 7 A, 220 V, single phase, 4.77 N.m LXM26D 7 A, 220 V, three phase, 4.77 N.m LXM28 7 A, 220 V, single phase
Nominal Torque	4.77 N.m LXM28... 7 A, 220 V, three phase, 4.77 N.m half speed, 4.77 N.m full speed, 4.77 N.m LXM26D 7 A, 220 V, single phase, 4.77 N.m LXM26D 7 A, 220 V, three phase, 4.77 N.m LXM28... 7 A, 220 V, single phase
Phase	three phase, single phase
Carbon Footprint Of The Distribution Phase [A4]	1.207670852, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0596563587, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	4 118 kg CO2 eq., 4118.3964756879
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Motion - drive & motor
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Circle Diameter Of The Mounting Holes	145 mm
Coefficient 1 4	7.11E-26 N.m/rpm4
Coefficient 2 0	0 N.m
Continuous Power	1000 W
Derating Altitude Start	1000.0 m
Derating Temperature Start	40.0 °C
Electrical Connection	connector MIL
Holding Brake	with
Inertia	6.9 kg.cm² of brake6.91 kg.cm² of motor
Minimum Ambient Air Temperature For Operation	0.0 °C
Motor Figures	230.0 V
Mounting Holes Diameter	9.2 mm
Network Number Of Phases	1
Number Of Motor Stacks	1
Peak Nominal Torque	14.3 N.m
Product Or Component Type	servo motor
Returnability	No
Shaft Diameter	22 mm
Sizing Reference	BCH2
Stator Electrical Time Constant	11.94 ms 20 °C
Stator Resistance	0.62 Ohm 20 °C
Temperature Copper Hot	135 °C
Temperature Magnet Rt	20 °C
Total Lifecycle Carbon Footprint	4 174 kg CO2 eq.
Pep Code	ENVPEP1504002EN
Pep Verification Date	2020-11-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	8405.804
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage	220 V
Brake Pull-in Power	19.7 W
Maximum [In] Rated Current	6.29 A
Package Weight(Lbs)	9.36 kg
Warranty (In Months)	18

Environment Attributes Main

Product Compatibility	LXM28... servo drive 1 kW, 220 V, three phaseLXM26D servo drive 1 kW, 220 V, single phase, LXM26D servo drive 1 kW, 220 V, three phase, LXM28... servo drive 1 kW, 220 V, single phase
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	0-40 °C
Environmental Disclosure	ENVPEP1504002EN
Ip Degree Of Protection	IP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2020-11-01
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	4174.3149016431
Circularity Profile	ENVEOLI1504002EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1504002EN
Pcr Version	PCR-ed3-EN-2015 04 02

General Attributes

Phase	three phase, single phase
Range Of Product	Lexium 28

Product Or Component Type	servo motor

ETIM

ETIM 8	EC001851

ETIM 9	EC001851

Output Attributes

Nominal Output Power	1000 W LXM28... 7 A, 220 V, three phase1000 W LXM26D 7 A, 220 V, single phase, 1000 W LXM26D 7 A, 220 V, three phase, 1000 W LXM28... 7 A, 220 V, single phase
