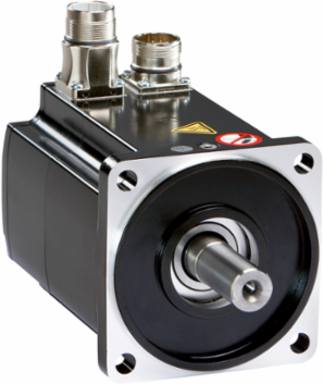

Schneider Electric BMH2053P01A2A Lexium 32 Servo Motor 84 Nm 3800 RPM IP54
- MPN: BMH2053P01A2A
- PPN: SCH-BMH2053P01A2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric BMH2053P01A2A Lexium 32 Servo Motor is engineered for high-performance applications, featuring an impressive torque of 84 Nm and a maximum speed of 3800 RPM. Designed for rigorous environments, this motor complies with the IP54 protection standard, ensuring reliable operation even in challenging conditions. Ideal for automation and motion control tasks, it provides precision and efficiency, making it a crucial component for enhancing the performance and reliability of your systems. This servo motor exemplifies Schneider Electric's commitment to delivering robust and innovative solutions for industrial automation.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 6500 W
- Peak Stall Torque
- 232 N.m
- Nominal Speed
- 1200 rpm
- Maximum Current Irms
- 72 A
- Maximum Permanent Current
- 107.4 A
- Back Emf Constant
- 218 V/krpm 120 0C
- Phase
- Three phase
- Maximum Axial Force
- 0.2 x Radial Force
- Shaft Length
- 80 mm (3.15 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 215 mm (8.46 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Rotor Inertia
- 190 kg.cm
- Stator Inductance
- 6.9 mH 20 0C
- Cooling Type
- Natural convection
- Mounting Support
- International standard flange
- IP Rating
- IP54
- Eu RoHS Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Compliance
- Green Premium product, Mercury free, RoHS compliant
- Environmental Disclosure
- ENVPEP111049EN
- Weee
- Must be disposed following EU waste collection
- Product Type
- Servo motor
- Product Compatibility
- LXM32.D72N4 400-480 V three phase
- Second Shaft
- Without second shaft end
- Number of Motor Stacks
- 3
Continuous Stall Torque84 N.m
Nominal Torque52.2 N.m
Maximum Mechanical Speed3800 rpm
Continuous Stall Current25.2 A
Torque Constant3.5 N.m/A 120 0C
Voltage480 V
Maximum Radial Force4500 N @ 1000 rpm, 3570 N @ 2000 rpm, 3120 N @ 3000 rpm
Shaft Diameter38 mm (1.50 in)
Length489 mm (19.25 in)
Number of Motor Poles10
Mounting Holes Diameter14 mm (0.55 in)
Centring Collar Diameter180 mm (7.09 in)
Net Weight67 kg (147.71 lb)
Stator Resistance0.32 Ohm 20 0C
Stator Electrical Time Constant21.6 ms 20 0C
Feedback TypeSingle turn SinCos Hiperface
Electrical ConnectionRotatable right-angled connectors
RoHS Exemption InformationYes
China RoHS RegulationX
Pvc FreeYes
Reach RegulationContains Substances of Very High Concern above threshold
Device Short NameBMH
Range CompatibilityLexium 32
Holding BrakeWithout
Speed Feedback Resolution131072 points/turn
Warranty18 months
