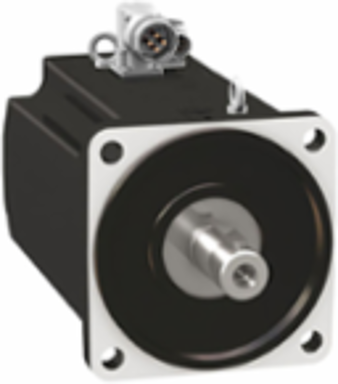

Schneider Electric BMH2053P21A2A Lexium 32 Servo Motor 84Nm 3800rpm 67kg IP65/IP67
- MPN: BMH2053P21A2A
- PPN: SCH-BMH2053P21A2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Lexium 32 Servo Motor is engineered for high-performance applications, offering a remarkable torque of 84 Nm and an impressive speed of 3800 rpm. Designed with an IP65/IP67 rating, this robust motor provides excellent protection against dust and water ingress, ensuring reliable operation even in demanding environments. As part of Schneider Electric’s esteemed range of automation and control solutions, it caters to the needs of both industrial and motion control applications, making it an essential component for advancing your automation systems with precision and efficiency.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 232 N.m
- Nominal Torque
- 52.2 N.m
- Nominal Speed
- 1200 rpm
- Maximum Current Irms
- 72 A
- Continuous Stall Current
- 25.2 A
- Torque Constant
- 3.5 N.m/A
- Stator Resistance
- 0.32 Ohm 20 °C
- Stator Electrical Time Constant
- 21.6 ms 20 °C
- Maximum Axial Force
- 0.2 x Radial Force
- Shaft Diameter
- 38 mm
- Motor Flange Size
- 205 mm
- Number of Motor Poles
- 10
- Mounting Holes Diameter
- 14 mm
- Centring Collar Diameter
- 180 mm
- Weight
- 67 kg
- Shaft End
- Smooth shaft
- Feedback Type
- Single turn SinCos Hiperface
- Product Type
- Servo motor
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Pvc Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Product Compatibility
- LXM32.D72N4 400...480 V three phase
- Second Shaft
- Without second shaft end
Continuous Stall Torque84 N.m
Nominal Output Power6500 W
Maximum Speed3800 rpm
Maximum Permanent Current107.4 A
Continuous Power9.6 W
Back Emf Constant218 V/krpm
Stator Inductance6.9 mH 20 °C
Maximum Radial Force4500 N at 1000 rpm, 3570 N at 2000 rpm, 3120 N at 3000 rpm
Length489 mm
Shaft Length80 mm
Number of Motor Stacks3
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm
Centring Collar Depth4 mm
Mounting SupportInternational standard flange
Electrical ConnectionRotatable right-angled connectors
IP RatingIP65 standard; IP67 with IP67 kit
Rohs Exemption InformationYes
Reach RegulationContains Substances of Very High Concern above threshold
WEEEMust be disposed per EU waste regulations
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Range CompatibilityLexium 32
Warranty18 months
