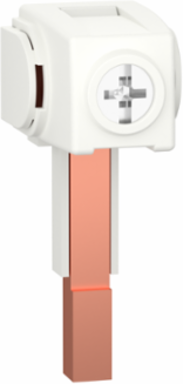

Schneider Electric A9XPCM04 Set of 4 Monoconnect Connectors 100A for 3P+N Comb Busbar
- MPN: A9XPCM04
- PPN: SCH-A9XPCM04
CAD
$43.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Acti9 Linergy FH monoconnect connector for Acti9 iC60 and Acti9 iK60 facilitates comb busbar power supply. It is a set of 4 devices. The Type of electric connection is PIN. The pin cross section is 16mm2. The cross section of the cable connector is 35mm2. The tightening torque is 4N.m. The color of the device is white RAL9003. The pollution degree is 3. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, France
Physical Attributes
- Color
- White RAL 9003)
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- LC, OM, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Distribution Type
- 2 L, 1 L, 3 L, N + 3 L, L + auxiliary
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 0627
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Comb Busbar And Distribution Block Compatibility
- monoconnect
- Market Segment
- small commercial
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- connector
- Range
- Acti9
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory / Separate Part Category
- connection accessory
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Range Of ProductiDPN Vigi, Acti9
Local Publishable Date2026-06-04
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Number Of Poles3P + N
Product NameLinergy FH
Quantity Per Setset of 4
ReturnabilityYes
Tightening Torque4-4 N.m
Certificate AgencyEN/IEC 61439-1
Connections - Terminalsscrew clamp terminals top connector 35-35 mm²
Package Weight(Lbs)62.000 g
Take-backNo
Environment Attributes Main
- Product Compatibility
- iSW switch disconnector, iDPN, iK60, iC60, iDPN Vigi, STI, iID, iID K, iSW-NA
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Silicon FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Range Of Product
- iDPN Vigi, Acti9
Product Or Component Typeconnector
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
