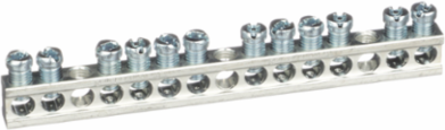

Square D PK12GTA Loadcentre Equipment Ground Bar Assembly, 12 Connectors, 119 mm Bar Length
- MPN: PK12GTA
- UPC: 785901026402
- PPN: SCH-PK12GTA
CAD
$30.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO® Circuit Breaker Loadcentres, PK12GTA, from Square D® are Underwriters Laboratories (UL) Listed and CSA certified panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
Features
- The PK12GTA is a premium equipment ground bar kit belonging to the Square D branch-circuit protection range. Rather than serving as an active power-distribution block, this hardware accessory is engineered as a centralized, low-resistance termination point for all branch-circuit equipment grounding conductors inside residential, commercial, and light industrial electrical panels.
- The bar features 12 individual terminal screw connectors arranged in a clean, space-efficient linear row. This 12-terminal configuration allows residential wiremen and panel builders to logically organize, track, and terminate numerous green or bare grounding wires, maintaining an uncluttered gutter area that speeds up municipal and provincial code compliance checks.
- The mechanical landing blocks feature dual-material certification, allowing the tight retention of both copper and aluminum grounding conductors. Each terminal port can securely accept a single 14 AWG to 4 AWG copper wire. For aluminum conductors, it anchors a 12 AWG to 4 AWG wire.
- The package arrives complete with the structural grounding bar, two dedicated self-tapping mounting screws, and an official self-adhesive equipment grounding terminal identification label. To prevent wire loose-joints and accommodate standard conductor thermal cycles under load, the terminal screws must be driven to a factory-certified tightening torque specification of 20 to 35 lb-in (depending on the specific wire gauge used).
Documentation & Downloads
Specifications
Additional
- Number of Connectors
- 12
- Tightening Torque
- 30 lb.in mounting screw; 20-35 lb.in by wire size

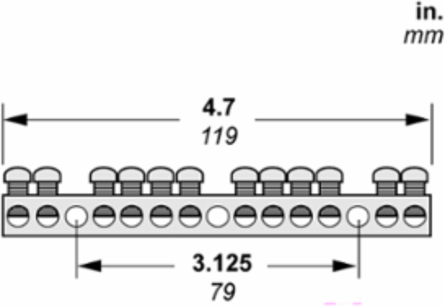

- Maximum Length of Segment
- 3.15 in (80 mm)
- Depth
- 0.312 in (7.92 mm)
- Warranty
- 18 months
- Range of Product
- QO
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Provided Equipment
- 2 screws
Wire SizeAWG 14...AWG 4 copper, AWG 12...AWG 4 aluminum

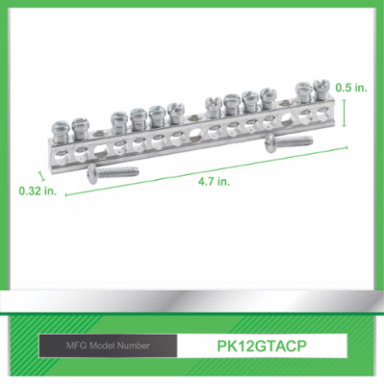

Bar Length4.69 in (119 mm)
Height0.437 in (11.10 mm)
Device MountingDirect mounting back of enclosure
Product Or Component Typebar
Circularity ProfileN/A
Sustainable Offer StatusGreen Premium product
Rohs Exemption InformationYes
Mercury FreeYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Country of OriginUS
