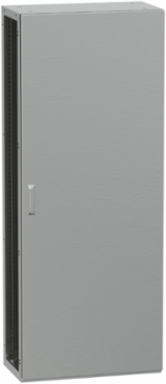

Schneider Electric NSYSFX20840 SFX 304L Stainless Steel Enclosure 2000mm x 800mm x 400mm, IP66, IK10

  • MPN: NSYSFX20840
  • PPN: SCH-NSYSFX20840
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
  • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This 304L stainless steel enclosure from Schneider Electric is designed for robust protection in demanding environments. Measuring 2000mm x 800mm x 400mm, it features an IP66 rating, ensuring that it is dust-tight and can withstand high-pressure water jets, making it ideal for outdoor applications or locations prone to moisture. With an IK10 impact resistance rating, this enclosure provides reliable defense against mechanical impacts, safeguarding your valuable equipment and ensuring uninterrupted operation in various industrial and commercial settings. It is an essential choice for those looking to enhance the durability and reliability of their automation and control systems.

    Documentation & Downloads

    Specifications

    Additional

    Standards
    IEC 62208, NEMA 4X
    IP Degree of Protection
    IP66 IEC 60529
    Weight
    90 kg
    Nominal Width
    800 mm (31.50 in)
    Door Type
    Plain
    Number of Doors
    1 Front face
    Mounting Plate Description
    Without mounting plate
    Accessibility For Operation
    Front, Side
    Surface Finish
    Enclosure Scotch-Brite brushed, handle painted
    Product CertificationsUL
    IK Degree of ProtectionIK10 IEC 62262
    Nominal Height2000 mm (78.74 in)
    Nominal Depth400 mm (15.75 in)
    Door Opening SideReversible 120
    Lock Type3 points lock, handle with 5 mm double-bar insert
    Type of Gland PlatePlain
    MaterialStructure and door stainless steel 304L, handle zamak, hinge stainless steel
