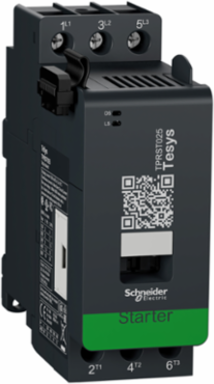

Schneider Electric TPRST025 TeSys Island Motor Starter 25A AC-3, 11kW, DOL Type

MPN: TPRST025
PPN: SCH-TPRST025
UNSPSC: 39121521

$537.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys island direct starter, 3 poles, 25A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 25A and motors up to 11kW@400V / 15hp@480V. It provides motor protection functions including thermal overload (setting 0.5-25A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Features

Contactless integrated upstream voltage presence detection (no wires)
Power and energy monitoring when connected with TPRVM voltage module
Manages motors and other electrical loads up to 65 A (AC-3) / 37 kW/40 hp
All adjustments and setting are digitized, no mechanical dials or dip switches
No control wiring necessary, simplifying assembly

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Depth	115 mm

Complementary Attributes

Maximum Horse Power Rating	7.5 hp at 240 V AC 60 Hz for 3 phase motors2 hp at 120 V AC 60 Hz for 1 phase motors3 hp at 240 V AC 60 Hz for 1 phase motors, 7.5 hp at 208 V AC 60 Hz for 3 phase motors15 hp at 480 V AC 60 Hz for 3 phase motors20 hp at 600 V AC 60 Hz for 3 phase motors
Ui Rated Insulation Voltage	690 V IEC 60947-4-1600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Maximum Operating Rate	3600 cyc/mn AC-3
Icw Rated Short Time Withstand Current	380 A 40 °C - 1 s240 A 40 °C - 10 s120 A 40 °C - 1 min50 A 40 °C - 10 min
Uc Control Circuit Voltage	24 V DC supplied by the bus coupler

Ue Rated Operational Voltage	<= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II<= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II
Irms Rated Making Capacity	450 A at 440 V conforming to IEC 60947
Rated Breaking Capacity	450 A at 440 V conforming to IEC 60947
Ie Rated Operational Current	25 A (at <50 °C) at <= 440 V AC-330 A (at <50 °C) at <= 440 V AC-1
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Current Consumption	160 mA contactor sealed, 160 mA contactor closing
Electromagnetic Compatibility	electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Local Signalling	1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
Motor Power Kw	5.5 kW at 230 V 50 Hz (AC-3)11 kW at 380...415 V 50 Hz (AC-3), 11 kW at 440 V 50 Hz (AC-3)15 kW at 500 V 50 Hz (AC-3), 15 kW at 690 V 50 Hz (AC-3)
Power Dissipation Per Pole	1.25 W AC-3 - Ith 25 A, 1.8 W AC-1 - Ith 30 A
Tightening Torque	2.5-2.5 N.m flat Ø 6 mm, 2.5-2.5 N.m Philips No 3
Connections Terminals	screw-clamp terminals 2 2.5-10 mm² 14 AWG...8 AWG)flexible without cable endscrew-clamp terminals 2 1.5-6 mm² 16 AWG...10 AWG)flexible with cable endscrew-clamp terminals 1 1.5-10 mm² 16 AWG...8 AWG)rigid, screw-clamp terminals 2 1.5-10 mm² 16 AWG...8 AWG)rigidscrew-clamp terminals 1 2.5-10 mm² 14 AWG...8 AWG)flexible without cable endscrew-clamp terminals 1 1.5-10 mm² 16 AWG...10 AWG)flexible with cable end
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	TPRST
Fire Resistance	960 °C UL 94850 °C IEC 60695-2-1650 °C IEC 60695-2-12
Motor Starter Type	direct on line
Number Of Poles	3P 3 NO
Power Dissipation In W	6.6 W at Ie AC-3
Product Name	TeSys island
Protective Treatment	TC
Reset	remotely or automatically
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable Packaging	Yes
Thermal Protection Adjustment Range	0.5-25 A
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	45 mm
Customs Code	8536504000
Halogen Free Status	Halogen free plastic parts product

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Electrical Durability	1.65 Mcycles 25 A AC-3 440 V, 2 Mcycles 30 A AC-1 440 V
Function Available	upstream voltage presence detection, electrical line and load protection, power and energy monitoring when connected with TPRVM voltage module
Metering Type	time device ON, time device switch ON, number of faults, number of switching cycles, number of device power cycles, average current Iavg, average voltage Vavg, max current Imax, max voltage Vmaxactive and reactive power with voltage module, active and reactive energy with voltage module, true power factor with voltage module
Operating Time	< 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening< 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening
Protection Type	thermal overload protection, motor overheat, overcurrent, undercurrent, jam, long start, stall, rapid cycle lockout, rapid restart lockout, phase sequence, phase reversal, phase loss, phase unbalance, ground current
Utilisation Category	AC-1, AC-2, AC-3, AC-4, AC-3e
Certificate Agency	CCC, UL, CSA, EAC
Local Publishable Date	2026-06-27
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1904009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Impedance	2 mOhm - Ith 30 A 50 Hz
Energy Efficiency Optimized	False
Mechanical Durability	30 Mcycles
Mounting Mode	horizontal and vertical 35 mm symmetrical DIN rail)
Overvoltage Category	III for Ue <= 480 VII for Ue <= 690 V
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	motor starter
Range	TeSys
Returnability	Yes
Shock Resistance	15 gn 11 ms) IEC 60068-2-27
Thermal Overload Class	class 5…30
Vibration Resistance	1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6
Height Nominal	121 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	30 A (at 50 °C)
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating50-60 °C with current derating
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1904009EN
Halogen Content Performance	Halogen free plastic parts product
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1904009EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1904009EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	TPRBC bus couplerTPRVM voltage interface module
Relative Humidity	5-95 %
