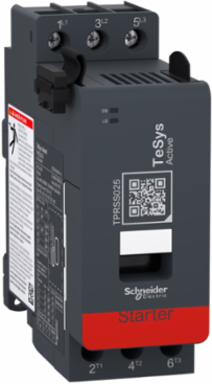

Schneider Electric TPRSS025 TeSys Island Motor Starter 30A AC-1, 25A AC-3, 11kW, DOL Type
- MPN: TPRSS025
- PPN: SCH-TPRSS025
CAD
$618.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys island direct SIL starter, 3 poles, 25A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 25A and motors up to 11kW@400V / 15hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.5-25A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Depth115 mm
Complementary Attributes
- Maximum Horse Power Rating
- 7.5 hp at 240 V AC 60 Hz for 3 phase motors2 hp at 120 V AC 60 Hz for 1 phase motors, 3 hp at 240 V AC 60 Hz for 1 phase motors, 7.5 hp at 208 V AC 60 Hz for 3 phase motors, 15 hp at 480 V AC 60 Hz for 3 phase motors, 20 hp at 600 V AC 60 Hz for 3 phase motors
- Maximum Operating Rate
- 3600 cyc/mn AC-3
Irms Rated Making Capacity450 A at 440 V conforming to IEC 60947
Rated Breaking Capacity450 A at 440 V conforming to IEC 60947
Important Information Attributes
- Current Consumption
- 160 mA contactor sealed, 160 mA contactor closing
- Electromagnetic Compatibility
- electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
- Function Available
- upstream voltage presence detection, electrical line and load protection, power and energy monitoring when connected with TPRVM voltage module, safe stop function available when connected with a TPRSM module
- Metering Type
- time device ON, time device switch ON, number of faults, number of switching cycles, number of device power cycles, average current Iavg, average voltage Vavg, max current Imax, max voltage Vmax, active and reactive power with voltage module, active and reactive energy with voltage module, true power factor with voltage module
- Operating Time
- < 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening< 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening
- Power Dissipation Per Pole
- 1.25 W AC-3 - Ith 25 A, 1.8 W AC-1 - Ith 30 A
- Safety Function
- safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module, safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Utilisation Category
- AC-1, AC-2, AC-3, AC-4, AC-3e
- Certificate Agency
- CCC, EAC, UL, CSA
- [Ie] Rated Operational Current
- 25 A (at <50 °C) at <= 440 V AC-3, 30 A (at <50 °C) at <= 440 V AC-1
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- TPRSS
- Mechanical Durability
- 30 Mcycles
- Mounting Mode
- horizontal and vertical 35 mm symmetrical DIN rail)
- Power Dissipation In W
- 6.6 W at Ie AC-3
- Product Name
- TeSys island
- Protective Treatment
- TC
- Reset
- remotely or automatically
- Shock Resistance
- 15 gn 11 ms) IEC 60068-2-27
- Thermal Overload Class
- class 5…30
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 121 mm
- [Ith] Conventional Free Air Thermal Current
- 30 A (at 50 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Electrical Durability1.65 Mcycles 25 A AC-3 440 V, 2 Mcycles 30 A AC-1 440 V
Fire Resistance960 °C UL 94, 850 °C IEC 60695-2-1, 650 °C IEC 60695-2-12
Local Signalling1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
Motor Power Kw5.5 kW at 230 V 50 Hz (AC-3), 11 kW at 380...415 V 50 Hz (AC-3), 11 kW at 440 V 50 Hz (AC-3), 15 kW at 500 V 50 Hz (AC-3), 15 kW at 690 V 50 Hz (AC-3)
Overvoltage CategoryIII for Ue <= 480 V, II for Ue <= 690 V
Protection Typethermal overload protection, motor overheat, overcurrent, undercurrent, jam, long start, stall, rapid cycle lockout, phase sequence, rapid restart lockout, phase reversal, phase loss, phase unbalance, ground current
Safety LevelSIL 2 conforming to IEC 61508 in single channel system architecture, SILCL 2 conforming to IEC 62061 in single channel system architecture, PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
Tightening Torque2.5-2.5 N.m flat Ø 6 mm, 2.5-2.5 N.m Philips No 3
Vibration Resistance1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6, 1 gn 13-200 Hz) IEC 60068-2-6
[Icw] Rated Short-time Withstand Current380 A 40 °C - 1 s, 240 A 40 °C - 10 s, 120 A 40 °C - 1 min, 50 A 40 °C - 10 min
[Ue] Rated Operational Voltage<= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II<= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II
Connections - Terminalsscrew-clamp terminals 2 2.5-10 mm² AWG 14...AWG 8)flexible without cable end, screw-clamp terminals 2 1.5-6 mm² AWG 16...AWG 10)flexible with cable endscrew-clamp terminals 1 1.5-10 mm² AWG 16...AWG 8)rigid, screw-clamp terminals 2 1.5-10 mm² AWG 16...AWG 8)rigid, screw-clamp terminals 1 2.5-10 mm² AWG 14...AWG 8)flexible without cable end, screw-clamp terminals 1 1.5-10 mm² AWG 16...AWG 10)flexible with cable end
Local Publishable Date2025-02-26
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1904009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1911
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Impedance2 mOhm - Ith 30 A 50 Hz
Energy Efficiency OptimizedFalse
Motor Starter Typedirect on line
Number Of Poles3P 3 NO
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component TypeSIL motor starter
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Thermal Protection Adjustment Range0.5-25 A
Pep CodeENVPEP1904009EN
Width Nominal45 mm
[Uc] Control Circuit Voltage24 V DC supplied by the bus coupler
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)772.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating, 50-60 °C with current derating
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1904009EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1904009EN
Product CompatibilityTPRBC bus coupler, TPRVM voltage interface module, TPRSM SIL interface module
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1904009EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude0...6561.68 ft (0...2000 m) without derating
Packaging Without Single Use PlasticYes
Relative Humidity5-95 %
General Attributes
- Product Or Component Type
- SIL motor starter
ETIM
- ETIM 8
- EC001605
ETIM 9EC001605
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- direct starter connected to an automation controller through a bus coupler, operational only when connected to a bus coupler
