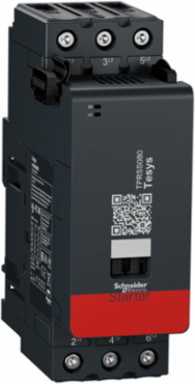

Schneider Electric TPRSS080 TeSys Island SIL Motor Starter 80A AC-1, 66A AC-3, 37kW, DOL Type
- MPN: TPRSS080
- PPN: SCH-TPRSS080
CAD
$1440.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys island direct SIL starter, 3 poles, 80A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth125 mm
Complementary Attributes
- Maximum Horse Power Rating
- 20 hp at 240 V AC 60 Hz for 3 phase motors5 hp at 120 V AC 60 Hz for 1 phase motors, 10 hp at 240 V AC 60 Hz for 1 phase motors, 20 hp at 208 V AC 60 Hz for 3 phase motors, 40 hp at 480 V AC 60 Hz for 3 phase motors, 50 hp at 600 V AC 60 Hz for 3 phase motors
- Maximum Operating Rate
- 3600 cyc/mn AC-3
Irms Rated Making Capacity1000 A at 440 V conforming to IEC 60947
Rated Breaking Capacity1000 A at 440 V conforming to IEC 60947
Important Information Attributes
- Current Consumption
- 80 mA contactor sealed, 500 mA contactor closing
- Electromagnetic Compatibility
- electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
- Function Available
- upstream voltage presence detection, electrical line and load protection, power and energy monitoring when connected with TPRVM voltage module, safe stop function available when connected with a TPRSM module
- Metering Type
- time device ON, time device switch ON, number of faults, number of switching cycles, number of device power cycles, average current Iavg, average voltage Vavg, max current Imax, max voltage Vmax, active and reactive power with voltage module, active and reactive energy with voltage module, true power factor with voltage module
- Operating Time
- < 80 ms closing, < 80 ms closing, < 80 ms opening, < 80 ms opening< 80 ms closing, < 80 ms closing, < 80 ms opening
- Protection Type
- thermal overload protection, motor overheat, overcurrent, undercurrent, jam, long start, stall, rapid cycle lockout, phase sequence, rapid restart lockout, phase loss, phase reversal, phase unbalance, ground current
- Safety Level
- SIL 2 conforming to IEC 61508 in single channel system architecture, SILCL 2 conforming to IEC 62061 in single channel system architecture, PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
- Tightening Torque
- 5-5 N.m 1-25 mm² hexagonal 4 mm, 8-8 N.m 25-35 mm² hexagonal 4 mm
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6, 1 gn 13-200 Hz) IEC 60068-2-6
- [Icw] Rated Short-time Withstand Current
- 900 A 40 °C - 1 s, 520 A 40 °C - 10 s, 260 A 40 °C - 1 min, 110 A 40 °C - 10 min
- [Ue] Rated Operational Voltage
- <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz<= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz
- Connections - Terminals
- EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible without cable end, EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible with cable endEverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)rigid, EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)rigid, EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible without cable end, EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible with cable end
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1904009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Impedance
- 1.5 mOhm - Ith 80 A 50 Hz
- Energy Efficiency Optimized
- False
- Motor Starter Type
- direct on line
- Number Of Poles
- 3P 3 NO
- Power Dissipation In W
- 21.4 W at Ie AC-3
- Product Name
- TeSys island
- Protective Treatment
- TC
- Reset
- remotely or automatically
- Shock Resistance
- 15 gn 11 ms) IEC 60068-2-27
- Thermal Overload Class
- class 5…30
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 167 mm
- [Ith] Conventional Free Air Thermal Current
- 80 A (at 50 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Electrical Durability0.75 Mcycles 66 A AC-3 440 V, 0.5 Mcycles 80 A AC-1 440 V
Fire Resistance960 °C UL 94, 850 °C IEC 60695-2-1, 650 °C IEC 60695-2-12
Local Signalling1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
Motor Power Kw18.5 kW at 230 V 50 Hz (AC-3), 37 kW at 380...415 V 50 Hz (AC-3), 37 kW at 440 V 50 Hz (AC-3), 37 kW at 500 V 50 Hz (AC-3), 37 kW at 690 V 50 Hz (AC-3)
Power Dissipation Per Pole6.5 W AC-3, 9.6 W AC-1
Safety Functionsafe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module, safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Utilisation CategoryAC-1, AC-2, AC-3, AC-4, AC-3e
Certificate AgencyCSA, CCC, UL, EAC
[Ie] Rated Operational Current66 A (at <50 °C) at <= 440 V AC-3, 80 A (at <50 °C) at <= 440 V AC-1
[Ui] Rated Insulation Voltage690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Device Short NameTPRSS
Mechanical Durability6 Mcycles
Mounting Modehorizontal and vertical 35 mm symmetrical DIN rail)
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component TypeSIL motor starter
RangeTeSys
ReturnabilityNo
Sustainable PackagingYes
Thermal Protection Adjustment Range4-80 A
Pep CodeENVPEP1904009EN
Width Nominal55 mm
[Uc] Control Circuit Voltage24 V DC supplied by the bus coupler
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)1.320 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating, 50-60 °C with current derating
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1904009EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1904009EN
Product CompatibilityTPRBC bus coupler, TPRVM voltage interface module, TPRSM SIL interface module
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1904009EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude0...6561.68 ft (0...2000 m) without derating
Packaging Without Single Use PlasticYes
Relative Humidity5-95 %
General Attributes
- Product Or Component Type
- SIL motor starter
ETIM
- ETIM 8
- EC001605
ETIM 9EC001605
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- direct starter connected to an automation controller through a bus coupler, operational only when connected to a bus coupler
