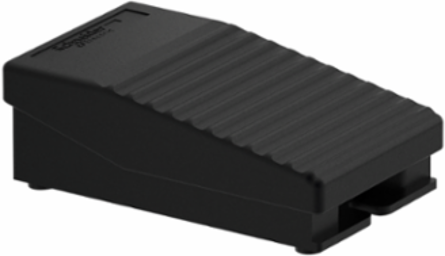

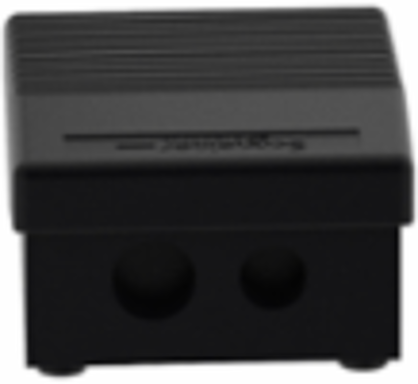

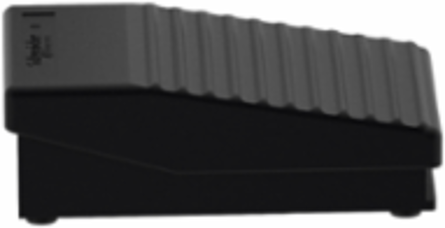

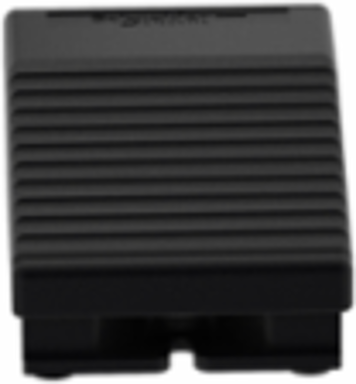

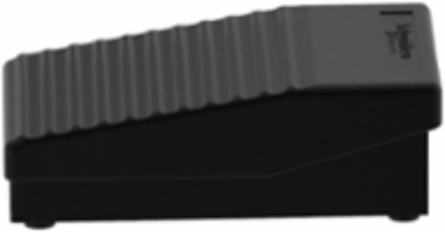

Schneider Electric XPEA110 Harmony XPE Plastic Foot Switch, IP43, Single Step, 1 NC + 1 NO Contacts
- MPN: XPEA110
- PPN: SCH-XPEA110
CAD
$266.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XPE consists of a single step black plastic safety footswitch. It has 1 x NC + 1 x NO contacts. It preserves the ergonomy of your machines, while ensuring their compliance with the latest safety standards. It provides long life in harsh conditions thanks to its resistance to hydraulic oil and various greases.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XPE
- Material
- plastic
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- 1 step
- Device Short Name
- XPEA
Product Or Component Typefoot switch
Trigger Mechanismwithout trigger mechanism
Colourblack
Foot Switch Typesingle foot switch
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
- Net Weight
- 0.275 kg
- [Ie] Rated Operational Current
- 3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
- Cable Entry
- 1 plain hole for M20 cable gland || 1 plain hole for M16 cable gland
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Positive Openingwith IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Connections - Terminalsscrew clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Mechanical Durability2000000 cycles
Rated Operational Power In W10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 25 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP43 IEC 60529
- Overvoltage Category
- class II IEC 61140 || class II NF C 20-030
StandardsIEC 60947-5-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071104EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
