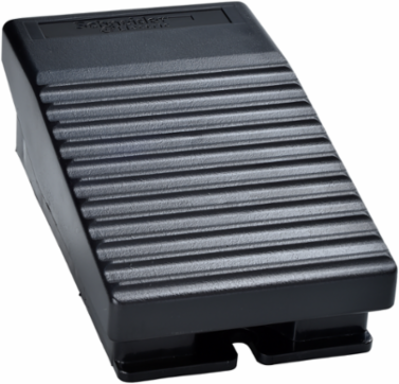

Schneider Electric XPEA111 Harmony XPE Single Foot Switch, 1 Step, 2 Contacts 1NC+NO, IP43

MPN: XPEA111
PPN: SCH-XPEA111

$301.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Harmony XPE Single Foot Switch by Schneider Electric is engineered for seamless automation and control applications where user safety and convenience are paramount. Featuring a simple one-step operation, this foot switch includes two contacts, comprising one normally closed (NC) and one normally open (NO), facilitating reliable performance in various setups. Designed to withstand the rigors of industrial environments, it boasts an IP43 rating, ensuring resistance against dust and water splashes, making it an ideal choice for enhancing safety in various operational contexts. Whether you're looking to streamline processes or enable hands-free control, this robust foot switch is a practical addition to your safety and connectivity solutions.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Harmony XPE
Material	plastic
Contacts Type And Composition	2 NC + NO
Contact Operation	1 step
Device Short Name	XPEA

Product Or Component Type	foot switch
Trigger Mechanism	without trigger mechanism
Colour	black
Foot Switch Type	single foot switch

Complementary

Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1 \|\| 10 A cartridge fuse gG VDE 0660-200
Net Weight	0.295 kg
[Ie] Rated Operational Current	3 A, 240 V, AC-15, A300 \|\| 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
[Ui] Rated Insulation Voltage	500 V 3)IEC 60947-1 \|\| 500 V 3)NF C 20-040 group C \|\| 500 V 3)VDE 0110 group C \|\| 300 VUL 508 \|\| 300 VCSA C22.2 No 14
Cable Entry	1 plain hole for M20 cable gland \|\| 1 plain hole for M16 cable gland
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3 \|\| 25 MOhm NF C 93-050 method A

Positive Opening	with IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminal, <= 1 x 2.5 mm² with or without cable end \|\| screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Mechanical Durability	2000000 cycles
Rated Operational Power In W	10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C \|\| 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C \|\| 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C

Environment

Ambient Air Temperature For Operation	-25-55 °C
Shock Resistance	25 gn IEC 60068-2-27
Ip Degree Of Protection	IP43 IEC 60529
Overvoltage Category	class II IEC 61140 \|\| class II NF C 20-030

Standards	IEC 60947-5-1
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TH

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP071104EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile	N/A
