Bryant

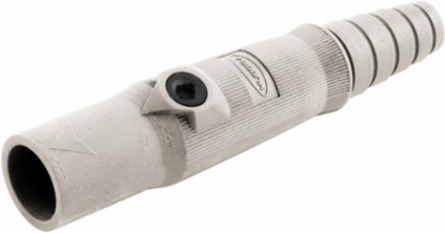

Bryant HBL15MW 150 Amp Male Plug, White, 600V AC, Insulgrip Housing

150 Amp Male Plug, White, 600V AC, Insulgrip Housing
  • MPN: HBL15MW
  • UPC: 783585458335
  • PPN: HBL-HBL15MW
  • UNSPSC: 39121402

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$43.58/ EA

Description

Single Pole Products, Male Plug, 150 Amp Series, White

Features

  • Insulgrip® Style Housing for Superior Gripping
  • Non-Conductive Retaining Screw locks contacts in place
  • Large Raised Alignment Arrow aids in the mating of devices

Specifications

Specifications

Country of Origin
China
Width
1.980 in
Performance
Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG
Color
White
Type
Plugs
Style
Male
Freight Class Code
06168002
Image Actual Or Representative
A
Series
15 Series
BOX SIZE
5.200x9.700x9.800 (in)
Carton - Number of Sub Packs
25
Carton - SCC-14 Next Lower Level Sub Pack
00783585458335
Case Weight
4.750 lb.
Pallet Height
46.800 in
Pallet Weight
855.000 lb.
Current / Amperage Rating150 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating150 A
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Voltage Rating Description600V AC/DC
Description - InvoiceSINGLE POLE SER. 15 MALE PLUG, 150A, WH
Harmonization Code8536698000
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Pallet - GTIN - Package70783585458334
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Contact Manufacturer
