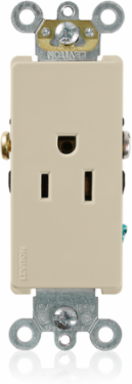

Leviton 16251-I Decora Plus 15 Amp Commercial Grade Self-Grounding Receptacle, 125 Volt, Ivory
- MPN: 16251-I
- UPC: 078477473337
- PPN: LEV-16251-I
CAD
$14.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Plus Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- NEMA
- WD-6
Standards and CertificationsANSI C-73| NOM 057| UL 498| CSA
Material Specifications
- Body Material
- Thermoplastic Nylon
- Face Material
- Thermoplastic Nylon
- Grounding Screw
- Brass 8-32
- Terminal Screws
- Brass 10-32
Clamp NutsZinc-Plated Steel
Ground ClipsBrass-Plated
Line ContactsBrass Triple-Wipe .031 Thick
YokeZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, White-Neutral
Product Features
- Brand
- Decora Plus
- Device Type
- Single Receptacle Outlet
- Grade
- Commercial Specification Grade
- Warranty
- 10-Year Limited
ColorIvory
Feature 4Smooth Face
Strap MaterialSteel
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
