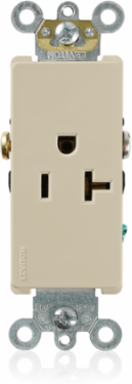

Leviton 16351-I 20 Amp Decora Plus Single Receptacle Outlet, Self-Grounding, 125 Volt, NEMA 5-20R, Ivory
Leviton 16351-I 20 Amp Decora Plus Single Receptacle Outlet, Self-Grounding, 125 Volt, NEMA 5-20R, Ivory
- MPN: 16351-I
- UPC: 078477473832
- PPN: LEV-16351-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$22.91/ EA
Description
Decora Plus Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM
- 057
NEMAWD-6
UL498File E13399
Material Specifications
- Body Material
- Thermoplastic Nylon
- Face Material
- Thermoplastic Nylon
- Grounding Screw
- Brass 8-32
- Terminal Screws
- Brass 10-32
Clamp NutsZinc-Plated Steel
Ground ClipsBrass-Plated
Line ContactsBrass Triple-Wipe .031 Thick
YokeZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Terminal Accom.14-10 AWG
TerminationBack or Side Wire
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Brand
- Decora Plus
- Device Type
- Single Receptacle Outlet
- Grade
- Commercial Specification Grade
- Strap Material
- Steel
ColorIvory
Feature 4Smooth Face
Standards and CertificationsUL
Warranty10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
