Leviton

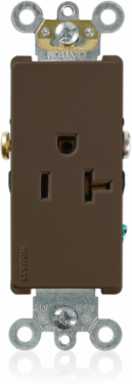

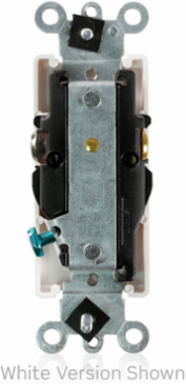

Leviton 16351 20 Amp Decora Plus Single Receptacle Outlet, Commercial Grade, NEMA 5-20R

20 Amp Decora Plus Single Receptacle Outlet, Commercial Grade, NEMA 5-20R
20 Amp Decora Plus Single Receptacle Outlet, Commercial Grade, NEMA 5-20R
  • MPN: 16351
  • UPC: 078477104767
  • PPN: LEV-16351

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$22.91/ EA

Description

Decora Plus Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown

Specifications

Standards and Certifications

ANSI
C-73
NOM
057
NEMAWD-6
UL498File E13399

Material Specifications

Body Material
Thermoplastic Nylon
Face Material
Thermoplastic Nylon
Grounding Screw
Brass 8-32
Terminal Screws
Brass 10-32
Clamp NutsZinc-Plated Steel
Ground ClipsBrass-Plated
Line ContactsBrass Triple-Wipe .031 Thick
YokeZinc-Plated Steel

Mechanical Specifications

Product ID
Ratings are permanently marked on device
Terminal ID
Brass-Hot, Green-Ground, White-Neutral
Terminal Accom.14-10 AWG
TerminationBack or Side Wire

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantFalse

Product Features

Brand
Decora Plus
Device Type
Single Receptacle Outlet
Grade
Commercial Specification Grade
Strap Material
Steel
ColorBrown
Feature 4Smooth Face
Standards and CertificationsUL
Warranty10-Year Limited

Environmental Specifications

Flammability
Rated V-2 per UL 94
Operating Temperature-40°C to 60°C

Electrical Specifications

Amperage
20 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Voltage
125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3

AC Horsepower Ratings

At Rated Voltage
1 HP

Downloads
