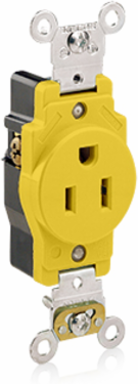

Leviton 5261-CR 15 Amp Heavy-Duty Industrial Grade Single Receptacle Outlet, Corrosion-Resistant, Self-Grounding, NEMA 5-15R
- MPN: 5261-CR
- UPC: 078477125120
- PPN: LEV-5261-CR
CAD
$48.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Corrosion-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Yellow
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction. For use in marine and industrial environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL | 498 |
| Warranty | Limited Lifetime Warranty Warranty |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| UL Fed Spec WC-596 | File E13399 |
Material Specifications
| Assembly Screws | Stainless Steel 300 |
|---|---|
| Body Material | Santoprene TPV |
| Color | Yellow |
| Terminal Screws | Nickel-Plated Brass |
| Blades/Contacts | Nickel-Plated Brass |
|---|---|
| Bushing | Santoprene TPV |
| Compression Nut, Strain Relief | Nylon |
| Wire Module | Thermoplastic |
Mechanical Specifications
| Cord Range | .375 - .655 |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Termination | Back or Side Wire |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Device Type | Single Receptacle Outlet |
|---|---|
| Grade | Heavy-Duty Industrial Specification Grade |
| Feature | Corrosion-Resistant|Smooth Face |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
