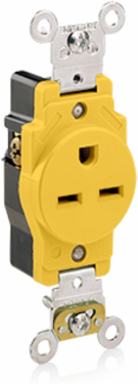

Leviton 5661-CR 15 Amp Industrial Grade Single Receptacle Outlet, NEMA 6-15R, 250 Volt, Yellow
- MPN: 5661-CR
- UPC: 078477106617
- PPN: LEV-5661-CR
CAD
$57.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Back or Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Yellow
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction. For use in marine and industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
- Warranty
- Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13399
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Body Material
- Santoprene TPV
- Color
- Yellow
- Terminal Screws
- Nickel-Plated Brass
Blades/ContactsNickel-Plated Brass
BushingSantoprene TPV
Compression Nut, Strain ReliefNylon
Wire ModuleThermoplastic
Mechanical Specifications
- Cord Range
- .375 - .655
- Terminal Accom.
- 18-10 AWG
- Termination
- Back or Side Wire
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Device Type
- Single Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
