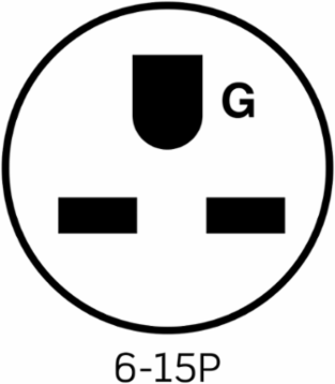

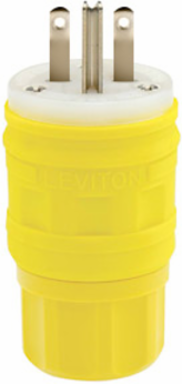

Leviton 14W49 Wetguard Watertight Straight Blade Plug, 15 Amp, 250 Volt, NEMA 6-15P
Leviton 14W49 Wetguard Watertight Straight Blade Plug, 15 Amp, 250 Volt, NEMA 6-15P
- MPN: 14W49
- UPC: 078477848302
- PPN: LEV-14W49
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$37.64/ EA
Description
15 Amp, 250 Volt, NEMA 6-15P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Body Material
- EPTR Rubber
- Compression Nut, Strain Relief
- Nylon
- Wire Module
- Nylon
Blades/ContactsNickel-Plated Brass
BushingSantoprene TPV
Terminal ScrewsElectroless Nickel-coated Brass
Mechanical Specifications
- Amperage
- 15 A
- Cord Range
- .375 - .655
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Voltage
- 250 VAC
Cord Grip Range (in).234-.687
Current LimitingFull Rated Current
GroundingGrounding
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.18-10 AWG
Torque Range12-14 in-lbs
Wire3
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Wetguard
- Device Type
- Straight Blade Plug
ColorYellow
Environmental Specifications
- Environment
- Wet
- IP Rating
- IP66, IP67, IP69K
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
