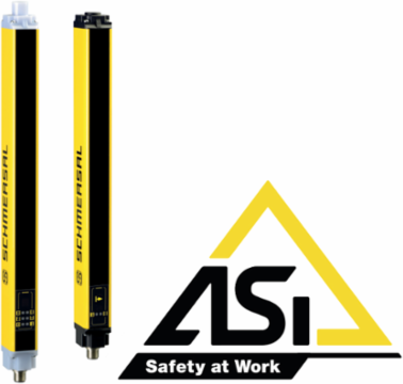

Schmersal 103007435 SLC440AS Safety Light Curtain 170mm Height, Type 4, AS-Interface
- MPN: 103007435
- PPN: SCM-103007435
CAD
$2128.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SLC440AS Safety Light Curtain 170mm Height, Type 4, AS-Interface
Features
- Resolution 30 mm
- Range 0,3 … 10
- Safety type 4 in accordance with IEC 61496-1
- Integrated AS-Interface
- Protection field height 170 mm - 1770 mm
- Configurable blanking functions
- Integrated status indicator
Documentation & Downloads
Specifications
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-0.B.F.E
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Parameter bits, P0
- No function
- AS-i Parameter bits, P2
- No function
- Note (AS-i Parameter bits)
- Set the parameter outputs to "1111" (0xF) | FID: periphery error
- Note (AS-i Input module address)
- Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
AS-i VersionV 3.0
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0 … DO 3No Function
AS-i Parameter bits, P1Low beam quality
AS-i Parameter bits, P3Internal device error (FID)
AS-i Input module address0
Mechanical data - Dimensions
- Height of Receiver
- 303 mm
- Width of sensor
- 27.8 mm
Length of sensor33 mm
Height of the Sensor (Transmitter)283 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution2
General data - Features
- Safety functions
- Yes
- 7-segment display
- Yes
- Number of beams
- 8
Blanking functionYes
Integral system diagnostics, statusYes
Wave length of the sensor880 nm
General data
- Standards
- CLC/TS 61496-2 | EN 50295 | EN IEC 62061 | EN ISO 13849-1 | EN IEC 61496-1
- Enclosure material
- Aluminium
- Reaction time, maximum
- 13 ms
Working principleoptoelectronic
Gross weight530 g
Safety classification
- Standards
- EN IEC 62061
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Safety type in accordance with IEC 61496-1
- 4
Performance Level, up toe
PFH value5.17 x 10⁻⁹ /h
Mission time20 Year(s)
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum50 mA
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 0.35 mm
- Protection class
- III
Ambient temperature-10 ... +50 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock10 g / 16 ms
Mechanical data - Connection technique
- Termination
- Connector
- Terminal, Connector, Transmitter
- Connector plug M12, 4-pole
Terminal connector, RecipientConnector plug M12, 5-pole
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 30 mm
- Range, protection field, minimum
- 300 mm
Height of the protection field170 mm
Range, protection field, maximum10,000 mm
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Electrical data - Auxiliary voltage
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Power consumption, Transmitter
- 75 mA
Power consumption, Receiver150 mA
Rated operating voltage24 VDC
Status indication
- Note (LED switching conditions display)
- Green/red LED (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected
