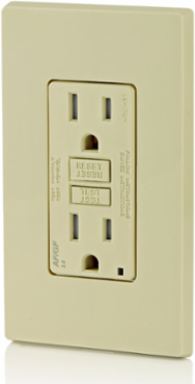

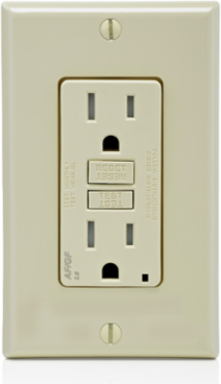

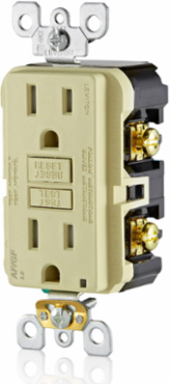

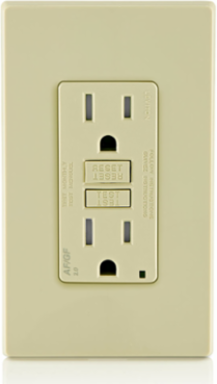

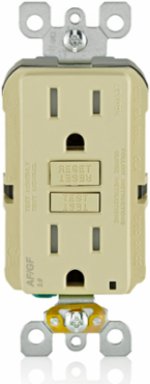

Leviton AGTR1-I 15 Amp Self-Test Tamper-Resistant Dual-Function AFCI/GFCI Outlet, Ivory
Leviton AGTR1-I 15 Amp Self-Test Tamper-Resistant Dual-Function AFCI/GFCI Outlet, Ivory
- MPN: AGTR1-I
- UPC: 078477744499
- PPN: LEV-AGTR1-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$47.87/ EA
Description
15 Amp, 125 Volt Dual Function AFCI/GFCI Receptacle, 20 Amp Feed-Through, Tamper-Resistant, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included – Ivory
Features
- Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
- Engineered to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that GFCI protected power is available
- On initial power up, tests the GFCI circuit within 3 seconds
- Patented Lockout Action prevents reset if the device is damaged
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
- TEST and RESET buttons are readily accessible on the face of the device
- Improved immunity to high frequency noise reduces nuisance tripping
- Superior resistance to electrical surges and over-voltages enhancing reliability
- Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed)
- One-piece T-design trip latch mechanism provides efficient operation
- Impact-resistant thermoplastic cover and body for durability
- Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
- Compatible with all Decora® devices and wallplates for multi-gang installation option; available in select popular colors
- The SmartlockPro® Dual Function AFCI/GFCI Receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro Dual Function AFCI/GFCI Receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and, if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro Dual Function AFCI/GFCI Receptacle offers a National Electrical Code® (NEC®) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA Technical Information Letter No. M-02A
- Yes
- UL Fed Spec WC-596
- Yes
- UL498
- Yes
CSA C22.2 No. 42Yes
NOMYes
UL1699.AFile E480630
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Line Contacts
- Brass Double-Wipe .031 Thick
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
Notesw/ Wallplate
Terminal Accom.14-10 AWG
Terminal ScrewsPlated Steel
Mechanical Specifications
- Amperage
- 15 A
- Feature
- AFCI, Self-test, Tamper-Resistant
- NEMA
- 5-15R
- Product ID
- Ratings are permanently marked on device
- Series
- AGTR1
- Strap Material
- Galvanized Steel
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Voltage
- 125 VAC
ColorIvory
GroundingSelf-Grounding
Pole2
Screw Terminal Torque14-18 in-lbs
Standards and CertificationsUL/CSA, NEMA WD6
Terminal Accom.14-10 AWG
TerminationBack & Side
Wire3
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Type
- Duplex Receptacle
WallplateIncluded
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Grounding Screw
- Plated Steel
- Notes
- w/ Wallplate
- Terminal Screws
- Plated Steel
ClampsBrass
FlammabilityRated V-2 per UL 94
Line ContactsBrass Double-Wipe .031 Thick
Operating Temperature-35C to +66C
YokeZinc-Plated Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 1699A
- Operating Temperature
- -35C to +66C
FlammabilityRated V-2 per UL 94
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
Dielectric VoltageWithstands 1250VAC per UL 1699A
