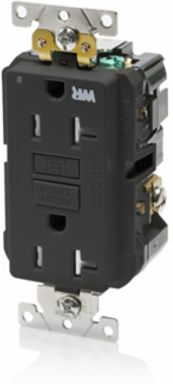

Leviton G5362-WTE SmartlockPro GFCI Duplex Receptacle, 20 Amp, 125 Volt, Extra Heavy-Duty, Weather Resistant, Black
- MPN: G5362-WTE
- UPC: 078477730997
- PPN: LEV-G5362-WTE
CAD
$73.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Documentation & Downloads
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Certification/ListingUL, CSA, NOM-ANCE
Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Material Specifications
- Ground Clips
- Brass
- Face Material
- PBT
- Shutter Mechanism
- Delrin® Acetal
- Grounding Screw
- Stainless Steel
- Terminal Clamp
- Brass
Line ContactsBrass
Terminal ScrewsStainless Steel
Strap MaterialNickel Plated Steel
Body MaterialPolycarbonate
Mechanical Specifications
- Terminal ID
- Black-Hot, White-Neutral, Green-Ground
- Terminal Accom.
- 14-10 AWG solid or stranded
Product IDRatings are permenantly marked on device
TerminationBack or Side Wire
Product Features
- Function
- GFCI
- Color
- Black
- Country Of Origin
- China
- Device Type
- Duplex Receptacle Outlet
NEMA5-20R
BrandSmartlockPro
GradeExtra Heavy-Duty Industrial Specification Grade
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 20 A
- Short Circuit Current Rating
- 10kA
- Voltage
- 125 VAC
Wire3
Pole2
GroundingSelf-Grounding
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
