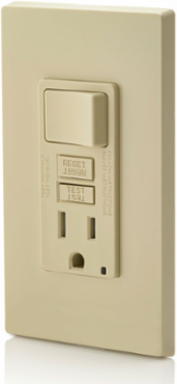

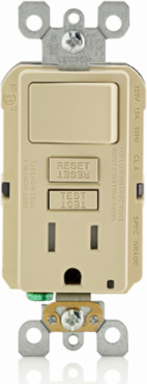

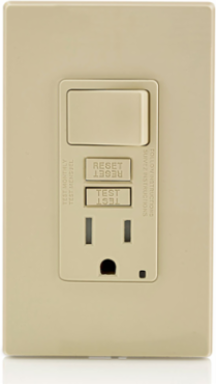

Leviton GFSW1-I SmartlockPro 15 Amp GFCI Switch/Outlet Combo, Tamper-Resistant, LED Indicator
Leviton GFSW1-I SmartlockPro 15 Amp GFCI Switch/Outlet Combo, Tamper-Resistant, LED Indicator
- MPN: GFSW1-I
- UPC: 078477714744
- PPN: LEV-GFSW1-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$65.28/ EA
Description
SmartlockPro Slim GFCI Combination Switch. Tamper-Resistant Receptacle with LED Indicator. 15 Amp, 125 Volt. Switch 1800 Watts, 120V AC. Monochromatic, Back and Side Wired, Wallplate/Faceplate Sold Separately, Self-Grounding Clip Included - Ivory
Features

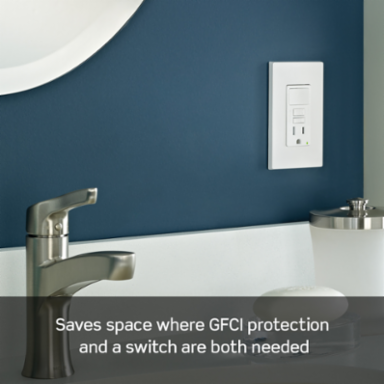

- Single receptacle GFCI with switch saves space and adds convenience.
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers

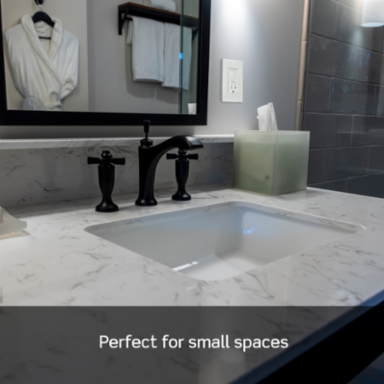

- Reduced depth makes it easier to install in any electrical box, even shallow ones.
- Terminals allow for easy wiring options – back and side wire capable.
- External back wire clamps provide visual indication of proper wire seating.
- Withstands high torque and resists wire pullout.
- Standard brass self-grounding clip.
- Trip threshold meets or exceeds UL requirements for tripping time.
- Improved immunity to high-frequency noise reduces nuisance tripping.
- Advanced electronics design provides superior resistance to electrical surges and over-voltages.
- Compatible with all Decora devices and wallplates; available in select Decora colors.
- Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Specifications
Standards and Certifications
- GFCI
- UL 943, CSA-C22.2 No. 144.1-06 Class A
- Receptacle
- UL 498, CSA-C22.2 No. 42
- cCSAus
- Certified (File # LR-57811)
NOMYes
SwitchUL 20, CSA-C22.2 No. 111
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Grounding Screw
- Plated Steel
- Notes
- With Decora plus screwless wallplate
- Terminal Accom.
- 10-14 AWG
- Terminal Screws
- Plated Steel
ClampsBrass
GradeResidential/Commercial Specification Grade
Line ContactsBrass Double-Wipe .031 Thick
Product IDRatings are permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
YokeGalvanized Steel
Mechanical Specifications
- Amperage
- 15 A
- Brand
- SmartlockPro
- Face Material
- Thermoplastic
- Feed-Through Current
- 20 A
- Notes
- With Decora plus screwless wallplate
- Product ID
- Ratings are permanently marked on device
- Standards and Certifications
- CSA, NEMA WD6
- Tamper Resistant
- Yes
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Trip Level
- Class A, 5mA plus or minus 1mA
- Voltage
- 125 VAC
- Wire
- 3
Body MaterialPolycarbonate
ColorIvory
FeatureSelf-Test
NEMA5-15R
Pole2
Screw Terminal Torque14-18 in-lbs
Strap MaterialGalvanized Steel
Terminal Accom.10-14 AWG
TerminationBack & Side
TypeCombination with Switch
Warranty2-Year Limited
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Wallplate
- Not Included
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Grounding Screw
- Plated Steel
- Notes
- With Decora plus screwless wallplate
- Terminal Screws
- Plated Steel
ClampsBrass
GradeResidential/Commercial Specification Grade
Line ContactsBrass Double-Wipe .031 Thick
Operating Temperature-35C to +66C
YokeGalvanized Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
