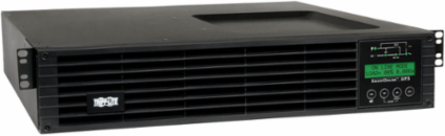

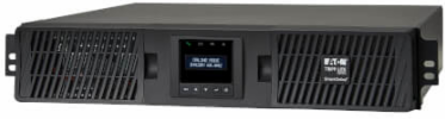

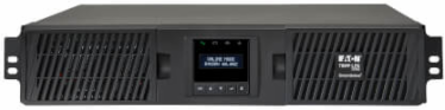

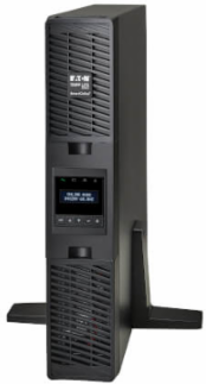

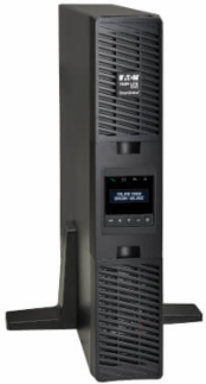

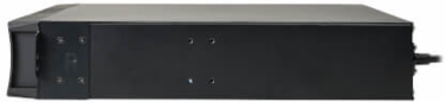

Tripp Lite SU1500RTXLCDN SmartOnline UPS 120V 1.5kVA 1.35kW 2U Rackmount, WEBCARDLX, LCD, USB
- MPN: SU1500RTXLCDN
- UPC: 037332192813
- PPN: TRP-SU1500RTXLCDN
CAD
$3536.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pre-installed WEBCARDLX network interface permits remote UPS management, including reboots.
Features
- Zero transfer time suitable for advanced network applications
- 2% output voltage regulation in online and battery modes
- Expandable runtime with optional external battery packs
- Pre-installed WEBCARDLX network interface
- 14 min. runtime at half load; 4.2 min. at full load
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Protects Mission-Critical Rack-Mounted Equipment
- Reliable Battery Backup with Expandable Runtime
- Pre-Installed WEBCARDLX Network Interface
- Switchable Numbered Load Banks
- Interactive LCD Screen
- EMI/RFI Line Noise Filtering
- Audible Alarm
- Communications Ports
- Versatile Installation Options
Documentation & Downloads
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 570
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 4.2 min. (1350w)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Expandable Runtime Description
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
- Battery Recharge Rate (Included Batteries)
- Less than 3 hours recharge to 90%; Add 6 hours per BP48V27-2US (typical, full load discharge)
- Battery Access
- Front panel battery access
- Expandable Runtime
- Yes
Half Load Runtime (min.)14 min. (675w)
External Battery Pack CompatibilityBP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
DC System Voltage (VDC)48
Internal UPS Replacement Battery CartridgeRBC94-2U
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to UL1778 (USA)
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth with External Battery Pack (cm)
- 65
- Minimum Required Rack Depth without External Battery Pack (cm)
- 55
- Optional Mounting Accessory Notes

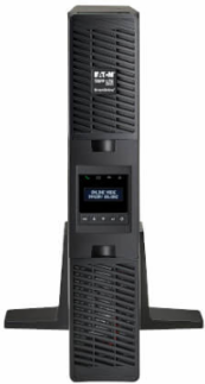

- Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
- Primary UPS Depth (mm)
- 470
- Primary UPS Width (mm)
- 445
- Shipping Dimensions (hwd / in.)
- 9.20 x 23.30 x 19.20
- UPS Housing Material
- Steel
- UPS Power Module Weight (kg)
- 20.50

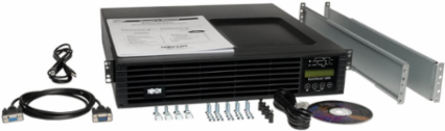

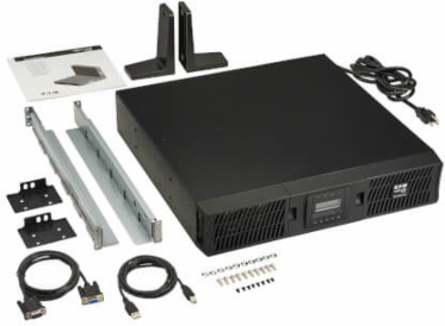

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth with External Battery Pack (in.)25.5
Minimum Required Rack Depth without External Battery Pack (in.)21.5
Primary Form FactorRackmount
Primary UPS Height (mm)89
Rack Height2U
Shipping Weight (lbs.)60.00
UPS Power Module Dimensions (hwd, in.)3.5 x 17.5 x 18.5
UPS Power Module Weight (lbs.)45.2
User Interface, Alerts & Controls

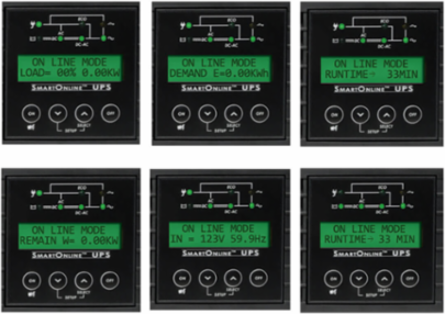

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- LED Indicators
- 7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation and AC output status
Switches2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Voltage Regulation
- Voltage Regulation Description
- Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltages
- Undervoltage Correction
- Corrects undervoltages to 100V at full load (90V at 100V nominal)
Overvoltage CorrectionCorrects overvoltages to 150V (0-100% load)
Severe Undervoltage CorrectionCorrects brownouts to 70V (70% load) & 55V (33% load)
Input
- Rated input current (Maximum Load)
- 12A
- Nominal Input Voltage Description
- 120V factory default
- Input Circuit Breakers
- 20A
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported100V AC; 110V AC; 115V AC; 120V AC; 127V AC

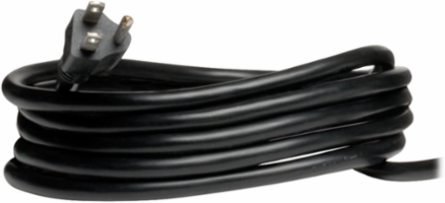

UPS Input Connection Type5-15P
UPS Input Cord Length (ft.)10
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 1350
- Power Factor
- 0.9
- Nominal Voltage Details
- 120V factory-default nominal voltage; Less than 3% THD for linear loads and less than 5% for non-linear computer loads
- Frequency Compatibility Details
- ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz.
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Load Management Receptacles
- Two switchable three-outlet 5-15R load banks
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Nominal Output Voltage(s) Supported
- 100V; 110V; 115V; 120V; 127V
- Individually Controllable Load Banks
- No
Output kVA Capacity (kVA)1.5
Output kW Capacity (kW)1.35
Crest Factor3:1
Frequency Compatibility50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Output Voltage Regulation (Line Mode)+/- 2%
Output Voltage Regulation (Battery Mode)+/- 3%
Output AC Waveform (AC Mode)Pure Sine wave
Output Capacity DetailsON LINE MODE: Maximum output capacity ratings is reduced to 1215 watts at 115V nominal and 1080 watts at 100V nominal; FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 945 watts / 115V 850 watts / 110V 804 watts / 100V 756 watts) OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)

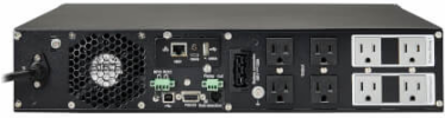

Output Receptacles(6) 5-15R
Communications
- Network Monitoring Port Description
- Pre-installed WEBCARDLX Network Management Card interface included
- Communications Cable
- USB and DB9 cabling included
- Communications Interface
- Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled)
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Economy Mode BTU / Hr. (Full Load)
- 294
- AC Economy Mode Efficiency Rating (100% Load)
- 94%
- Operating Elevation (m)
- Up to 3000m
Storage Temperature Range+5 to +122 degrees Fahrenheit / -20 to +40 degrees Celsius with batteries; -13 to +131 Fahrenheit / -25 to +55 degrees Celsius without batteries
AC Mode BTU / Hr. (Full Load)455
Battery Mode BTU / Hr. (Full Load)559
Audible Noise45 dBA at 1m front side
Overview
- UPC Code
- 037332192813
UPS TypeOn-Line
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy mode operation
High Availability UPS FeaturesAutomatic inverter bypass; Battery Independent Restart; Hot swappable batteries
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- Zero (0 milliseconds) in double-conversion mode; 4 milliseconds economy mode
- High Voltage Transfer to Battery Power (Setpoint)
- 150
Low Voltage Transfer to Battery Power (Setpoint)100V at full load (90V full load at 100V nominal setting); 70V at 70% load; 55V at 33% load
