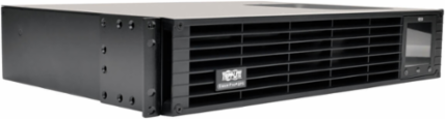

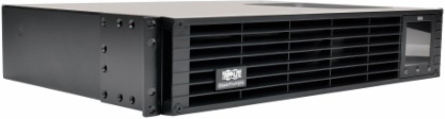

Tripp Lite SMC10002URM SmartPro 120V 1kVA 700W Line-Interactive UPS, 2U Rack/Tower, 6 Outlets
- MPN: SMC10002URM
- UPC: 037332186232
- PPN: TRP-SMC10002URM
CAD
$1392.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pure sine wave output is compatible with active PFC power supplies.
Features
- Corrects under- and overvoltages from 83V to 147V
- 6 NEMA 5-15R outlets
- Monitoring of power conditions via POWERALERT12

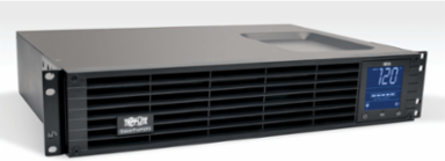

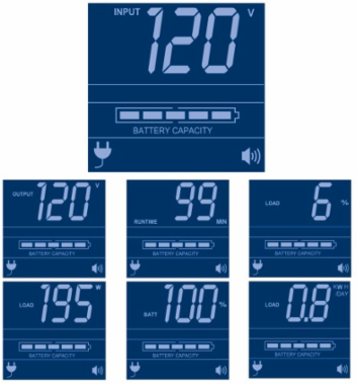

- Interactive LCD monitoring screen
- 15.6 min. runtime at half load; 6.4 min. at full load
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Additional
- Voltage
- 120V AC
- Output Watt Capacity
- 700 W
- Battery Runtime Full Load
- 6.4 min (700 W)
- Automatic Voltage Regulation
- Yes; input range 83-147V
- Output Voltage Regulation Battery Mode
- ±5%
- Output Waveform Battery Mode
- Pure sine wave
- Power Factor
- 0.7
- Input Circuit Breaker
- 10 A
- Input Phase
- Single-Phase
- Nominal Output Voltage(s) Supported
- 110V, 115V, 120V
- Battery Replacement
- Hot-swappable, user replaceable batteries
- Cooling Method
- Fan
- Installation Form Factors Supported
- 2 post 19" rackmount; 4 post 19" rackmount; Wallmount; optional 4POSTRAILKIT, 4POSTRAILKITWM, 2-9USTAND (tower stand), 2POSTRMKITWM (wallmount)
- Dimensions (H x W x D)
- 3.45 x 17.35 x 12.5 in (88 x 441 x 318 mm)
- Operating Temperature Range
- 32°F to 104°F (0°C to 40°C)
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU Per Hour Full Load
- 455 BTU/hr
- Audible Noise
- 45 dBA max at 1 m, front side

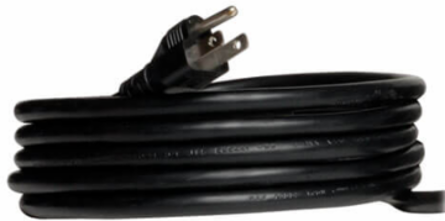

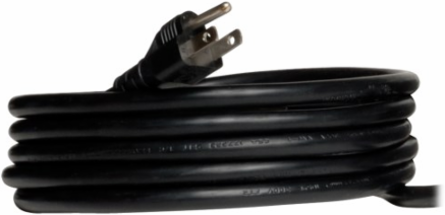

- Power Cord
- 10 ft, 120V NEMA 5-15P
- Rack Height
- 2U
- Communications Interface
- USB, DB9 Serial, EPO (emergency power off); USB cabling included
- Transfer Time Battery to AC
- 1 millisecond
- High Voltage Transfer Setpoint
- 147V
- Switches
- 3 pushbutton switches: OFF/ON power, MODE selection, MUTE/ENTER
- Internal UPS Replacement Battery Cartridge
- RBC24V-LCD
- WatchDog Compatibility
- Supports watchdog application, OS and hard-reboot restart for remote applications
- Undervoltage Correction
- Boosts input 83-107V by 14%
- Compliance
- UL1778, CSA, NOM, FCC Part 15 Category B
- Surge / Noise Suppression
- EMI/RFI noise filtering
Output Volt Amp Capacity1000 VA
Battery Runtime Half Load15.6 min (350 W)
Battery Recharge TimeLess than 4.5 hours (10% to 90%, typical, full load discharge)
Output Voltage Regulation Line Mode-21% to +8%
Output Waveform AC ModeSine wave
Frequency Compatibility60 Hz
Input Current Maximum Load9.2 A
Recommended Electrical Service15A 120V
DC System Voltage24 VDC
Battery AccessFront panel battery access door
Audible AlarmYes, indicates startup, power failure, low battery, overload, fault, and remote shutdown

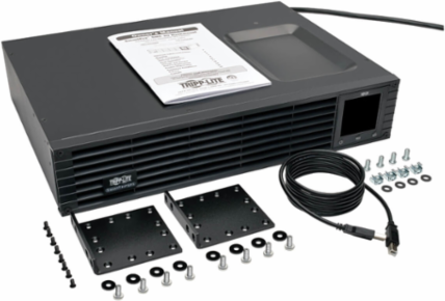

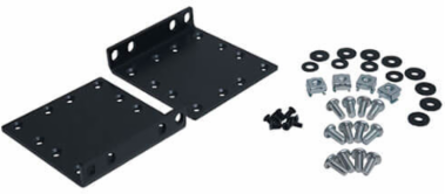

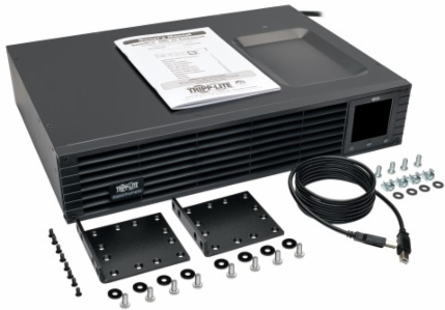

Mounting Hardware IncludedIncludes UPSHDEARKIT for 2- and 4-post rackmount and wallmount installation
Primary Form FactorRackmount
Weight35.4 lbs (16.06 kg)
Storage Temperature Range5°F to 122°F (-15°C to 50°C)
AC Mode BTU Per Hour Full Load122 BTU/hr
Operating Elevation0 to 3000 m (0 to 10,000 ft)

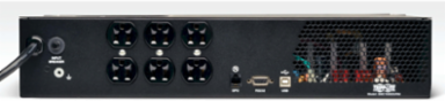

Outlets6 NEMA 5-15R (6 x 5-15R)
Cold StartCold-start operation supported
Network Monitoring SupportSupports detailed UPS and site power monitoring
Transfer Time AC to Battery4 milliseconds
Low Voltage Transfer Setpoint83V
UPS Housing MaterialSteel
Grounding LugBack panel grounding lug
PowerAlert SoftwareSupports local monitoring via built-in ports; download PowerAlert Local software
Network UPS Tools CompatibilityNUT compatible
Overvoltage CorrectionReduces input 128-147V by 12%
Surge Suppression Rating570 joules
Product Warranty Period2 years (3 years with registration)
