Description

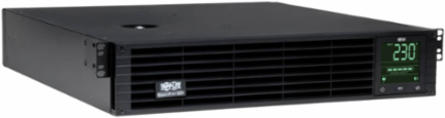

SmartPro 230V 3kVA 2.7kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

Features

3kVA / 3000VA / 2700W line interactive 2U rack/tower UPS, Sine Wave
Extended runtime options up to 2700W, 0.9 Power Factor, Interactive LCD interface
98% line-mode efficiency, 2 switched load banks, 4 post mounting kit
USB, RS232, EPO and slot for network management card options
230V C20 inlet, 8 C13 & 1 C19 outlets
To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
2-year limited warranty

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 350

AC Suppression Response Time: Instantaneous

EMI / RFI AC Noise SuppressionYes

Battery

Full Load Runtime (min.): 3.9 min. (2700w)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 48

Internal UPS Replacement Battery Cartridge: RBC58-2U

Battery Replacement Description: Hot-swappable, replaceable batteries

Half Load Runtime (min.)11.1 min. (1350w)

External Battery Pack CompatibilityBP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 5 hours from 10 to 90% (typical, full load discharge)

Battery AccessFront panel battery access door

Expandable RuntimeYes

Certifications

UPS Certifications: CE; ROHS (Restriction of Hazardous Substances)

UPS Certification DetailsIEC 62040-1, IEC 62040-2 Class A EMI, GOST

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth with External Battery Pack (cm): 67

Minimum Required Rack Depth without External Battery Pack (cm): 58

Optional Mounting Accessory Notes: Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm): 495

Primary UPS Width (mm): 445

Shipping Dimensions (hwd / in.): 9.00 x 23.75 x 20.50

UPS Housing Material: Steel

UPS Power Module Weight (kg): 28.49

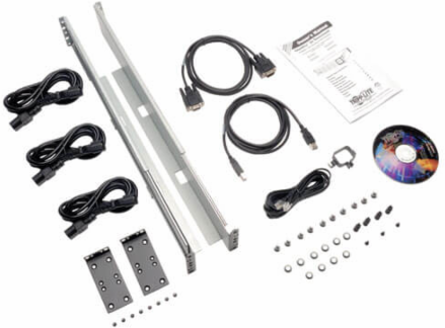

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Minimum Required Rack Depth with External Battery Pack (in.)26.5

Minimum Required Rack Depth without External Battery Pack (in.)23

Primary Form FactorRackmount

Primary UPS Height (mm)89

Rack Height2U

Shipping Weight (lbs.)89.00

UPS Power Module Dimensions (hwd, in.)3.50 x 17.50 x 19.50

UPS Power Module Weight (lbs.)62.8

User Interface, Alerts & Controls

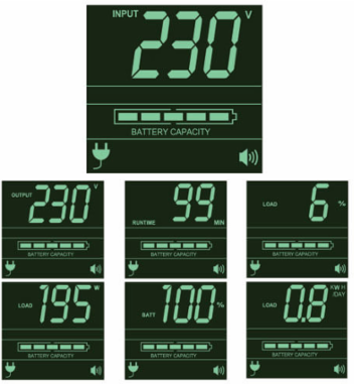

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278

Undervoltage Correction: Input voltages between 206 and 183 are boosted by 12%

Overvoltage CorrectionInput voltages between 244 and 278 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 158 and 183 are boosted by 24%

Input

Rated input current (Maximum Load): 14.1A

UPS Input Connection Type: C20 inlet

Input Circuit Breakers: 20A

Nominal Input Voltage(s) Supported230V AC

UPS Input Connection DescriptionIEC320-C20 input connection accepts a variety of user supplied detachable C19 output cordsets to match country or site specific power sources

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 3000

Output Watt Capacity (Watts): 2700

Power Factor: 0,9

Frequency Compatibility: 50 / 60 Hz

Output Voltage Regulation (Line Mode): +6%, -15%

Included Output Power Cables: Set of 3 C13 to C14 power cables included

Output AC Waveform (AC Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 220V; 230V; 240V

Individually Controllable Load Banks: Yes

Output kVA Capacity (kVA)3.00

Output kW Capacity (kW)2.70

Nominal Voltage Details230v nominal inverter output voltage

Frequency Compatibility DetailsAutomatic frequency selection

Output Voltage Regulation (Battery Mode)+/-5%

Load Management ReceptaclesTwo switchable single outlet C13 load banks

Output AC Waveform (Battery Mode)Pure Sine wave

Output Receptacles(8) C13; (1) C19

Communications

Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD

PowerAlert Software: For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

Communications CableUSB, DB9 and EPO cabling included

Communications InterfaceUSB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 1501

Audible Noise: 45 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)158

AC Mode Efficiency Rating (100% Load)98%

Overview

UPC Code: 037332181381

UPS TypeLine-Interactive

Special Features

Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks; Schedulable daily hours of economy mode operation

High Availability UPS FeaturesHot swappable batteries
