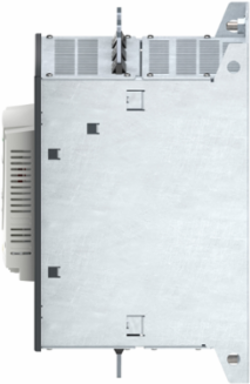

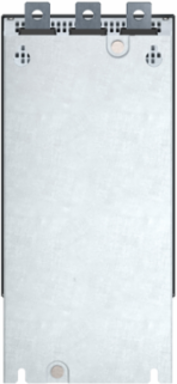

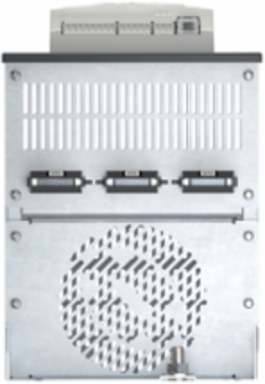

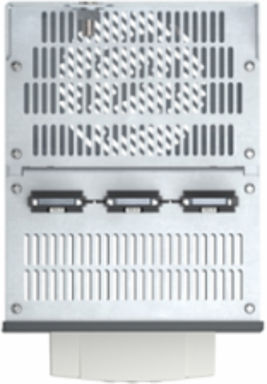

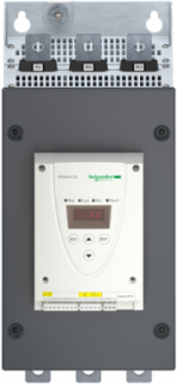

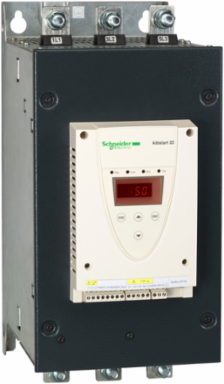

Schneider Electric ATS22C21S6 Altistart 22 Soft Starter, 55-132kW, 230-500V, 210A
- MPN: ATS22C21S6
- PPN: SCH-ATS22C21S6
CAD
$4651.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 210A, a rated power from 55kW to 132kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, United States
Depth299 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus
Complementary Attributes
- Maximum Switching Current
- 5 A 250 V AC resistive 1 relay outputs, 5 A 30 V DC resistive 1 relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
- Minimum Switching Current
- 100 mA 12 V DC relay outputs)
- Us Rated Supply Voltage
- 230...600 V - 15...10 %
Control Circuit Consumption20 W
Uc Control Circuit Voltage230 V - 15...10 % 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, PB
- Electromagnetic Compatibility
- conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
- Power Range
- 55-100 kW 200-240 V 3 phase, 110-220 kW 380-440 V 3 phase, 110-220 kW 480-500 V 3 phase
- Vibration Resistance
- 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1923
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Assembly Style
- with heat sink
- Connector Type
- 1 RJ45
- Device Connection
- in the motor supply line
- Function Available
- internal bypass
- Installed Device
- 31
- Motor Starter Type
- soft starter
- Noise Level
- 56 dB
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- soft starter
- Range Of Product
- Altistart 22
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Voltage Limits
- 195-660 V
- Transmission Rate
- 4800, 9600 or 19200 bps
- Type Of Start
- start with torque control (current limited to 3.5 In)
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 425 mm
Persona Type NamesEnd User, Contractor, Panel Builder
Motor Power Kw110 kW 400 V, 110 kW 440 V, 55 kW 230 V, 132 kW 500 V
Protection Typephase failure line, thermal protection motor, thermal protection starter
Certificate AgencyCSA, UL, GOST, C-tick, CCC
Local Publishable Date2026-05-07
Stocking FlagN
Device TypeSoft starter - Soft starter
TraceabilityYes
Average Life Duration10 year(s)
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Component NameATS22
Control Circuit Consumption20 W
Factory Setting Current180 A
Icl Starter Rating210 A connection in the motor supply line for standard applications
MarkingCE
Network Frequency45...66 Hz
Operating Positionvertical +/- 10 degree
Power Dissipation In W117 W for standard applications
Product Destinationasynchronous motors
Product Specific Applicationpumps and fans
ReturnabilityYes
Supply Frequency50...60 Hz - 10...10 %
Sustainable PackagingNo
Type Of Coolingforced convection
Utilisation CategoryAC-53A
Warranty In Months18
Width Nominal206 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-60 °C (with current derating 2.2 % per °C)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP00
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 % without condensation or dripping water IEC 60068-2-3
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altistart 22
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Output Current
- 0.4...1 Icl adjustable
Discrete Output Number2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive logic LI1, LI2, LI3 11 V, >= 5 mA
- Discrete Input Type
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Ptc Probe Input
- 750 Ohm
Discrete Input Number3
Discrete Input Voltage24 V <= 30 V
