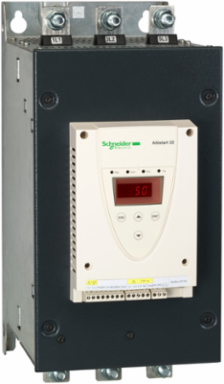

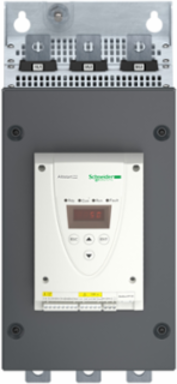

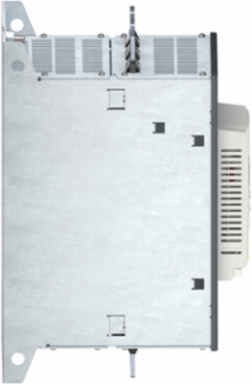

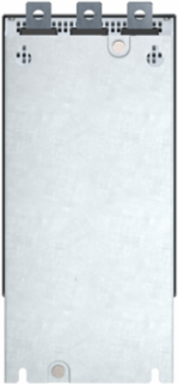

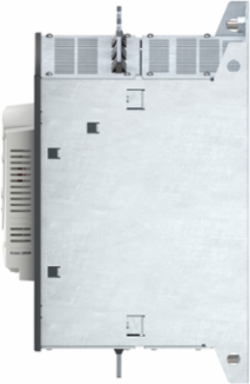

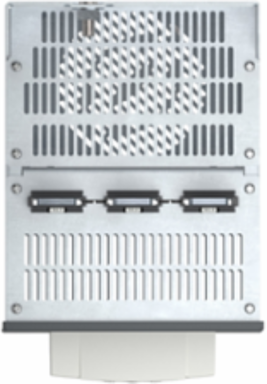

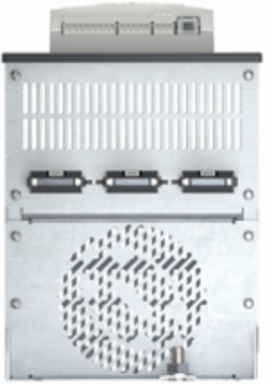

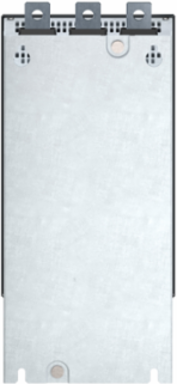

Schneider Electric ATS22C21S6U soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 60 to 200hp
Schneider Electric ATS22C21S6U soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 60 to 200hp
- MPN: ATS22C21S6U
- PPN: SCH-ATS22C21S6U
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4651.86/ EA
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 210A, a rated power from 60HP to 200HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Specifications
Environment
- Product Certifications
- CSA || UL || CCC || C-Tick || GOST
- Electromagnetic Compatibility
- conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Pollution Degree
- level 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -25-70 °C
- Operating Altitude
- <= 1000 m without derating || > 1000...< 2000 m with current derating of 2.2 % per additional 100 m
StandardsEN/IEC 60947-4-2
Ambient Air Temperature For Operation-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
Vibration Resistance1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6
Noise Level56 dB
Relative Humidity0-95 % without condensation or dripping water EN/IEC 60068-2-3
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Device Connection
- in the motor supply line
- Minimum Switching Current
- 100 mA 12 V DC relay outputs)
- Height
- 425 mm
- Maximum Switching Current
- 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
- Marking
- CE
- Output Current
- 0.4...1 Icl adjustable
- Connector Type
- 1 RJ45
- Function Available
- internal bypass
- Control Circuit Consumption
- 20 W
- Supply Voltage Limits
- 177-660 V
- Physical Interface
- RS485 multidrop
- Discrete Input Number
- 3
- Operating Position
- vertical +/- 10 degree
- Width
- 206 mm
- Depth
- 299 mm
- Protection Type
- phase failure line || thermal protection motor || thermal protection starter
Network Frequency45...66 Hz
[Uc] Control Circuit Voltage110 V - 15...10 % 50/60 Hz
Discrete Output Typerelay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Discrete Input Voltage110 V <= 121 V
Net Weight33 kg
Installed Device31
Communication Data Linkserial
Discrete Output Number2
Communication Port ProtocolModbus
Discrete Input TypeLI1, LI2, LI3) logic, 5 mA 20 kOhm
Type Of Coolingforced convection
Assembly Stylewith heat sink
Ptc Probe Input750 Ohm
Transmission Rate4800, 9600 or 19200 bps
Discrete Input Logicpositive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA
Supply Frequency50...60 Hz - 10...10 %
Specifications
- Product Destination
- asynchronous motors
- Motor Power Hp
- 150 hp 460 V || 200 hp 575 V || 60 hp 208 V || 75 hp 230 V
- Product Or Component Type
- soft starter
- Network Number Of Phases
- 3 phases
- Icl Starter Rating
- 210 A connection in the motor supply line for standard applications
- Utilisation Category
- AC-53A
- Ip Degree Of Protection
- IP00
[Us] Rated Supply Voltage208...600 V - 15...10 %
Range Of ProductAltistart 22
Component NameATS22
Power Dissipation In W117 W for standard applications
Type Of Startstart with torque control (current limited to 3.5 In)
Product Specific Applicationpumps and fans
Factory Setting Current180 A
