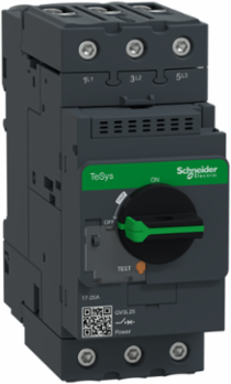

Schneider Electric GV3L25 TeSys Deca Motor Circuit Breaker 3P 25A 100kA Breaking Capacity
- MPN: GV3L25
- PPN: SCH-GV3L25
CAD
$411.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD325 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United Kingdom
Depth136 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Current
- 25 A
- Maximum Operating Rate
- 25 cyc/h
Line Rated Current25 A
Rated Dutyuninterrupted IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Mode
- 35 mm symmetrical DIN rail clipped, panel screwed with 3 x M4 screws)
- Range Of Product
- TeSys GV3, TeSys Deca
- Certificate Agency
- CCC, UL, CSA, EAC, LROS (Lloyds register of shipping), BV, ABS, DNV-GL, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.28544635420228376, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.1069344392964876
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 21 kg CO2 eq., 21.070000000000004
- Local Publishable Date
- 2026-02-25
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- rotary handle
- Device Short Name
- GV3L
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 50000 cycles
- Motor Power Kw
- 11-11 kW 400/415 V AC 50/60 Hz15-15 kW 500 V AC 50/60 Hz18.5-18.5 kW 690 V AC 50/60 Hz
- Network Type
- AC
- Power Dissipation Per Pole
- 8 W
- Product Name
- TeSys GV3
- Range
- TeSys Deca
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 30 kg CO2 eq.
- Utilisation Category
- category A IEC 60947-2AC-3 IEC 60947-4-1
- Pep Code
- ENVPEP0609001EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 58
- Width Nominal
- 55 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Package Weight(Lbs)
- 988.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mounting Positionhorizontal, vertical
Rated Current 125 A
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz, 100 % 400/415 V AC 50/60 Hz, 100 % 440 V AC 50/60 Hz50 % 500 V AC 50/60 Hz, 50 % 690 V AC 50/60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.5759934932242534, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.484113459283891
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI060901
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV3L
Device Applicationmotor protection
Electrical Durability50000 cycles AC-3 415 V In
Magnetic Tripping Current350-350 A
Mechanical Robustnessshocks 15 Gn for 11 ms contactor openshocks 30 Gn for 11 ms contactor closedvibrations 4 Gn, 5...300 Hz
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemotor circuit breaker
ReturnabilityNo
Suitability For Isolationyes IEC 60947-1
Tightening Torque5 N.m screw clamp terminal
Trip Unit Technologymagnetic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with 690V and 65A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 3P& 10- Rated breaking capacity 6KA
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh315.36
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal132 mm
[Ith] Conventional Free Air Thermal Current25 A IEC 60947-2
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP0609001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint29.52248774600692
Circularity ProfileENVEOLI060901
Environmental DisclosureENVPEP0609001EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- TeSys GV3, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
