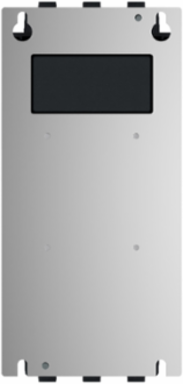

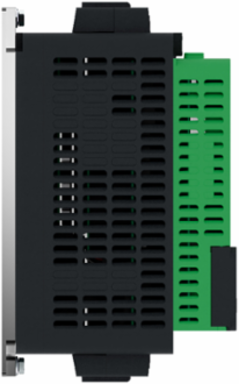

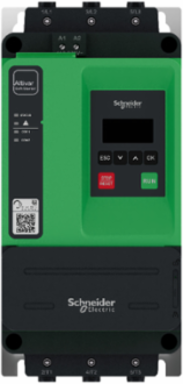

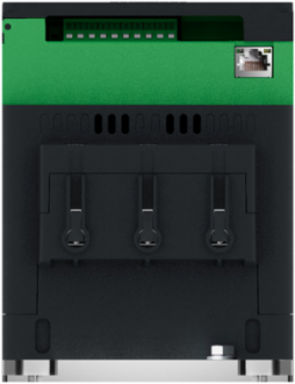

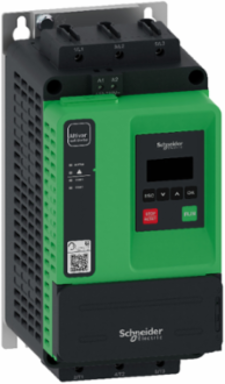

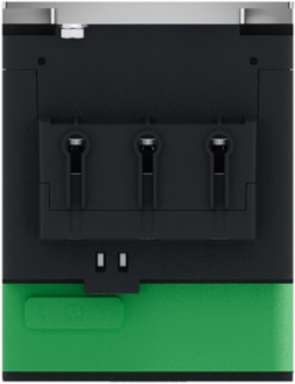

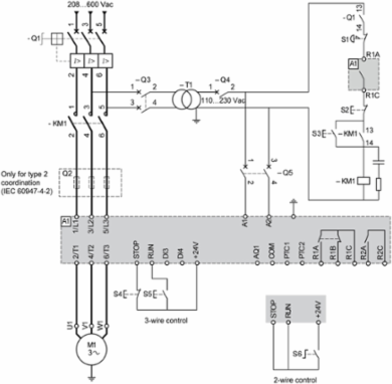

Schneider Electric ATS430D32S6 Soft starter, Altivar Soft Starter ATS430, 32A, 208 to 600V AC, control supply 110 to 230V AC

MPN: ATS430D32S6
PPN: SCH-ATS430D32S6
UNSPSC: 39121521

$1307.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Soft starter, Altivar Soft Starter ATS430, 32A, 208 to 600V AC, control supply 110 to 230V AC

Features

Reduce time (design to operation) and overall cost
Improved sustainability (enviromental performance, durability and efficiency)
Reduced operational expenditure (high durability)
Withstand high stress and avoid limiting event (increased reliability by design)
Meets cybersecurity standards (integrates best practice features)
Reduce carbon footprint (99.5% efficiency and power monitoring)
Digitized (data reporting for energy management)
Effective motor management
Reduced downtime (embedded condition monitoring)
Industry-leading motor control (original Torque Control System (TCS))

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

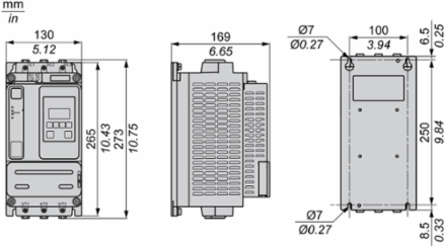

Depth	169 mm

Weight	3900 g

Communications & Management Attributes

Communication Port Protocol	RJ45, open style (DO, D1, PE, COM), Modbus serial

Complementary Attributes

Ue Rated Operational Voltage	208 V 7.5 hp normal duty230 V 7.5 kW normal duty, 230 V 10 hp normal duty400 V 15 kW normal duty, 440 V 15 kW normal duty460 V 20 hp normal duty500 V 18.5 kW normal duty, 525 V 18.5 kW normal duty575 V 25 hp normal duty, 208...600 V AC - 15...10 %)
Maximum Acceleration Under Vibratory Load During Transport	1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Maximum Horse Power Rating	7.5 hp 208 V normal duty10 hp 230 V normal duty20 hp 460 V normal duty25 hp 575 V normal duty
Minimum Switching Current	100 mA 12 V DC relay outputs
Uc Control Circuit Voltage	24 V DC110...230 V AC 50-60 Hz - 15...10 %
Uimp Rated Impulse Withstand Voltage	6 kV
Maximum Acceleration Under Shock Impact During Operation	15 gn at 11 ms
Maximum Acceleration Under Shock Load During Transport	10 gn at 11 ms
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport	1.75 mm at 2...9 Hz

Maximum Acceleration Under Vibratory Load During Storage	1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Integrated Motor Overload Protection	true
Maximum Switching Current	relay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1
Ie Rated Operational Current	normal duty 32 A in line 40 °C)
Ui Rated Insulation Voltage	600 V
In Rated Current Pwr Loss Specifctn	32 A
Maximum Acceleration Under Shock Load During Storage	10 gn at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	1 gn at 13…200 Hz
Maximum Deflection Under Vibratory Load During Storage	1.75 mm at 2...9 Hz

Important Information Attributes

Connector Type	1 RJ45, open style
Electromagnetic Compatibility	conducted and radiated emissions level A conforming to IEC 60947-4-2, electrostatic discharge level 3 conforming to IEC 61000-4-2immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4voltage/current impulse level 3 conforming to IEC 61000-4-5damped oscillating waves level 3 conforming to IEC 61000-4-18immunity to conducted disturbances radio-frequency level 3 conforming to IEC 61000-4-6
Marking	cULus, CE, UKCA, CCC, RCM, EAC, KC
Protection Type	phase failure mains, thermal protection mains, thermal protection startercurrent overload motor, motor underload motor, excessive acceleration time motor, motor phase loss detection motor, protection against line phase inversion mains, external thermal protection motor, short-circuit between motor phase and earth motor
Utilisation Category	AC-3A, AC-53A
Carbon Footprint Of The Distribution Phase A4	0.7599803941314599, 0.8 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.1359103616929118
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 154 kg CO2 eq., 2154.260113971325
Local Publishable Date	2026-03-26
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Apparent Power	70 VA
Device Connection	in line
Display Screen Available	true
Material Declaration	true
Network Frequency	50-60 Hz
Operating Position	vertical +/- 10 degree
Overload Current	400 % Ie for 13 s
Power Loss Per Device Current Dependent	6 W
Power Losses	281 W during starting at 40 °C at 400% In
Product Destination	asynchronous motors
Product Specific Application	standard industrial machines
Returnability	Yes
Software Version	v6.1
Sustainable Packaging	No
Transmission Rate	4.8…38.4 kbps for Modbus serial RJ450.3...115.2 kbps for Modbus serial open style (DO, D1, PE, COM)
Voltage Ramp	true
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Torque Control	true
Data Source	extrapolated product
Width Nominal	130 mm
Customs Code	8537109170
With Safety Function Safe Brake Management Sbc/Sbt	false
With Safety Function Safe Operating Stop Sos	false
With Safety Function Safe Speed Monitor Ssm	false
With Safety Function Safe Torque Off Sto	false
With Safety Function Safely Limited Speed Sls	false
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Display Type	1 LED green-yellow)status1 LED Red)Warning/Error1 LED Yellow)COM1, 1 LED Yellow)COM2
Function Available	single direction, pre-heating, power monitoring, condition monitoring, user management, ports and services hardening, security event logging, cybersecure firmware update, small motor test
Motor Power Kw	7.5 kW 230 V in line normal duty15 kW 400 V in line normal duty, 15 kW 440 V in line normal duty18.5 kW 500 V in line normal duty, 18.5 kW 525 V in line normal duty
Transmission Frame	RTU : 1 RJ45, RTU : open style (DO, D1, PE, COM)
Certificate Agency	cULus, CE, UKCA, CCC, RCM, EAC, KC
Carbon Footprint Of The End Of Life Phase C1 To C4	6.0955985733823805, 6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	85 kg CO2 eq., 85.17502398911157
Local Data Status	Publishable
Pre Comm Date	2025-03-26
Device Type	Soft starter - Soft starter
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2301004EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2412
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Product Kit Identifier	N
Data Format	8 bits, odd, even or no parity, 1 or 2 bits to stop for Modbus serial RJ458 bits, configurable odd, even or no parity for Modbus serial open style (DO, D1, PE, COM)
Device Short Name	ATS430
Internal Bypass	true
Method Of Access	slave Modbus serial
Number Of Addresses	0-247 Modbus serial
Operating Rate	10 cyc/h
Phase	3 phase
Power Loss Static Current Independent	19 W
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	soft starter
Range Of Product	Altivar Soft Starter ATS430
Service Factor	100
Supply Frequency	50...60 Hz - 20...20 %
Total Lifecycle Carbon Footprint	2 246 kg CO2 eq.
Type Of Polarization	no impedance Modbus serial
Volume Of Cooling Air	3 m3/h
With Safety Function Safe Programmable Logic	false
Database Version	2023-02
Height Nominal	273 mm
Nbr. Of Units In Pkg.	1
On Load Factor	50 %
With Safety Function Safe Direction Sdi	false
With Safety Function Safe Position Sp	false
With Safety Function Safe Stop 1 Ss1	false
With Safety Function Safely Limited Position Slp	false
With Sft Fct Safe Stop 2 Ss	false
Functional Unit Description	The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration phase with a torque control. It’s based on two phases dimmer with silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 47A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 11kW and 500V power motor of 30kW. Calculation of the environmental impacts is based on 20 years of product service lifetime. The usage profile taken into account is 50% uptime in use phase and 50% uptime in stand by phase.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	5256

Environment Attributes Main

Ambient Air Temperature For Operation	-25-40 °C (without derating), -25-40 °C (without derating)-25-40 °C (without derating), -25-40 °C (without derating)40-60 °C (with current derating of 1 % per °C above 40 °C)
Ambient Air Transport Temperature	-40-70 °C, -40-70 °C
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	2246.4266272896434
Environmental Disclosure	ENVPEP2301004EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2301004EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Operating Altitude	<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2301004EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	open type
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % without condensation or dripping water EN/IEC 60068-2-3
Pep Verification Date	2024-06-23
Psr Version	PSR-0005-ed3-EN-2023 06 06

General Attributes

Phase	3 phase
Range Of Product	Altivar Soft Starter ATS430

Product Or Component Type	soft starter

ETIM

ETIM 8	EC000640
ETIM 10	EC000640

ETIM 9	EC000640

Output Attributes

Analogue Output Type	current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm
Analogue Output Number	1
Output Current Drift	150-700 %

Relay Output Type	relay outputs R1A, R1C NOrelay outputs R1B, R1C NC, relay outputs R2A, R2C NO
Discrete Output Number	0
Relay Output Number	2

Input Attributes

Analogue Input Type	PTC1 : PTC temperature probe, PTC2 : PTC temperature probe
Discrete Input Type	STOP) digital input, 4.4 kOhm, RUN) digital input, 4.4 kOhm, DI3) digital input, 4.4 kOhm, DI4) digital input, 4.4 kOhm
Analogue Input Number	1

Discrete Input Logic	digital input STOP 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input RUN 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI3 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI4 0...< 5 V <= 2 mA > 11 V, >= 5 mA
Input Compatibility	STOP digital input level 1 PLC EN/IEC 61131-2, RUN digital input level 1 PLC EN/IEC 61131-2, DI3 digital input level 1 PLC EN/IEC 61131-2, DI4 digital input level 1 PLC EN/IEC 61131-2
Discrete Input Number	4
