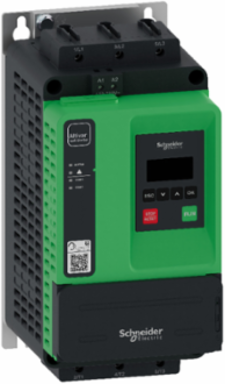

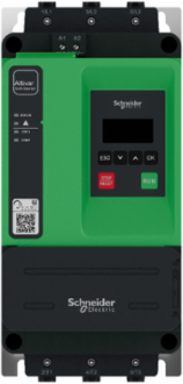

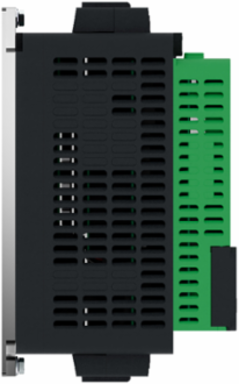

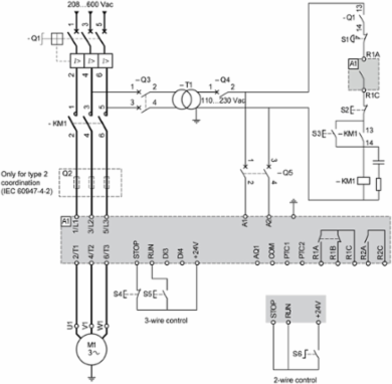

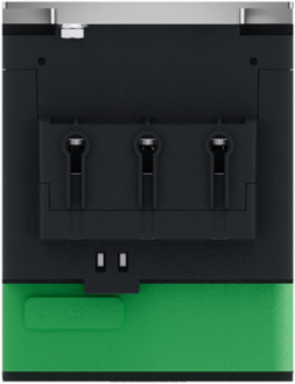

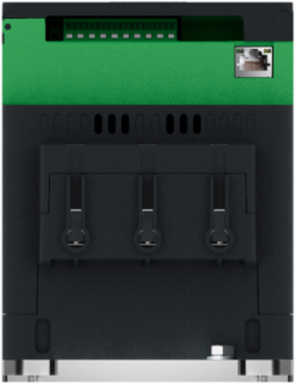

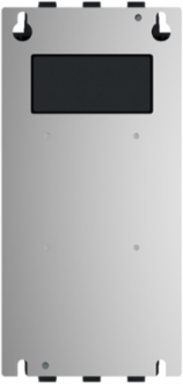

Schneider Electric ATS430D17S6 Soft starter, Altivar Soft Starter ATS430, 17A, 208 to 600V AC, control supply 110 to 230V AC
- MPN: ATS430D17S6
- PPN: SCH-ATS430D17S6
CAD
$1104.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Soft starter, Altivar Soft Starter ATS430, 17A, 208 to 600V AC, control supply 110 to 230V AC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States

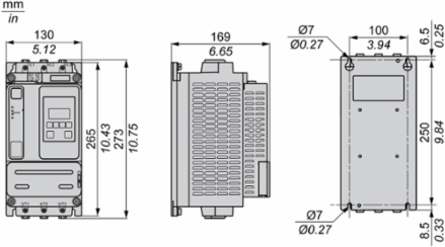

Depth169 mm
Communications & Management Attributes
- Communication Port Protocol
- RJ45, open style (DO, D1, PE, COM), Modbus serial
Complementary Attributes
- Integrated Motor Overload Protection
- true
- Maximum Switching Current
- relay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1
Maximum Horse Power Rating3 hp 208 V normal duty5 hp 230 V normal duty10 hp 460 V normal duty15 hp 575 V normal duty
Minimum Switching Current100 mA 12 V DC relay outputs
Important Information Attributes
- Connector Type
- 1 RJ45, open style
- Electromagnetic Compatibility
- conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-18electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5immunity to conducted disturbances radio-frequency level 3 conforming to IEC 61000-4-6
- Marking
- cULus, CE, UKCA, CCC, RCM, EAC, KC
- Protection Type
- phase failure mains, thermal protection mains, thermal protection startercurrent overload motor, motor underload motor, excessive acceleration time motor, motor phase loss detection motor, protection against line phase inversion mains, external thermal protection motor, short-circuit between motor phase and earth motor
- Utilisation Category
- AC-3A, AC-53A
- [Ue] Rated Operational Voltage
- 208 V 3 hp normal duty230 V 4 kW normal duty, 230 V 5 hp normal duty400 V 7.5 kW normal duty, 440 V 7.5 kW normal duty460 V 10 hp normal duty500 V 9 kW normal duty, 525 V 9 kW normal duty575 V 15 hp normal duty, 208...600 V AC - 15...10 %)
- Maximum Acceleration Under Vibratory Load (During Storage)
- 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.7599803941314599, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.1359103616929118
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 047 kg CO2 eq., 2046.5471082727586
- Local Publishable Date
- 2026-03-26
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Apparent Power
- 70 VA
- Device Connection
- in line
- Display Screen Available
- true
- Material Declaration
- true
- Network Frequency
- 50-60 Hz
- Operating Position
- vertical +/- 10 degree
- Overload Current
- 400 % Ie for 13 s
- Power Loss Per Device Current Dependent
- 2 W
- Power Losses
- 133 W during starting at 40 °C at 400% In
- Product Destination
- asynchronous motors
- Product Specific Application
- standard industrial machines
- Returnability
- Yes
- Software Version
- v6.1
- Sustainable Packaging
- No
- Transmission Rate
- 4.8…38.4 kbps for Modbus serial RJ450.3...115.2 kbps for Modbus serial open style (DO, D1, PE, COM)
- Voltage Ramp
- true
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Torque Control
- true
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration phase with a torque control. It’s based on two phases dimmer with silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 47A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 11kW and 500V power motor of 30kW. Calculation of the environmental impacts is based on 20 years of product service lifetime. The usage profile taken into account is 50% uptime in use phase and 50% uptime in stand by phase.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 4993.2
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 130 mm
- [Uc] Control Circuit Voltage
- 24 V DC110...230 V AC 50-60 Hz - 15...10 %
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Maximum Acceleration Under Shock Load (During Storage)
- 10 gn at 11 ms
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 1 gn at 13…200 Hz
- Maximum Deflection Under Vibratory Load (During Storage)
- 1.75 mm at 2...9 Hz
- On-load Factor
- 50 %
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 4.018 kg
- Warranty (In Months)
- 18
- Customs Code
- 8537109170
Display Type1 LED green-yellow)status1 LED Red)Warning/Error1 LED Yellow)COM1, 1 LED Yellow)COM2
Function Availablesingle direction, pre-heating, power monitoring, condition monitoring, user management, ports and services hardening, security event logging, cybersecure firmware update, small motor test
Motor Power Kw4 kW 230 V in line normal duty7.5 kW 400 V in line normal duty, 7.5 kW 440 V in line normal duty9 kW 500 V in line normal duty, 9 kW 525 V in line normal duty
Transmission FrameRTU : 1 RJ45, RTU : open style (DO, D1, PE, COM)
Certificate AgencycULus, CE, UKCA, CCC, RCM, EAC, KC
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Maximum Acceleration Under Vibratory Load (During Transport)1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]6.0955985733823805, 6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]85 kg CO2 eq., 85.17502398911157
Local Data StatusPublishable
Pre Comm Date2025-03-26
Stocking FlagN
Device TypeSoft starter - Soft starter
TraceabilityYes
Average Life Duration10 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2301004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2412
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Data Format8 bits, odd, even or no parity, 1 or 2 bits to stop for Modbus serial RJ458 bits, configurable odd, even or no parity for Modbus serial open style (DO, D1, PE, COM)
Device Short NameATS430
Internal Bypasstrue
Method Of Accessslave Modbus serial
Number Of Addresses0-247 Modbus serial
Operating Rate10 cyc/h
Phase3 phase
Power Loss Static Current Independent19 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesoft starter
Range Of ProductAltivar Soft Starter ATS430
Service Factor100
Supply Frequency50...60 Hz - 20...20 %
Total Lifecycle Carbon Footprint2 139 kg CO2 eq.
Type Of Polarizationno impedance Modbus serial
Volume Of Cooling Air3 m3/h
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP2301004EN
Pep Verification Date2024-06-23
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal273 mm
[Ie] Rated Operational Currentnormal duty 17 A in line 40 °C)
[Ui] Rated Insulation Voltage600 V
Maximum Acceleration Under Shock Impact (During Operation)15 gn at 11 ms
Maximum Acceleration Under Shock Load (During Transport)10 gn at 11 ms
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)1.75 mm at 2...9 Hz
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)false
With Safety Function Safely Limited Speed (Sls)false
Nbr. Of Units In Pkg.1
Take-backNo
[In] Rated Current Pwr Loss Specifctn217 A
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-40 °C (without derating), -25-40 °C (without derating)-25-40 °C (without derating), -25-40 °C (without derating)40-60 °C (with current derating of 1 % per °C above 40 °C)
- Ambient Air Transport Temperature
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2301004EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- open type
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Pep Verification Date
- 2024-06-23
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m
Recycled Metal Content At Cr Level0 %
Carbon Footprint2138.713621591077
Environmental DisclosureENVPEP2301004EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2301004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Soft Starter ATS430
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Analogue Output Type
- current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm
- Analogue Output Number
- 1
- Output Current Drift
- 150-700 %
Relay Output Typerelay outputs R1A, R1C NOrelay outputs R1B, R1C NC, relay outputs R2A, R2C NO
Discrete Output Number0
Relay Output Number2
Input Attributes
- Analogue Input Type
- PTC1 : PTC temperature probe, PTC2 : PTC temperature probe
- Discrete Input Type
- STOP) digital input, 4.4 kOhm, RUN) digital input, 4.4 kOhm, DI3) digital input, 4.4 kOhm, DI4) digital input, 4.4 kOhm
- Analogue Input Number
- 1
Discrete Input Logicdigital input STOP 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input RUN 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI3 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI4 0...< 5 V <= 2 mA > 11 V, >= 5 mA
Input CompatibilitySTOP digital input level 1 PLC EN/IEC 61131-2, RUN digital input level 1 PLC EN/IEC 61131-2, DI3 digital input level 1 PLC EN/IEC 61131-2, DI4 digital input level 1 PLC EN/IEC 61131-2
Discrete Input Number4
Batteries & Runtime Attributes
- Removable Battery
- Yes
