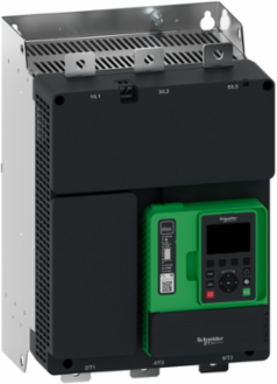

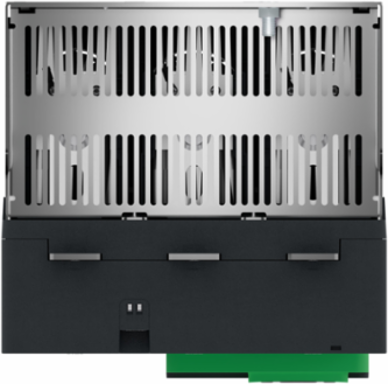

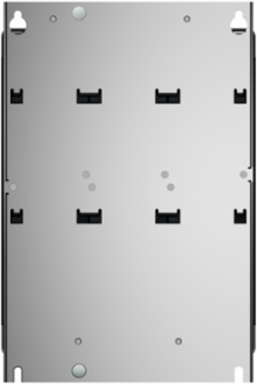

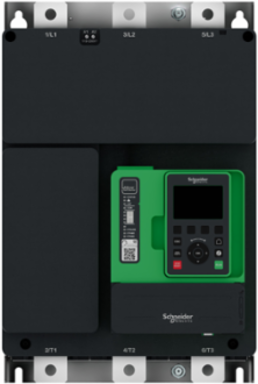

Schneider Electric ATS490C66Y Soft starter, Altivar Soft Starter ATS490, 660A, 208 to 690V AC, control supply 110 to 230V AC
- MPN: ATS490C66Y
- PPN: SCH-ATS490C66Y
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Soft starter, Altivar Soft Starter ATS490, 660A, 208 to 690V AC, control supply 110 to 230V AC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Indonesia, Philippines, Singapore, United States

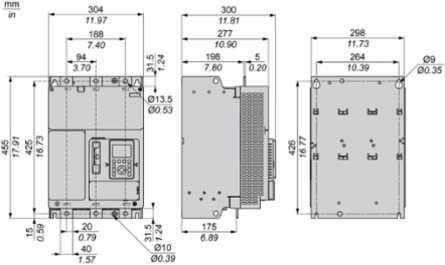

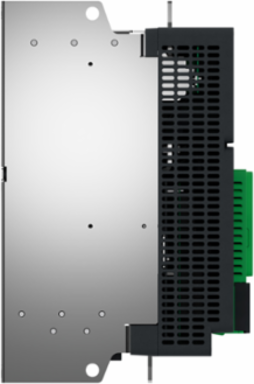

Depth300 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serialModbus serial, Modbus TCP/EtherNet/IP
Complementary Attributes
- Maximum Horse Power Rating
- 500 hp 575 V heavy duty200 hp 208 V normal duty250 hp 230 V normal duty500 hp 460 V normal duty600 hp 575 V normal duty, 200 hp 230 V heavy duty, 400 hp 460 V heavy duty
- Maximum Permanent Current
- 590 A at 40 °C heavy duty
- Minimum Switching Current
- 100 mA 12 V DC relay outputs
Integrated Motor Overload Protectiontrue
Maximum Switching Currentrelay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1
Important Information Attributes
- Connector Type
- 1 RJ45 for connecting Modbus serial, 1 RJ45 for connecting Modbus TCP/EtherNet/IP
- Display Type
- 1 LED green and yellow)status1 LED Red)Warning/Error1 LED Yellow)ASF, 1 LED Yellow)COM, 1 LED green and yellow)NET11 LED green and red)NET2, 1 LED green and red)NET3, 1 LED green and yellow)NET4, 1 LED green and red)RUN/ERR (Module Status), 1 LED green and yellow)Ethernet link, 1 LED green and red)ETH MS (Ethernet port configuration status), 1 LED green and red)Eth NS (Ethernet network status)
- Function Available
- pre-heating, smoke extraction, second motor set, Deceleration with torque control, Braking, boost, Line contactor control, reverse contactor control, anti-jam, jog, borehole pump starting, condition monitoring, power monitoring, cybersecure firmware update
- Motor Power Kw
- 355 kW 440 V in the motor supply line heavy duty560 kW 690 V in the motor supply line heavy duty400 kW 400 V to the motor delta terminals heavy duty, 355 kW 400 V in the motor supply line normal duty400 kW 440 V in the motor supply line normal duty630 kW 660 V in the motor supply line normal duty, 630 kW 690 V in the motor supply line normal duty, 160 kW 230 V in the motor supply line heavy duty, 315 kW 400 V in the motor supply line heavy duty, 400 kW 500 V in the motor supply line heavy duty, 400 kW 525 V in the motor supply line heavy duty, 560 kW 660 V in the motor supply line heavy duty, 315 kW 230 V to the motor delta terminals normal duty, 500 kW 400 V to the motor delta terminals normal duty
- Protection Type
- phase failure mainsthermal protection starter, thermal protection motor, current overload motor, motor underload motor, excessive acceleration time motor, motor phase loss detection motor, protection against line phase inversion mains, external thermal protection motor, protection delta inside wiring starter, short-circuit between motor phase and earth motor
- Transmission Rate
- 4.8…38.4 kbps, 100 BASE TX
- Certificate Agency
- CE, cULus, UKCA, RCM, CCC, DNV, ATEX, EAC, KC
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
- Maximum Acceleration Under Vibratory Load (During Transport)
- 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 65.88132628918824, 66 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 516 kg CO2 eq., 515.6116659383605
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Apparent Power
- 280 VA
- Device Short Name
- ATS490
- Internal Bypass
- true
- Method Of Access
- slave Modbus serial
- Operating Position
- vertical +/- 10 degree
- Overload Current
- 400 % Ie for 13 s
- Power Loss Per Device Current Dependent
- 205 W
- Power Losses
- 9247 W during starting at 40 °C at 400% Ie
- Product Destination
- asynchronous motors
- Product Specific Application
- process and infrastructures
- Returnability
- Yes
- Safety Level
- security level (SL) 1 IEC 62443-4-2
- Software Version
- v6.1
- Sustainable Packaging
- No
- Type Of Polarization
- no impedance Modbus serial

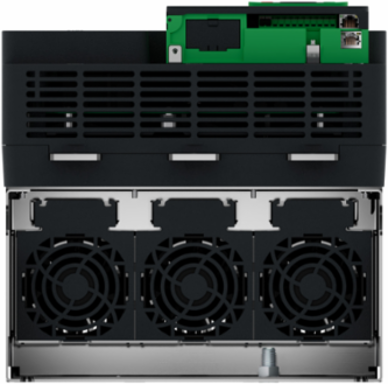

- Volume Of Cooling Air
- 238 m3/h
- With Safety Function Cybersecurity
- true
- Torque Control
- true
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration and deceleration phase with a torque control. It’s based on three phases dimmer with Silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 660A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 200kW and 690V power motor of 630kW. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 2,16% uptime in active phase, 47,84% uptime in stand by phase and 50% in control phase.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 85
- Width Nominal
- 304 mm
- [Uc] Control Circuit Voltage
- 24 V DC110...230 V AC 50-60 Hz - 15...10 %
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Maximum Acceleration Under Shock Load (During Storage)
- 10 gn at 11 ms
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 1 gn at 13…200 Hz
- Maximum Deflection Under Vibratory Load (During Storage)
- 1.75 mm at 2...9 Hz
- On-load Factor
- 50 %
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 39.500 kg
- Warranty (In Months)
- 18
- Customs Code
- 8537109170

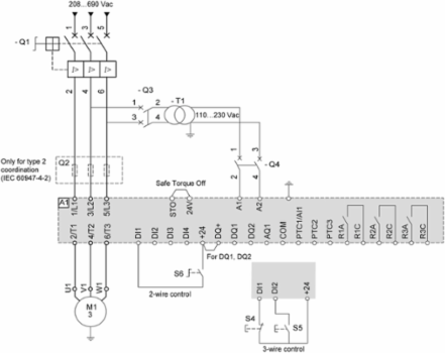

Device Connectionin the motor supply line, inside delta
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-18electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5immunity to conducted interference caused by radio-electrical fields level 3 conforming to EN/IEC 61000-4-6
MarkingCE, cULus, UKCA, RCM, CCC, ATEX, EAC, KC
Option Cardcommunication module CANopen daisy chain, communication module CANopen Sub-D, communication module CANopen open style, communication module Profibus DP V1, communication module PROFINET
Transmission FrameRTU, TCP/UDP
Utilisation CategoryAC-3A, AC-53A
[Ue] Rated Operational Voltage440 V 355 kW in the motor supply line heavy duty690 V 560 kW in the motor supply line heavy duty, 230 V 200 hp heavy duty575 V 500 hp heavy duty, 400 V 355 kW in the motor supply line normal duty440 V 400 kW in the motor supply line normal duty660 V 630 kW in the motor supply line normal duty, 690 V 630 kW in the motor supply line normal duty, 230 V 160 kW in the motor supply line heavy duty, 400 V 315 kW in the motor supply line heavy duty, 500 V 400 kW in the motor supply line heavy duty, 525 V 400 kW in the motor supply line heavy duty, 660 V 560 kW in the motor supply line heavy duty208 V 200 hp normal duty, 230 V 250 hp normal duty460 V 500 hp normal duty575 V 600 hp normal duty, 460 V 400 hp heavy duty, 208...690 V AC - 15...10 %)
Maximum Acceleration Under Vibratory Load (During Storage)1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Carbon Footprint Of The Distribution Phase [A4]7.397142502879543, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]10 kg CO2 eq., 9.746973643254218
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 318 kg CO2 eq., 6317.504064147673
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeSoft starter - Soft starter
TraceabilityYes
Average Life Duration10 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311028EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2421
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Data Format8 bits, configurable odd, even or no parity 1or 2 stop
Display Screen Availabletrue
Material Declarationtrue
Number Of Addresses0-247 Modbus serial
Operating Rate10 cyc/h
Phase3 phase
Power Loss Static Current Independent19 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesoft starter
Range Of ProductAltivar Soft Starter ATS490
Safety FunctionSTO (safe torque off): SIL 1 conforming to IEC 61508STO (safe torque off): PL c/category 2 conforming to ISO 13849
Service Factor100
Supply Frequency50...60 Hz - 20...20 %
Total Lifecycle Carbon Footprint6 916 kg CO2 eq.
UpdatabilityUpgradeable through digital modules
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP2311028EN
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal455 mm
[Ie] Rated Operational Currentnormal duty 660 A in line 40 °C)
[Ui] Rated Insulation Voltage690 V
Maximum Acceleration Under Shock Impact (During Operation)15 gn at 11 ms
Maximum Acceleration Under Shock Load (During Transport)10 gn at 11 ms
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)1.75 mm at 2...9 Hz
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)false
Nbr. Of Units In Pkg.1
Take-backNo
[In] Rated Current Pwr Loss Specifctn2660 A
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-40 °C (without derating), -25-40 °C (without derating)-25-40 °C (without derating), -25-40 °C (without derating)40-60 °C (with current derating of 1 % per °C above 40 °C)
- Ambient Air Transport Temperature
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 6916.141172521355
- Environmental Disclosure
- ENVPEP2311028EN
- Ip Degree Of Protection
- IP00
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Pep Verification Date
- 2024-08-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2311028EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311028EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Soft Starter ATS490
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Analogue Output Type
- current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm
- Relay Output Type
- relay outputs R1A, R1C NO, relay outputs R2A, R2C NO, relay outputs R3A, R3C NO
- Discrete Output Number
- 2
- Output Current Drift
- 150-700 %
Discrete Output Typeprogrammable digital output DQ1 <= 30 V 100 mA, programmable digital output DQ2 <= 30 V 100 mA
Analogue Output Number1
Output Compatibilityopen collector level 1 PLC IEC 65A-68
Relay Output Number3
Input Attributes
- Analogue Input Type
- AI1/PTC1 : PTC/PT 100/PT 1000/KTY84 temperature probe, PTC2 : PTC/PT 100/PT 1000/KTY84 temperature probe, PTC3 : PTC/PT 100/PT 1000/KTY84 temperature probe
- Discrete Input Type
- DI1) digital input, 4.4 kOhm, DI2) digital input, 4.4 kOhm, DI3) digital input, 4.4 kOhm, DI4) digital input, 4.4 kOhmSTO) digital input, > 1 kOhm
- Analogue Input Number
- 1
Discrete Input Logicdigital input DI1 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI2 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI3 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI4 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input STO 0...< 5 V <= 2 mA > 11 V, >= 5 mA
Input CompatibilityDI1 discrete input level 1 PLC EN/IEC 61131-2, DI2 discrete input level 1 PLC EN/IEC 61131-2, DI3 discrete input level 1 PLC EN/IEC 61131-2, DI4 discrete input level 1 PLC EN/IEC 61131-2, STO discrete input level 1 PLC EN/IEC 61131-2
Discrete Input Number5
Batteries & Runtime Attributes
- Removable Battery
- Yes
