Altistart 01 Soft Starter 25A, 110-480V, 2.2-11kW
Schneider Electric

Schneider Electric ATS01N125FT Altistart 01 Soft Starter 25A, 110-480V, 2.2-11kW

  • MPN: ATS01N125FT
  • PPN: SCH-ATS01N125FT
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $417.20

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

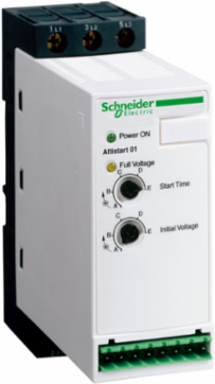

    This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 25A. This Altistart 01 can be used for a motor rated power up to 11kW or 15hp for 3-phase (110V to 480V AC) and up to 2.2kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, Indonesia
    Depth131 mm

    Complementary Attributes

    Maximum Horse Power Rating
    11 hp, 3 phase 460 V2 hp, 3 phase 210 V, 3 hp, 3 phase 210 V5 hp, 3 phase 230 V, 9 hp, 3 phase 460 V, 7.5 hp, 3 phase 230 V

    Important Information Attributes

    Persona Type Ids
    BM9, EU, OM, OM8, SC, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Connection
    screw connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuitscrew connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuitscrew connector - rigid 2 0.5...1 mm² 17 AWG control circuitscrew connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit
    Motor Power Kw
    11 kW, 3 phase 400 V3 kW, 3 phase 230 V, 4 kW, 3 phase 230 V, 9 kW, 3 phase 400 V, 7.5 kW, 3 phase 400 V, 5.5 kW, 3 phase 230 V2.2 kW, 1 phase 230 V
    Starting Time
    1 s / 1005 s / 20, adjustable from 1 to 5 s
    Certificate Agency
    C-tick, CCC, GOST, CSA, UL
    [Ue] Rated Operational Voltage
    400 V 11 kW230 V 3 kW, 230 V 4 kW, 400 V 9 kW, 400 V 7.5 kW, 230 V 5.5 kW, 230 V 2.2 kW460 V 11 hp, 230 V 5 hp, 460 V 9 hp, 230 V 7.5 hp
    Local Publishable Date
    2026-03-25
    Stocking Flag
    N
    Device Type
    Soft starter - Soft starter
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1927
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Assembly Style
    with heat sink
    Current Consumption
    125 A at nominal load
    Function Available
    integrated bypass
    Marking
    CE
    Network Frequency
    47.5...63 Hz
    Phase
    1 phase
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    soft starter
    Range Of Product
    Altistart 01
    Shock Resistance
    15 gn 11 ms EN/IEC 60068-2-27
    Supply Frequency
    50...60 Hz - 5...5 %
    Sustainable Packaging
    Yes
    Utilisation Category
    AC-53B EN/IEC 60947-4-2
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    45 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8537109170
    Persona Type NamesCharge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electromagnetic Compatibilityconducted and radiated emissions level B conforming to CISPR 11, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2EMC immunity level 3 conforming to EN 50082-1, EMC immunity level B conforming to EN 50082-2harmonics level 3 conforming to IEC 1000-3-2, harmonics level 3 conforming to IEC 1000-3-4immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3micro-cuts and voltage fluctuation conforming to IEC 61000-4-11voltage/current impulse level 3 conforming to IEC 61000-4-5
    Power Range2.2-3 kW 200-240 V 3 phase, 2.2-3 kW 200-240 V 1 phase, 4-6 kW 200-240 V 3 phase, 7-11 kW 200-240 V 3 phase, 7-11 kW 380-440 V 3 phase
    Tightening Torque0.5-0.5 N.m, 1.9-2.5 N.m
    [Uc] Control Circuit Voltage110 V AC +/- 10 % 35 mA, 24 V AC/DC +/- 10 % 30 mA240 V AC +/- 10 % 80 mA
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeATS01N1
    Device Short NameATS01
    Icl Starter Rating25 A
    Motor Starter Typesoft starter
    Operating Positionvertical +/- 10 degree
    Power Dissipation In W1 W at full load and at end of starting126 W in transient state
    Product Destinationasynchronous motors
    Product Specific Applicationsimple machine
    ReturnabilityYes
    Starting Torque30...80 % of starting torque of motor connected directly on the line supply
    Supply Voltage Limits99-528 V
    Type Of Startstart with voltage ramp
    Vibration Resistance1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    Height Nominal124 mm
    [Us] Rated Supply Voltage110...480 V - 10...10 %
    Package Weight(Lbs)398.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-50 °C (with current derating of 2 % per °C)
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Relative Humidity5-95 % without condensation or dripping water EN/IEC 60068-2-3

    General Attributes

    Phase
    1 phase
    Range Of Product
    Altistart 01
    Product Or Component Typesoft starter

    ETIM

    ETIM 8
    EC000640
    ETIM 9EC000640

    Output Attributes

    Output Voltage
    <= power supply voltage, <= power supply voltage
    Discrete Output Current2 A DC-133 A AC-15

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
