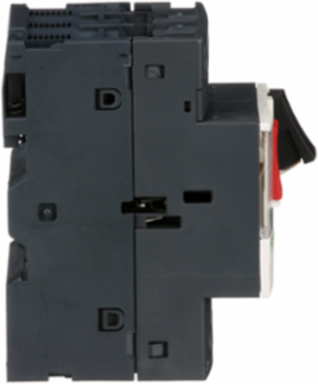

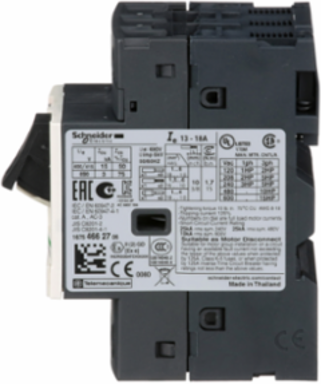

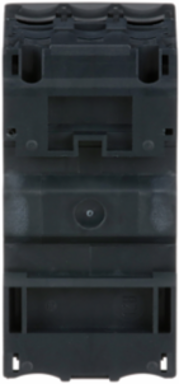

Schneider Electric GV2ME20 TeSys Deca Motor Circuit Breaker 3P 13-18A Thermal-Magnetic
- MPN: GV2ME20
- PPN: SCH-GV2ME20
CAD
$172.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 13 ampere to 18 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- Engineered with a customizable thermal-magnetic dial, this TeSys Deca manual motor starter allows you to precisely dial in overload protection between 13 and 18 Amps to perfectly match your motor's exact full-load amperage (FLA). This critical precision prevents frustrating nuisance tripping during normal industrial operations while guaranteeing an instant shutdown before phase failures or prolonged overloads can melt expensive motor windings.

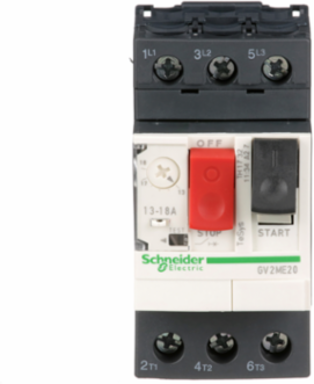

- Featuring highly visible, integrated Start/Stop push buttons, this motor protection circuit breaker (MPCB) provides a clear, lockable manual disconnect for heavy machinery, pumps, and commercial HVAC systems. This tactile, dead-front interface gives maintenance technicians an immediate way to cut power directly at the control panel, streamlining OSHA-compliant lockout/tagout (LOTO) procedures without the added expense of a separate disconnect switch.
- Designed with an ultra-compact 45mm width and secure clip-on 35mm DIN-rail compatibility, this breaker maximizes precious space inside high-density industrial enclosures. By combining robust short-circuit and thermal overload protection into a single modular footprint, panel builders can significantly reduce complex wiring time, eliminate bulky separate fuse blocks, and maintain a cleaner, more efficient electrical layout.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Thailand, United States, ZZ
Depth78.5 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 18 A
- Rated Duty
- uninterrupted IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Mounting Position
- horizontal, vertical
- Utilisation Category
- category A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
- [Ics] Rated Service Short-circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-250 % 400/415 V AC 50/60 Hz IEC 60947-2, 50 % 440 V AC 50/60 Hz IEC 60947-275 % 500 V AC 50/60 Hz IEC 60947-2, 75 % 690 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08233418348388603, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.04117841915749615
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 9 kg CO2 eq., 8.86395212531129
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- push-button
- Device Short Name
- GV2ME
- Magnetic Tripping Current
- 341-341 A
- Mechanical Robustness
- shocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
- Network Frequency
- 50/60 Hz IEC 60947-2
- Number Of Poles
- 3P
- Power Dissipation Per Pole
- 2.5 W
- Product Name
- TeSys GV2
- Range
- TeSys Deca
- Software Version
- v6.2.4
- Sustainable Packaging
- Yes
- Tightening Torque
- 1.7 N.m screw clamp terminal
- Trip Unit Technology
- thermal-magnetic
- R Thermal Protection Adj Range 3
- 13-18 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 98.55
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 89 mm
- [Ith] Conventional Free Air Thermal Current
- 18 A IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536507000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with adaptor plate)
Range Of ProductTeSys GV2, TeSys Deca
Certificate AgencyCCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
Connections - Terminalspower circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4527026902683291, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.634976413467982
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI121004
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV2ME
Device Applicationmotor protection
Fire Resistance960 °C IEC 60695-2-11
Mechanical Durability100000 cycles
Motor Power Kw7.5-7.5 kW 400/415 V AC 50/60 Hz9-9 kW 500 V AC 50/60 Hz15-15 kW 690 V AC 50/60 Hz
Network TypeAC
Phase Failure Sensitivityyes IEC 60947-4-1
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemotor circuit breaker
ReturnabilityYes
Suitability For Isolationyes IEC 60947-1
Thermal Protection Adjustment Range13-18 A IEC 60947-2
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1210004EN
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %49
Width Nominal45 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Package Weight(Lbs)280.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1210004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.075143831688983
Circularity ProfileENVEOLI121004
Environmental DisclosureENVPEP1210004EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
