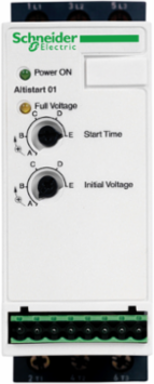

Schneider Electric ATS01N112FT Altistart 01 Soft Starter, 12A, 110-480V, 1.5-5.5kW, 45mm Wide
- MPN: ATS01N112FT
- PPN: SCH-ATS01N112FT
CAD
$367.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 12A. This Altistart 01 can be used for a motor rated power up to 5.5kW or 7.5hp for 3-phase (110V to 480V AC) and up to 1.5kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, United States |
|---|
| Depth | 131 mm |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 3 hp, 3 phase 230 V1.5 hp, 3 phase 210 V7.5 hp, 3 phase 460 V |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, OM, OM8, SC, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | screw connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuitscrew connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuitscrew connector - rigid 2 0.5...1 mm² 17 AWG control circuitscrew connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit |
| Starting Time | 1 s / 1005 s / 20, adjustable from 1 to 5 s |
| Certificate Agency | C-tick, CCC, UL, CSA, GOST |
| [Ue] Rated Operational Voltage | 230 V 2.2 kW400 V 5.5 kW, 230 V 1.5 kW, 230 V 3 hp460 V 7.5 hp |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | Y |
| Device Type | Soft starter - Soft starter |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1927 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Assembly Style | with heat sink |
| Current Consumption | 60 A at nominal load |
| Function Available | integrated bypass |
| Marking | CE |
| Motor Starter Type | soft starter |
| Operating Position | vertical +/- 10 degree |
| Power Dissipation In W | 1 W at full load and at end of starting61 W in transient state |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | soft starter |
| Range Of Product | Altistart 01 |
| Shock Resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Sustainable Packaging | Yes |
| Utilisation Category | AC-53B EN/IEC 60947-4-2 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 45 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
| Persona Type Names | Charge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electromagnetic Compatibility | conducted and radiated emissions level B conforming to CISPR 11, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2EMC immunity level 3 conforming to EN 50082-1, EMC immunity level B conforming to EN 50082-2harmonics level 3 conforming to IEC 1000-3-2, harmonics level 3 conforming to IEC 1000-3-4immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3micro-cuts and voltage fluctuation conforming to IEC 61000-4-11voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Tightening Torque | 1.9-2.5 N.m, 0.5-0.5 N.m |
| [Uc] Control Circuit Voltage | 110 V AC +/- 10 % 35 mA, 24 V AC/DC +/- 10 % 30 mA240 V AC +/- 10 % 80 mA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | ATS01N1 |
| Device Short Name | ATS01 |
| Icl Starter Rating | 12 A |
| Motor Power Kw | 2.2 kW, 3 phase 230 V5.5 kW, 3 phase 400 V1.5 kW, 1 phase 230 V |
| Network Frequency | 47.5...63 Hz |
| Phase | 1 phase |
| Power Range | 1.1-2 kW 200-240 V 1 phase2.2-3 kW 200-240 V 3 phase4-6 kW 380-440 V 3 phase |
| Product Destination | asynchronous motors |
| Product Specific Application | simple machine |
| Returnability | Yes |
| Starting Torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Supply Voltage Limits | 99-528 V |
| Type Of Start | start with voltage ramp |
| Vibration Resistance | 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6 |
| Height Nominal | 124 mm |
| [Us] Rated Supply Voltage | 110...480 V - 10...10 % |
| Package Weight(Lbs) | 332.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-50 °C (with current derating of 2 % per °C) |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2 |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % without condensation or dripping water EN/IEC 60068-2-3 |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Altistart 01 |
| Product Or Component Type | soft starter |
|---|
ETIM
| ETIM 8 | EC000640 |
|---|
| ETIM 9 | EC000640 |
|---|
Output Attributes
| Output Voltage | <= power supply voltage, <= power supply voltage |
|---|
| Discrete Output Current | 2 A DC-133 A AC-15 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
