Altistart U01 Soft Starter 22A, 200-480V, 11kW, IP20
Schneider Electric

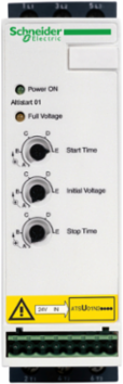

Schneider Electric ATSU01N222LT Altistart U01 Soft Starter 22A, 200-480V, 11kW, IP20

  • MPN: ATSU01N222LT
  • PPN: SCH-ATSU01N222LT
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $430.83

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Altistart U01 is a soft start/soft stop unit for 3-phase asynchronous motors. It is designed primarily for combinations with TeSys U starter-controllers. It can be used for a motor rated power up to 11kW or 15hp for 3-phase (200V to 480V AC) and up to 22A rating. It is 45mm wide, this makes it one of the smallest soft starters on the market. It can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Its protection index is IP20. It weighs 0.49kg and its dimensions are, 45mm wide, 314mm high, 170mm deep. The Altistart U01 is designed for the following simple applications like conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It complies with standards IEC/EN 60947-4-2, and carries UL, CSA, C-Tick, and CCC certifications, and CE marking. It can be easily combined with a TeSys U controller by means of the power connector VW3G4104. It is easy to install on a DIN rail. Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency. Reduced machine wear and minimized maintenance time will optimize operations. Together with TeSys Model U, it provides a unique motor starter solution.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Germany
    Depth170 mm

    Complementary Attributes

    Maximum Horse Power Rating
    5 hp, 3 phase 230 V, 7.5 hp, 3 phase 230 V10 hp, 3 phase 460 V, 15 hp, 3 phase 460 V
    Maximum Switching Voltage
    440 V relay outputs
    Maximum Switching Currentrelay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive, relay outputs 2 A 250 V AC AC-15 cos phi = 0.5 20 ms inductive
    Minimum Switching Current10 mA 6 V DC relay outputs

    Important Information Attributes

    Electrical Connection
    screw connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuitscrew connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuitscrew connector - rigid 2 0.5...1 mm² 17 AWG control circuitscrew connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit
    Motor Power Kw
    11 kW, 3 phase 400 V4 kW, 3 phase 230 V, 7.5 kW, 3 phase 400 V, 5.5 kW, 3 phase 230 V
    Tightening Torque
    1.9-2.5 N.m, 0.5-0.5 N.m
    [Ue] Rated Operational Voltage
    400 V 11 kW230 V 4 kW, 400 V 7.5 kW, 230 V 5.5 kW, 230 V 5 hp, 230 V 7.5 hp460 V 10 hp, 460 V 15 hp
    Local Publishable Date
    2026-03-25
    Stocking Flag
    N
    Device Type
    Soft starter - Soft starter
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1927
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Assembly Style
    with heat sink
    Deceleration Time Symb
    adjustable from 1 to 10 s
    Display Type
    1 LED Green)starter powered up1 LED Yellow)nominal voltage reached
    Icl Starter Rating
    22 A
    Motor Starter Type
    soft starter
    Operating Position
    vertical +/- 10 degree
    Power Dissipation In W
    2.5 W at full load and at end of starting222.5 W in transient state
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    soft starter
    Range Of Product
    Altistart U01 and TeSys U
    Shock Resistance
    15 gn 11 ms EN/IEC 60068-2-27
    Supply Frequency
    50...60 Hz - 5...5 %
    Sustainable Packaging
    Yes
    Utilisation Category
    AC-53B EN/IEC 60947-4-2
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    45 mm
    [Us] Rated Supply Voltage
    200...480 V - 10...10 %
    Package Weight(Lbs)
    554.000 g
    Warranty (In Months)
    18
    Electromagnetic Compatibilityconducted and radiated emissions level B conforming to CISPR 11, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2EMC immunity conforming to EN 50082-1, EMC immunity level B conforming to EN 50082-2harmonics level 3 conforming to IEC 1000-3-2, harmonics level 3 conforming to IEC 1000-3-4, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5, conducted and radiated emissions level 3 conforming to IEC 61000-4-6immunity to conducted interference caused by radio-electrical fields level 4 conforming to IEC 61000-4-11
    Starting Time1 s / 1005 s / 2010 s / 10, adjustable from 1 to 10 s
    Certificate AgencyC-tick, CSA, UL, CCC
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Current Consumption100 mA
    Device Short NameATSU01
    Function Availableintegrated bypass
    MarkingCE
    Network Frequency47.5...63 Hz
    Phase3 phase
    Power Range4-6 kW 200-240 V 3 phase7-11 kW 380-440 V 3 phase
    Product Destinationasynchronous motors
    Product Specific Applicationsimple machine
    ReturnabilityYes
    Starting Torque30...80 % of starting torque of motor connected directly on the line supply
    Supply Voltage Limits180-528 V
    Type Of Startstart with voltage ramp
    Vibration Resistance1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    Height Nominal314 mm
    [Uc] Control Circuit Voltage24 V DC +/- 10 %
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109170

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-50 °C (with current derating of 2 % per °C)
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Relative Humidity5-95 % without condensation or dripping water EN/IEC 60068-2-3

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altistart U01 and TeSys U
    Product Or Component Typesoft starter

    ETIM

    ETIM 8
    EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Type
    open collector logic LO1 end of starting signal, relay outputs R1A, R1C NO
    Discrete Output Current
    2 A DC-133 A AC-15
    Output Voltage<= power supply voltage, <= power supply voltage
    Discrete Output Voltage24 V 6...30 V) open collector logic

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive LI1, LI2, BOOST 13 V, >= 0.5 mA
    Discrete Input Voltage
    24...40 V
    Discrete Input Typelogic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
    Input Output Isolationgalvanic between power and control
