Altistart U01 Soft Starter for Asynchronous Motors, 32A, 200-480V, 15kW
Schneider Electric

Schneider Electric ATSU01N232LT Altistart U01 Soft Starter for Asynchronous Motors, 32A, 200-480V, 15kW

  • MPN: ATSU01N232LT
  • PPN: SCH-ATSU01N232LT
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $592.62

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

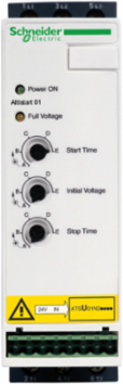

    Altistart U01 Soft Starter for Asynchronous Motors, 32A, 200-480V, 15kW

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Germany, Mexico, United States
    Depth170 mm

    Complementary Attributes

    Maximum Horse Power Rating
    10 hp, 3 phase 230 V, 20 hp, 3 phase 460 V
    Maximum Switching Voltage
    440 V relay outputs
    Maximum Switching Currentrelay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive, relay outputs 2 A 250 V AC AC-15 cos phi = 0.5 20 ms inductive
    Minimum Switching Current10 mA 6 V DC relay outputs

    Important Information Attributes

    Persona Type Ids
    BM9, EU, OM, OM8, SC, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Display Type
    1 LED Green)starter powered up, 1 LED Yellow)nominal voltage reached
    Electromagnetic Compatibility
    conducted and radiated emissions level B conforming to CISPR 11, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, EMC immunity conforming to EN 50082-1, EMC immunity level B conforming to EN 50082-2, harmonics level 3 conforming to IEC 1000-3-2, harmonics level 3 conforming to IEC 1000-3-4, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5, conducted and radiated emissions level 3 conforming to IEC 61000-4-6, immunity to conducted interference caused by radio-electrical fields level 4 conforming to IEC 61000-4-11
    Power Dissipation In W
    2.5 W at full load and at end of starting, 322.5 W in transient state
    Starting Time
    adjustable from 1 to 10 s, 1 s / 50, 10 s / 5, 5 s / 10
    Vibration Resistance
    1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    [Ue] Rated Operational Voltage
    400 V 15 kW, 230 V 7.5 kW, 230 V 10 hp, 460 V 20 hp
    Local Publishable Date
    2026-03-25
    Future Imap
    295.49
    Stocking Flag
    N
    Device Type
    Soft starter - Soft starter
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1927
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Assembly Style
    with heat sink
    Deceleration Time Symb
    adjustable from 1 to 10 s
    Function Available
    integrated bypass
    Marking
    CE
    Network Frequency
    47.5...63 Hz
    Phase
    3 phase
    Product Destination
    asynchronous motors
    Product Specific Application
    simple machine
    Returnability
    Yes
    Starting Torque
    30...80 % of starting torque of motor connected directly on the line supply
    Supply Voltage Limits
    180-528 V
    Type Of Start
    start with voltage ramp
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    45 mm
    [Us] Rated Supply Voltage
    200...480 V - 10...10 %
    Package Weight(Lbs)
    545.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Connectionscrew connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit, screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit, screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit, screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
    Motor Power Kw15 kW, 3 phase 400 V, 7.5 kW, 3 phase 230 V
    Power Range7-11 kW 200-240 V 3 phase, 15-25 kW 380-440 V 3 phase
    Tightening Torque1.9-2.5 N.m, 0.5-0.5 N.m
    Certificate AgencyUL, CCC, CSA, C-tick
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp314.93
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Current Consumption100 mA
    Device Short NameATSU01
    Icl Starter Rating32 A
    Motor Starter Typesoft starter
    Operating Positionvertical +/- 10 degree
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typesoft starter
    Range Of ProductAltistart U01 and TeSys U
    Shock Resistance15 gn 11 ms EN/IEC 60068-2-27
    Supply Frequency50...60 Hz - 5...5 %
    Sustainable PackagingYes
    Utilisation CategoryAC-53B EN/IEC 60947-4-2
    Height Nominal314 mm
    [Uc] Control Circuit Voltage24 V DC +/- 10 %
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-50 °C (with current derating of 2 % per °C)
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Relative Humidity5-95 % without condensation or dripping water EN/IEC 60068-2-3

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altistart U01 and TeSys U
    Product Or Component Typesoft starter

    ETIM

    ETIM 8
    EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Current
    2 A DC-13, 3 A AC-15
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Discrete Output Typeopen collector logic LO1 end of starting signal, relay outputs R1A, R1C NO
    Discrete Output Voltage24 V 6...30 V) open collector logic

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive LI1, LI2, BOOST 13 V, >= 0.5 mA
    Discrete Input Voltage
    24...40 V
    Discrete Input Typelogic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
    Input Output Isolationgalvanic between power and control
