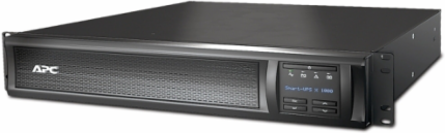

APC SMX1000I Smart-UPS X 1000VA Line Interactive, 230V, Rack/Tower 2U, Sine Wave Output
- MPN: SMX1000I
- UPC: 731304268635
- PPN: APC-SMX1000I
CAD
$1798.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X 1000VA Line Interactive, 230V, Rack/Tower 2U, Sine Wave Output
Features
- Auto recognition of external batteries — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- EPO — Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Multiple switched outlet groups — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Plug-and-Play external batteries — Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

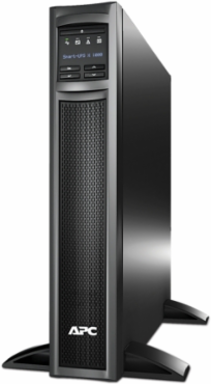

- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity, VA
- 1000 VA
- Nominal Output Voltage
- 230 V
- Waveform Type
- Sine wave
- Switched Outlet Groups
- 2
- Input Voltage Range
- 160 - 286 V
- Input Connection Type
- IEC320 C14
- Height
- 8.9 cm (3.5 in)
- Depth
- 49.0 cm (19.0 in)
- Rack Height
- 2U
- Replacement Battery
- APCRBC115
- Control Panel
- Alpha-numeric LCD display with LED status indicators
- Regulatory Compliance
- CE, EAC, RCM, VDE
- Color
- Black
Power Capacity, W800 W
Output Frequency Range47-53 Hz (50 Hz nominal), 57-63 Hz (60 Hz nominal)

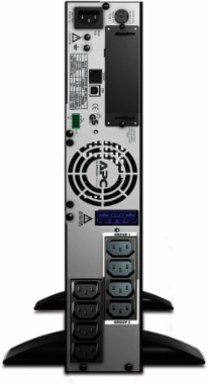

Output Connections(8) IEC320 C13, (1) IEC320 C19
Nominal Input Voltage230 V
Input Frequency50/60 Hz ±3 Hz (auto sensing)
TopologyLine interactive
Width43.2 cm (17.0 in)
Net Weight22.9 kg (50.3 lb)
Battery TypeMaintenance-free sealed lead-acid battery with suspended electrolyte
Interface PortsSerial (RJ45), USB, SmartSlot
Emergency Power Off (EPO)Yes
RoHSCompliant
