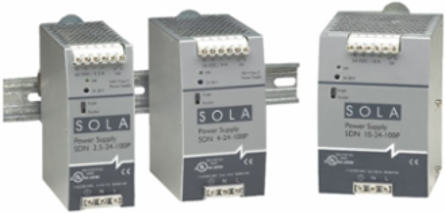

SolarHD SDN1024100P DIN Rail Power Supply 60-240 W, 12/24/48 Vdc, -10°C to +60°C Operation
SolarHD SDN1024100P DIN Rail Power Supply 60-240 W, 12/24/48 Vdc, -10°C to +60°C Operation
- MPN: SDN1024100P
- PPN: SHD-SDN1024100P
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$719.12/ EA
Description
SDN-P™ DIN rail power supplies provide sag immunity, transient suppression and noise tolerance to handle the most demanding applications. Power factor correction meets European directives, while hazardous location approvals and optional redundant accessories provide the flexibility to suit a wide range of application needs and environments. SDN-P DIN rail power supplies have a wide operational temperature range, high tolerance to shock and vibration and a rugged design.
Features
- cULus, cRUus, CE, Sag Immunity, RoHS
- Power Factor Correction (per EN61000-3-2)
- Auto Select 115/230 Vac, 50/60 Hz Input
- Adjustable Voltage
- Parallel Capability standard on all units
- Indefinite short circuit, overvoltage and overtemperature protection. -10°C to +60°C operation without derating
- Powers high inrush loads without shutdown or foldback
- Easy installation. Large, rugged, accessible, multiple connection screw terminations. Narrow width on rail for space critical applications
- Highly efficient >90% switching technology
Specifications
Specifications
- UL Recognized Component, Haz. Loc.,
- Class I, Division 2, Groups A, B, C, D
- Input Voltage Range
- 115-230 Vac, 90-375 Vdc
- Output Power
- 60-240 W
- Overload Capability
- < 16-60 Vdc
- Number of Phases
- Single
Hertz47-63 Hz
Operating Temperature-10°C to +60°C
Output Voltage Range12, 24, 48 Vdc
Status IndicatorVisual: Green LED, DC OK
MountingDIN TS35/7.5 or TS35/15
Downloads
