Schneider Electric SSM1A312BD single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 600V AC

single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 600V AC
single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 600V AC
single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 600V AC
single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 600V AC
  • MPN: SSM1A312BD
  • PPN: SCH-SSM1A312BD

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$73.65/ EA

Description

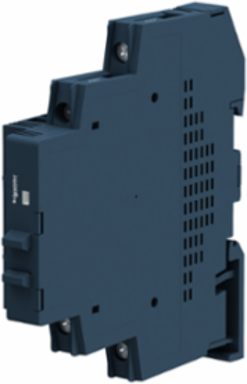

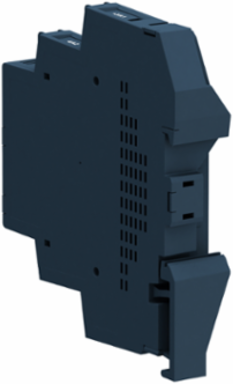

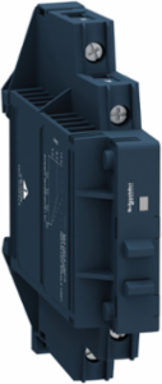

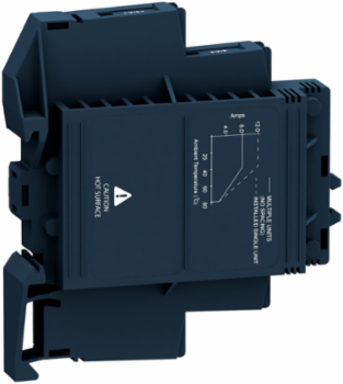

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Environment

Product Certifications
CSA || UL
Standards
IEC 60950-1 || IEC 61000 || IEC 62314
Dielectric Strength
4 kV AC input/output || 4 kV AC input or output to case
Ip Degree Of Protection
IP20
Ambient Air Temperature For Storage
-30-100 °C
Ambient Air Temperature For Operation-30-80 °C
Pollution Degree2
MarkingCE
Flame RetardanceV0 UL 94

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1307069EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity Profile
ENVEOLI1307069EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Cos Phi
0.5-0.5 with maximum load)

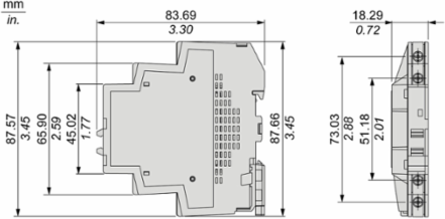

Height
90.3 mm
Motor Power Hp
0.33 hp 40 °C 240 V AC
Insulation Resistance
1000 MOhm 500 V DC
Maximum I²T For Fusing
2560 A².s 10 ms 50 Hz || 2330 A².s 8.33 ms 60 Hz
Connections - Terminals
screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
Response Time
0.5 cycle turn-on) || 0.5 cycle turn-off)
Net Weight
0.09 kg
Maximum Leakage Current
0.2 mA off-state
Dv/Dt
500 V/µs off-state at maximum voltage
Maximum Switching Voltage
1 V DC turn-off
Capacitance Unbalance
10 pF input/output
Width
18 mm
Overvoltage Category
III
[Uc] Control Circuit Voltage4...32 V DC
Output Voltage48...600 V AC
Tightening Torque0.5...0.8 N.m input || 0.5...0.8 N.m output
Mounting Supportsymmetrical DIN rail
Maximum Voltage Drop<1.3 V on-state
Surge Current715 A 16.6 ms || 750 A 20 ms
Load Current0.15-12 A
Minimum Switching Voltage4 V DC turn-on
Absolute Maximum Voltage1200 V
Local Signallinginput status LED green)
Solid State Output TypeSCR output || zero voltage switching
[In] Rated Current12 A
Input Current Limits9-11 mA
Depth83.7 mm

Specifications

Range Of Product
Harmony Solid State Relays
Product Or Component Type
solid state relay up to 20 A
Number Of Channels
1
Output Switching Modezero voltage switching
Network Number Of Phases1 phase
Device Short NameSSM
