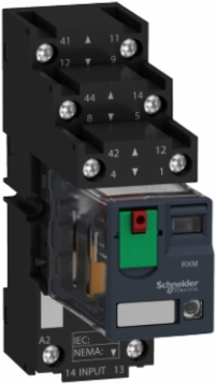

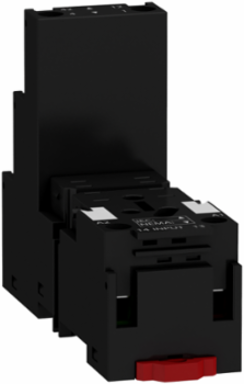

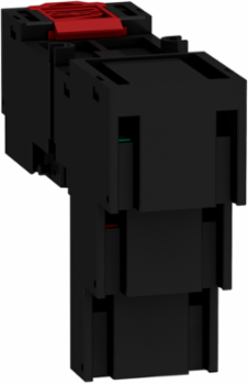

Schneider Electric RXZE2S108M Harmony Electromechanical Relay Socket, 250V AC, 12A, DPDT, IP20

MPN: RXZE2S108M
PPN: SCH-RXZE2S108M

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$14.08

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Features

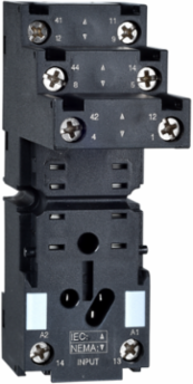

This is a professional-grade, 8-pin separate contact socket designed for the Schneider Harmony RXM (Miniature) relay series. It acts as the electrical and mechanical interface, allowing you to mount and wire 2-pole relays into an industrial control panel or automation system.

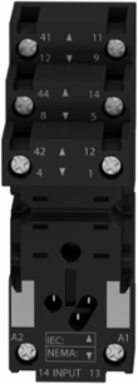

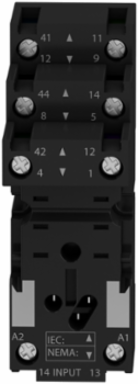

The "S" in the part number indicates a separate contact layout. Unlike "mixed" sockets where input and output terminals are interspersed, this design physically separates the coil terminals from the contact terminals (typically coil on the bottom, contacts on the top). This simplifies troubleshooting and wiring by clearly isolating the control side from the load side.
This socket is specifically designed for 2-pole C/O (DPDT) miniature relays, such as the RXM2AB series. The 8-pin receptacle ensures a high-pressure, vibration-resistant connection, maintaining circuit integrity even in high-motion environments like conveyor systems or mobile machinery.

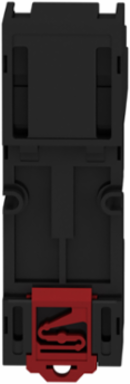

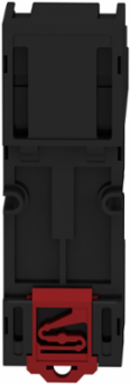

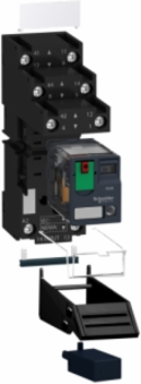

The RXZE2S108M features a slim profile, making it highly space-efficient for high-density DIN rail layouts. It snaps onto standard 35mm DIN rails or can be screw-mounted directly to a backplate. It also includes a slot for an optional plastic or metal maintaining clamp to ensure the relay stays seated during transport or heavy vibration.
This socket is rated for a conventional thermal current of 12 Amps and a voltage of up to 250V. It uses robust screw-clamp terminals that can accommodate wires up to 14 AWG, providing a secure, gas-tight connection suitable for both low-power signaling and standard motor control circuits.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Mexico, Singapore, United States

Physical Attributes

Wire Stripping Length	8 mm

Complementary Attributes

Line Rated Current	12 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	Harmony Electromechanical Relays, Harmony Timer Relays
Certificate Agency	CSA, Lloyd's, UL
Connections - Terminals	screw connectors, screw connectors, 1 x 0.34...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endscrew connectors, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew connectors, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew connectors, 2 x 0.25...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1333272820161698, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.38177045515926616
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Terminal Arrangement	separate
Device Short Name	RXZ
Fixing Mode	by screw (panel)clip-on (35 mm symmetrical DIN rail)
Marking	CE
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Shape Of Pin	flat
Sustainable Packaging	Yes
Pep Code	ENVPEP1511021EN
Pep Verification Date	2025-04-14
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.

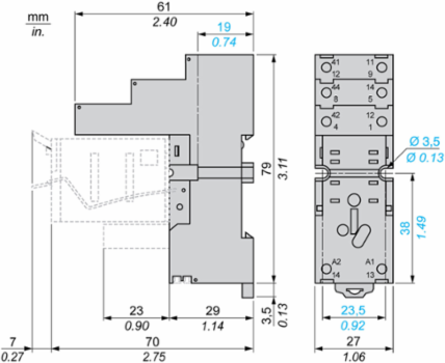

Width Nominal	27 mm
[Uimp] Rated Impulse Withstand Voltage	4 kV
Package Weight(Lbs)	49.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Tightening Torque	< 1 N.m M3, < 1 N.m M3< 1 N.m M3, < 1 N.m M3
[Ue] Rated Operational Voltage	< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL
Carbon Footprint Of The Distribution Phase [A4]	0.03994388199520318, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0002885990912672079
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	N
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	RXZ
Contacts Type And Composition	2 C/O
Dielectric Strength	2500 V
Group Of Product	RXM_2_C/O_CON_SEP_FLAT
Overvoltage Category	III
Product Or Component Type	socket
Sale Per Indivisible Quantity	10
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	0.6 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT with a rating of 10A. This product is space-saving design which helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere.It is compatible with plug in relay and it has life span of 20 years and adhering to international standard IEC 61984.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %	46
[Ith] Conventional Free Air Thermal Current	12 A
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

Ambient Air Temperature For Operation	-40-55 °C, -40-55 °C
Product Compatibility	plug-in relay RXM 2 C/O, plug-in relay REXL 2 C/O
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP1511021EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-04-14
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.5553302182619063
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1511021EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
