Schneider Electric SSM1A36BDR Harmony Solid State Relay, 6A, 4-32V DC Input, 48-600V AC Output
- MPN: SSM1A36BDR
- PPN: SCH-SSM1A36BDR
CAD
$66.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

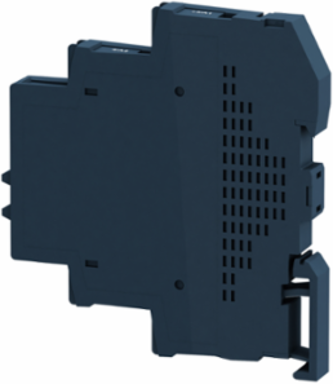

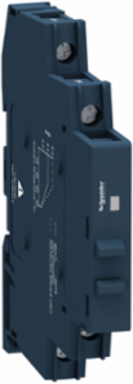

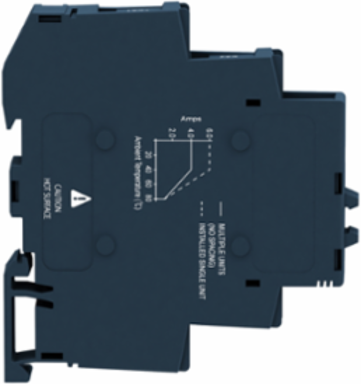

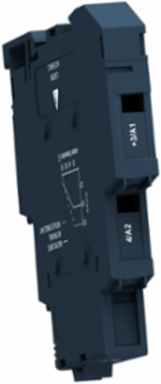

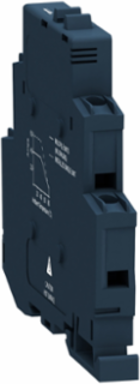

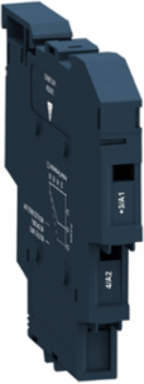

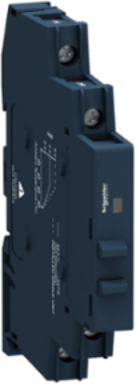

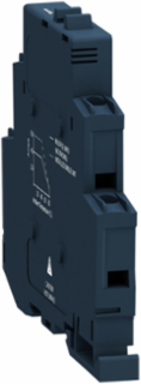

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications

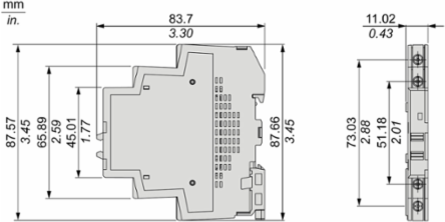

Key Specifications
| Country of Origin | France, Mexico |
|---|
| Depth | 83.7 mm |
|---|
Complementary Attributes
| Maximum Voltage Drop | <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state |
|---|---|
| Line Rated Current | 6 A |
| Maximum Leakage Current | 0.1 mA off-state |
| Minimum Switching Voltage | 4 V DC turn-on |
| Absolute Maximum Voltage | 1200 V |
|---|---|
| Maximum Horse Power Rating | 0.16 hp 40 °C 240 V AC |
| Maximum Switching Voltage | 1 V DC turn-off |
| Rated Current | 6 A |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Control Circuit Voltage | 4...32 V |
| [Uc] Control Circuit Voltage | DC, 4...32 V |
| Maximum I²T For Fusing | 410 A².s for 10 ms at 50 Hz, 375 A².s for 8.33 ms at 60 Hz |
| Local Publishable Date | 2026-04-09 |
| Stocking Flag | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Control Type | without test button |
| Device Short Name | SSM |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Local Signalling | LED (green) for input status |
| Mounting Support | symmetrical DIN rail |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | modular DIN rail relay |
| Response Time | 0.5 cycle (turn-off)0.1 ms (turn-on) |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP1307069EN |
| Width Nominal | 11 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490075 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 0.5...0.8 N.m for input, 0.5...0.8 N.m for output |
| Certificate Agency | CSA, UL |
| Connections - Terminals | screw terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1307069EN |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Flame Retardance | V0 conforming to UL 94 |
| Load Current | 0.15-6 A |
| Marking | CE |
| Number Of Channels | 1 |
| Phase | 1 phase |
| Product Configuration Type | relay configuration |
| Range Of Product | Harmony Solid State Relays |
| Returnability | Yes |
| Output Voltage 35 | 48...600 V AC |
| Height Nominal | 90.3 mm |
| Dv/Dt | 500 V/µs off-state at maximum voltage |
| Package Weight(Lbs) | 67 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -30-80 °C, -30-80 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1307069EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1307069EN |
| Ambient Air Temperature For Storage | -30-100 °C, -30-100 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1307069EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Harmony Solid State Relays |
| Product Or Component Type | modular DIN rail relay |
|---|
ETIM
| ETIM 8 | EC002055 |
|---|
| ETIM 9 | EC002055 |
|---|
Output Attributes
| Output Switching Mode | random voltage switching, random voltage switching |
|---|---|
| Output Voltage | 48...600 V AC |
| Solid State Output Type | random voltage switching, SCR output |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 285 A 16.6 ms300 A 20 ms |
|---|
Input Attributes
| Cos Phi | 0.5-0.5 (with maximum load) |
|---|
| Input Current Limits | 8-11 mA |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
