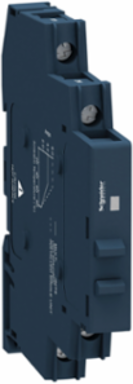

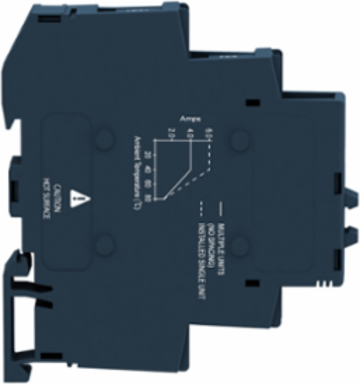

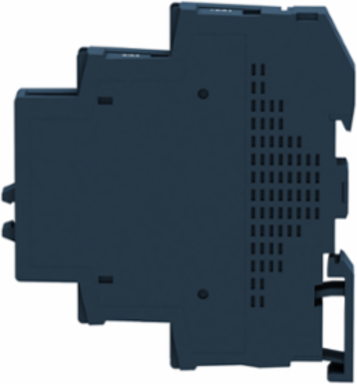

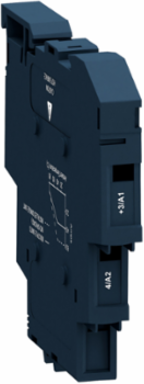

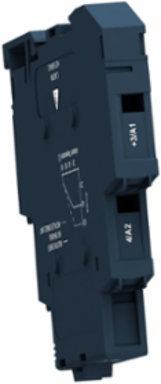

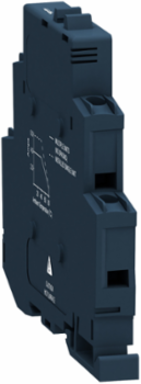

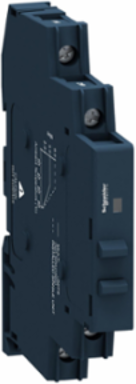

Schneider Electric SSM1A36BD Harmony Solid State Relay 6A 48-600V AC 4-32V DC DIN Rail Mount
- MPN: SSM1A36BD
- PPN: SCH-SSM1A36BD
CAD
$66.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States

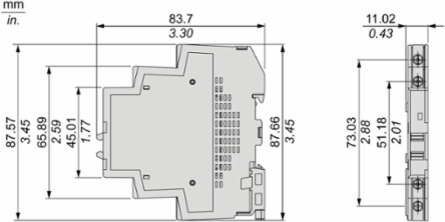

Depth83.7 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state
- Line Rated Current
- 6 A
- Maximum Leakage Current
- 0.1 mA off-state
- Minimum Switching Voltage
- 4 V DC turn-on
Absolute Maximum Voltage1200 V
Maximum Horse Power Rating0.16 hp 40 °C 240 V AC
Maximum Switching Voltage1 V DC turn-off
Rated Current6 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 4 kV AC for input/output, 4 kV AC for input or output to case
- Tightening Torque
- 0.5...0.8 N.m for input, 0.5...0.8 N.m for output
- Certificate Agency
- UL, CSA
- Connections - Terminals
- screw terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0064512171, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0008698469, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 8 kg CO2 eq., 7.5537094017
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1307069EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Control Type
- without test button
- Device Short Name
- SSM
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED (green) for input status
- Mounting Support
- symmetrical DIN rail
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- modular DIN rail relay
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Output Voltage 35
- 48...600 V AC
- Database Version
- 2017-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 15.4176
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 90.3 mm
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Package Weight(Lbs)
- 60.000 g
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 19.184
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Response Time0.5 cycle (turn-on), 0.5 cycle (turn-off)
Control Circuit Voltage4...32 V
[Uc] Control Circuit VoltageDC, 4...32 V
Maximum I²T For Fusing410 A².s for 10 ms at 50 Hz, 375 A².s for 8.33 ms at 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0118723007
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.5935414213
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Cos Phi0.5-0.5 (with maximum load)
Flame RetardanceV0 conforming to UL 94
Load Current0.15-6 A
MarkingCE
Number Of Channels1
Phase1 phase
Product Configuration Typerelay configuration
Range Of ProductHarmony Solid State Relays
Software VersionEIME v5.6
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Pep CodeENVPEP1307069EN
Pep Verification Date2017-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %75
Width Nominal11 mm
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]19.184
Customs Code8536490050
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-80 °C, -30-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 8.1664441877
- Environmental Disclosure
- ENVPEP1307069EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1307069EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-30-100 °C, -30-100 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1307069EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2017-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typemodular DIN rail relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Output Switching Mode
- zero voltage switching, zero voltage switching
- Output Voltage
- 48...600 V AC
Solid State Output Typezero voltage switching, SCR output
Surge Protection And Filtering Attributes
- Surge Current
- 285 A 16.6 ms300 A 20 ms
Input Attributes
- Cos Phi
- 0.5-0.5 (with maximum load)
Input Current Limits8-11 mA
Overview Attributes
- Device Presentation
- complete product
