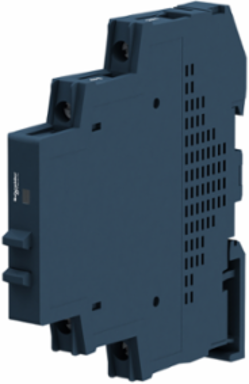

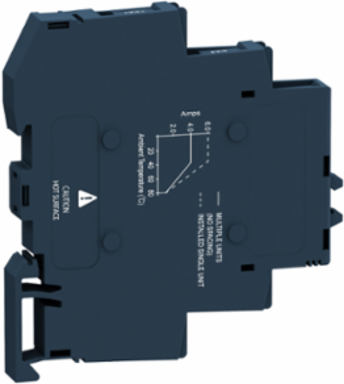

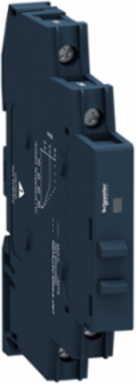

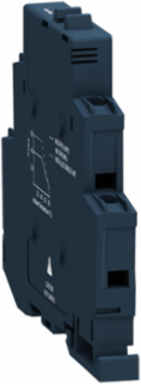

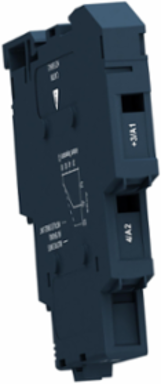

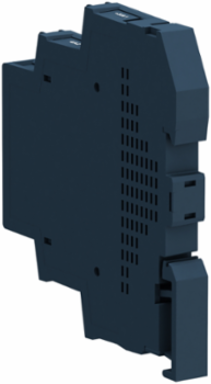

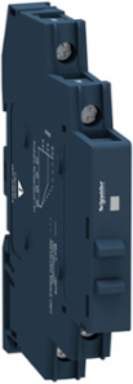

Schneider Electric SSM1A16BDR Harmony Solid State Relay, 6A, 24-280V AC, DIN Rail Mount

  • MPN: SSM1A16BDR
  • PPN: SCH-SSM1A16BDR
  • UNSPSC: 39122333
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $60.74

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.

    Features

    • Innovative and compact solution for industrial applications
    • Fast and precision control, high switching frequency
    • Reliable and silent switching
    • Robust in harsh environments
    • Resistance to shock and vibration
    • Free from contact contaminations
    • Maintenance free, fully electronic
    • IP20 degree of protection
    • UL 94-V0 flame retardance

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginMexico

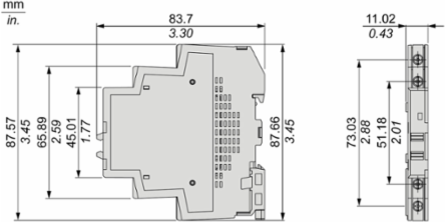

    Depth83.5 mm
    Weight50 g

    Complementary Attributes

    Maximum Voltage Drop<1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state
    Absolute Maximum Voltage600 V
    Maximum Horse Power Rating0.16 hp 40 °C 240 V AC
    Maximum Switching Voltage1 V DC turn-off
    Rated Current6 A
    Uc Control Circuit VoltageDC, 4...32 V
    Line Rated Current6 A
    Maximum Leakage Current0.1 mA off-state
    Minimum Switching Voltage4 V DC turn-on
    Ui Rated Insulation Voltage280 V

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Dielectric Strength4 kV AC for input/output, 4 kV AC for input or output to case
    Connections Terminalsscrew terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors
    Certificate AgencyUL, CSA
    Carbon Footprint Of The Distribution Phase A40.008386582253631725, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0011308009422850412, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
    Local Publishable Date2026-08-10
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1307069EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Control Typewithout test button
    Device Short NameSSM
    Insulation Resistance1000 MOhm at 500 V DC
    Local SignallingLED (green) for input status
    Mounting Supportsymmetrical DIN rail
    Overvoltage CategoryIII
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typemodular DIN rail relay
    Response Time0.5 cycle (turn-off)0.1 ms (turn-on)
    Software Versionv5.6
    Total Lifecycle Carbon Footprint0.8 kg CO2 eq.
    Database Version2023-02
    Height Nominal87.5 mm
    Dv/Dt500 V/µs off-state at maximum voltage
    Customs Code8536490055
    Packaging Weight In G15
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Recyclability Potential In %45
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Tightening Torque0.5...0.8 N.m for input, 0.5...0.8 N.m for output
    Control Circuit Voltage4...32 V
    Maximum I²T For Fusing410 A².s for 10 ms at 50 Hz, 375 A².s for 8.33 ms at 60 Hz
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.015433990969768357
    Carbon Footprint Of The Manufacturing Phase A1 To A30.8 kg CO2 eq., 0.7716038476639184
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Cos Phi0.5-0.5 (with maximum load)
    Flame RetardanceV0 conforming to UL 94
    Load Current0.15-6 A
    MarkingCE
    Number Of Channels1
    Phase1 phase
    Product Configuration Typerelay configuration
    Range Of ProductHarmony Solid State Relays
    ReturnabilityYes
    Sustainable PackagingYes
    Output Voltage 3524...280 V AC
    Data Sourceextrapolated product
    Width Nominal11 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit DescriptionThis range consists of SSM1 and SSM2 series designed for single and 2-phase with built-in heatsink and DIN rail mounting. The range provide with single and dual channel with 6A and 12A ratings. The range consist 12 and 18 mm width with input voltage range from 4 Vdc to 32 Vdc; output voltage range from 1 Vdc to 100 Vdc and 24 Vac to 600 Vac.
    Functional Unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh273.312

    Environment Attributes Main

    Ambient Air Temperature For Operation-30-80 °C, -30-80 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint0.7965552218296036
    Environmental Disclosure"ENVPEP1307069EN"
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Pep Code"ENVPEP1307069EN"
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-30-100 °C, -30-100 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1307069EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2017-04-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase1 phase
    Range Of ProductHarmony Solid State Relays
    Product Or Component Typemodular DIN rail relay

    ETIM

    ETIM 8EC002055
    ETIM 10EC002055
    ETIM 9EC002055

    Output Attributes

    Output Switching Moderandom voltage switching, random voltage switching
    Output Voltage24...280 V AC
    Solid State Output TypeSCR output, random voltage switching

    Surge Protection And Filtering Attributes

    Surge Current285 A 16.6 ms300 A 20 ms

    Input Attributes

    Cos Phi0.5-0.5 (with maximum load)
    Input Current Limits8-11 mA

    Overview Attributes

    Device Presentationcomplete product
    Harmony Solid State Relay, 6A, 24-280V AC, DIN Rail Mount
