Schneider Electric SSM1A112BDR single phase relay, Harmony Solid State Slim Relays, 12A, DIN rail mount, random swtching, input 4 to 32V DC, output 24 to 280V AC

single phase relay, Harmony Solid State Slim Relays, 12A, DIN rail mount, random swtching, input 4 to 32V DC, output 24 to 280V AC - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/1a6999bea83f3a8823303135ed4011deaf5fc36d-medium.png

single phase relay, Harmony Solid State Slim Relays, 12A, DIN rail mount, random swtching, input 4 to 32V DC, output 24 to 280V AC

Schneider Electric SSM1A112BDR single phase relay, Harmony Solid State Slim Relays, 12A, DIN rail mount, random swtching, input 4 to 32V DC, output 24 to 280V AC

MPN: SSM1A112BDR
PPN: SCH-SSM1A112BDR

Spec sheet

Compare

Loading compare button...

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$70.62/ EA

Qty:

Loading add to cart quantity...

Description

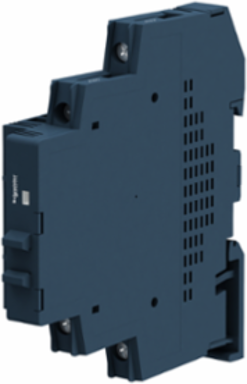

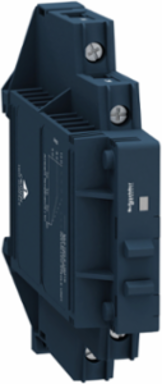

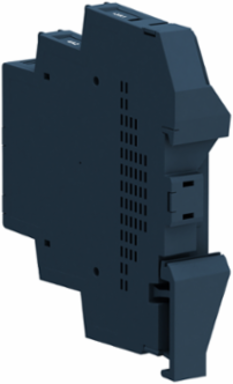

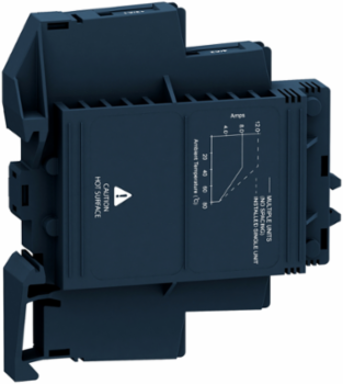

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0

Specifications

Environment

Product Certifications: UL || CSA

Standards: IEC 60950-1 || IEC 61000 || IEC 62314

Dielectric Strength: 4 kV AC input/output || 4 kV AC input or output to case

Ip Degree Of Protection: IP20

Ambient Air Temperature For Storage: -30-100 °C

Ambient Air Temperature For Operation-30-80 °C

Pollution Degree2

MarkingCE

Flame RetardanceV0 UL 94

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1307069EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity Profile: ENVEOLI1307069EN

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

China Rohs RegulationX

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Cos Phi: 0.5-0.5 with maximum load)

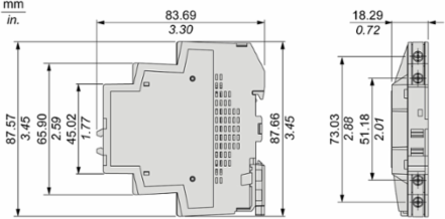

Height: 90.3 mm

Motor Power Hp: 0.33 hp 40 °C 240 V AC

Insulation Resistance: 1000 MOhm 500 V DC

Maximum I²T For Fusing: 2560 A².s 10 ms 50 Hz || 2330 A².s 8.33 ms 60 Hz

Connections - Terminals: screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output

Response Time: 0.5 cycle turn-off)

Net Weight: 0.09 kg

Maximum Leakage Current: 0.1 mA off-state

Dv/Dt: 500 V/µs off-state at maximum voltage

Maximum Switching Voltage: 1 V DC turn-off

Capacitance Unbalance: 10 pF input/output

Width: 18 mm

Overvoltage Category: III

[Uc] Control Circuit Voltage4...32 V DC

Output Voltage24...280 V AC

Tightening Torque0.5...0.8 N.m input || 0.5...0.8 N.m output

Mounting Supportsymmetrical DIN rail

Maximum Voltage Drop<1.3 V on-state

Surge Current715 A 16.6 ms || 750 A 20 ms

Load Current0.15-12 A

Minimum Switching Voltage4 V DC turn-on

Absolute Maximum Voltage600 V

Local Signallinginput status LED green)

Solid State Output TypeSCR output || random voltage switching

[In] Rated Current12 A

Input Current Limits9-11 mA

Depth83.7 mm

Specifications

Range Of Product: Harmony Solid State Relays

Product Or Component Type: solid state relay up to 20 A

Number Of Channels: 1

Output Switching Moderandom voltage switching

Network Number Of Phases1 phase

Device Short NameSSM
