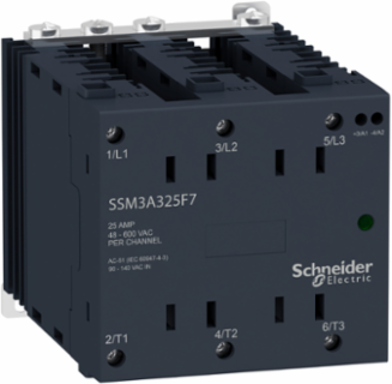

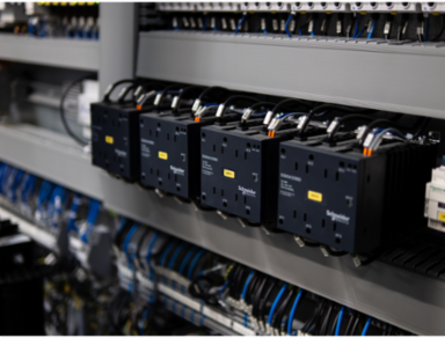

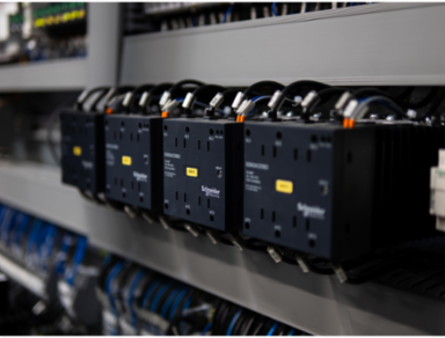

Schneider Electric SSM3A325BDR Solid state modular relay, Harmony, 25A, DIN rail mount, random switching, input 4…32V DC, output 48…600V AC

Solid state modular relay, Harmony, 25A, DIN rail mount, random switching, input 4…32V DC, output 48…600V AC
  • MPN: SSM3A325BDR
  • PPN: SCH-SSM3A325BDR

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$275.60/ EA

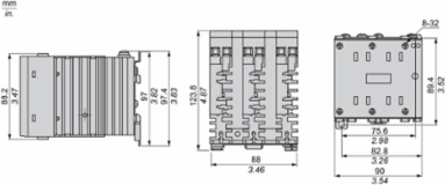

    Description

    Solid state modular relay, Harmony, 25A, DIN rail mount, random switching, input 4…32V DC, output 48…600V AC

    Specifications

    Environment

    Product Certifications
    UL || EAC || CSA
    Standards
    UL 508 || IEC 60950-1 || CSA C22.2 No 14
    Dielectric Strength
    4 kV AC input/output || 4 kV AC input or output to case
    Ip Degree Of Protection
    IP20
    Ambient Air Temperature For Operation-20-80 °C
    Pollution Degree2
    MarkingCSA || EAC || CE || UL
    Ambient Air Temperature For Storage-40-100 °C

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1508007EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity Profile
    ENVEOLI1508007EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Cos Phi
    0.5-0.5 with maximum load)
    Output Voltage
    48...600 V AC
    Tightening Torque
    0.6...0.7 N.m input || 1.36...1.7 N.m output
    Mounting Support
    symmetrical DIN rail
    Maximum Voltage Drop
    <1.35 V on-state
    Surge Current
    286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz
    Load Current
    0.1-25 A
    Maximum Leakage Current
    0.25 mA off-state
    Dv/Dt
    500 V/µs off-state at maximum voltage
    Solid State Output Type
    random voltage switching
    [In] Rated Current
    25 A
    Input Current Limits
    22-28 mA
    [Uc] Control Circuit Voltage4...32 V DC
    Motor Power Hp1 hp 40 °C 240 V AC || 2 hp 40 °C 380 V AC || 3 hp 40 °C 480 V AC
    Insulation Resistance1000 MOhm
    Maximum I²T For Fusing410 A².s 10 ms 50 Hz || 374 A².s 8.3 ms 60 Hz
    Connections - Terminalsscrew terminals 0.2...1.3 mm², AWG 24...AWG 16) input || screw terminals 1.3...5.3 mm², AWG 16...AWG 10) output
    Response Time0.5 cycle turn-off) || 0.02 ms turn-on)
    Net Weight0.74 kg
    Absolute Maximum Voltage1100 V
    Local Signallinginput status LED green)
    Capacitance Unbalance8 pF input/output
    Switching Voltage4 V DC turn-on || 1 V DC turn-off
    Overvoltage CategoryIII

    Specifications

    Range Of Product
    Harmony Solid State Relays
    Product Or Component Type
    solid state relay up to 30 A
    Number Of Channels
    3
    Output Switching Moderandom voltage switching
    Network Number Of Phases3 phases
    Device Short NameSSM3
