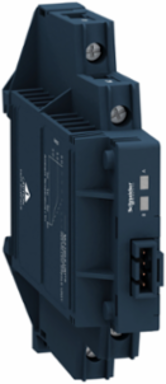

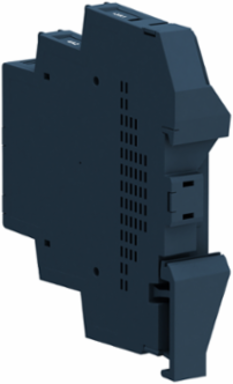

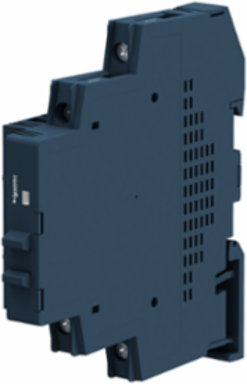

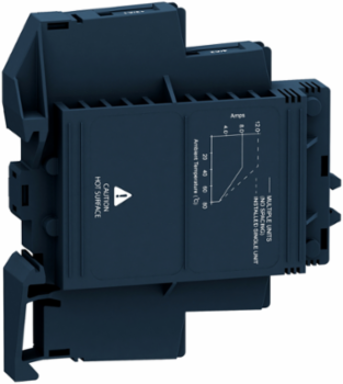

Schneider Electric SSM2A16BD Harmony Solid State Relay, 6A, 24-280V AC, DIN Rail Mount, Zero Voltage Switching
- MPN: SSM2A16BD
- PPN: SCH-SSM2A16BD
CAD
$85.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony SSM solid state modular DIN rail dual channel relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico, United States |
|---|

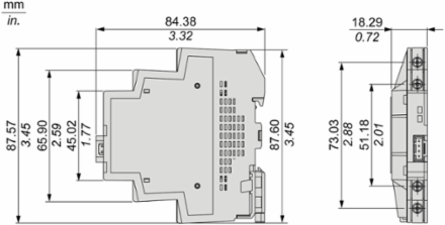

| Depth | 84.4 mm |
|---|
Complementary Attributes
| Maximum Voltage Drop | <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state |
|---|---|
| Line Rated Current | 6 A |
| Maximum Leakage Current | 0.1 mA off-state |
| Minimum Switching Voltage | 4 V DC turn-on |
| Absolute Maximum Voltage | 600 V |
|---|---|
| Maximum Horse Power Rating | 0.16 hp 40 °C 240 V AC |
| Maximum Switching Voltage | 1 V DC turn-off |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 2.5 kV AC for input/output, 2.5 kV AC for input or output to case |
| Tightening Torque | 0.5...0.8 N.m for input, 0.5...0.8 N.m for output |
| [Uc] Control Circuit Voltage | DC, 4...32 V |
| Maximum I²T For Fusing | 2560 A².s for 10 ms at 50 Hz, 2330 A².s for 8.33 ms at 60 Hz |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1307069EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Control Type | without test button |
| Device Short Name | SSM |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Local Signalling | LED (green) for input status |
| Mounting Support | symmetrical DIN rail |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | modular DIN rail relay |
| Returnability | Yes |
| Pep Code | ENVPEP1307069EN |
| Width Nominal | 18 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490055 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Response Time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Certificate Agency | CSA, UL |
| Connections - Terminals | screw terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Flame Retardance | V0 conforming to UL 94 |
| Load Current | 0.15-6 A |
| Marking | CE |
| Number Of Channels | 2 |
| Phase | 1 phase |
| Product Configuration Type | relay configuration |
| Range Of Product | Harmony Solid State Relays |
| Sustainable Packaging | Yes |
| Height Nominal | 90.3 mm |
| Dv/Dt | 500 V/µs off-state at maximum voltage |
| Package Weight(Lbs) | 98.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -30-80 °C, -30-80 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1307069EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -30-100 °C, -30-100 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1307069EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1307069EN |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Harmony Solid State Relays |
| Product Or Component Type | modular DIN rail relay |
|---|
ETIM
| ETIM 8 | EC002055 |
|---|
| ETIM 9 | EC002055 |
|---|
Output Attributes
| Solid State Output Type | SCR output, zero voltage switching |
|---|---|
| Output Voltage | 24...280 V AC |
| Output Switching Mode | zero voltage switching |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 715 A 16.6 ms750 A 20 ms |
|---|
Input Attributes
| Cos Phi | 0.5-0.5 (with maximum load) |
|---|
| Input Current Limits | 14-16.87 mA |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
